Home > products > Hybrid Stepper Motor > 57*57*50mm NEME 23 Stepping Motor 0.7A 0.9N With CNC Machine

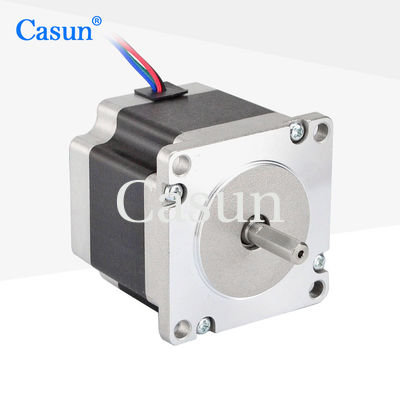

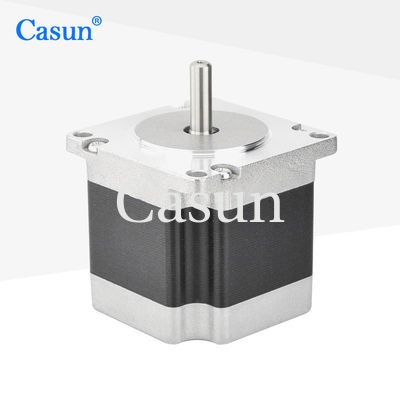

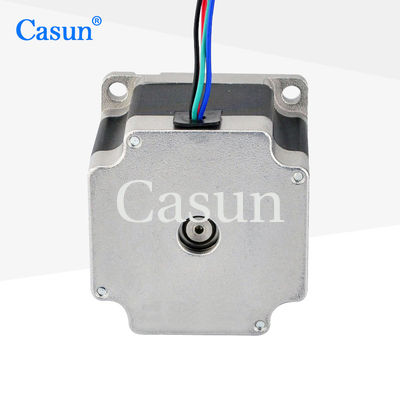

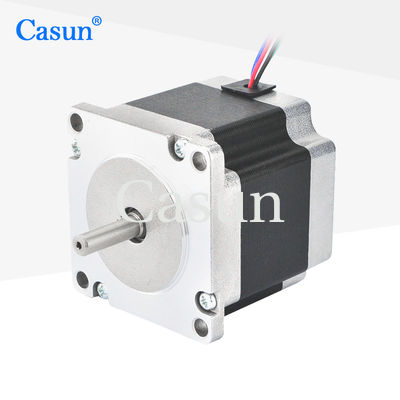

57*57*50mm NEME 23 Stepping Motor 0.7A 0.9N With CNC Machine
57*57*50mm NEME 23 Stepping Motor 0.7A 0.9N With CNC Machine
57*57*50mm NEME 23 Stepping Motor 0.7A 0.9N With CNC Machine
57*57*50mm NEME 23 Stepping Motor 0.7A 0.9N With CNC Machine
57*57*50mm NEME 23 Stepping Motor 0.7A 0.9N With CNC Machine
57*57*50mm NEME 23 Stepping Motor 0.7A 0.9N With CNC Machine

57*57*50mm NEME 23 Stepping Motor 0.7A 0.9N With CNC Machine

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 57SHD4203-21B

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $3.14-$5

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
High Light:

NEME 23 Stepping Motor 0.7A

,

NEME 23 Stepping Motor

,

NEMA 23 Stepper Motor

Step Angel:
1.8°
Holding Torque:
900mN.m
Current:
0.7A
Motor Length:
50mm
Shaft:
Milling Flat Shaft 21mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
900mN.m
Current:
0.7A
Motor Length:
50mm
Shaft:
Milling Flat Shaft 21mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

Being able to quickly respond to control signals makes it widely used in situations that require rapid response.

3D printers, CNC machine tools, automated production lines, and industrial robots.



Features:

  • High torque and high precision

  • For high-tech industry and electronic industry equipment

  • Customized service offerings

  • Our engineers will reach out within 48 hours to offer the optimal solution

  • Ten-year warranty for confident purchasing

Appearance

57*57*50mm NEME 23 Stepping Motor 0.7A 0.9N With CNC Machine 0

Dimensions

57*57*50mm NEME 23 Stepping Motor 0.7A 0.9N With CNC Machine 1

Motor Specifications



Step Angel

1.8 °

Fram Size

57 mm

Number of Phase

2 Phase

Rated Current

0.7 A

Holding Torque

900 mN.m

Resistance

12 ohm

Inductance

40 mH

Rotor Inertia

220 g-cm²

Motor weight

0.55 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A



Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
57*57*50mm NEME 23 Stepping Motor 0.7A 0.9N With CNC Machine 2 57*57*50mm NEME 23 Stepping Motor 0.7A 0.9N With CNC Machine 3 57*57*50mm NEME 23 Stepping Motor 0.7A 0.9N With CNC Machine 4 57*57*50mm NEME 23 Stepping Motor 0.7A 0.9N With CNC Machine 5



Please click the "Get a quote" button below to tell us your requirements.
