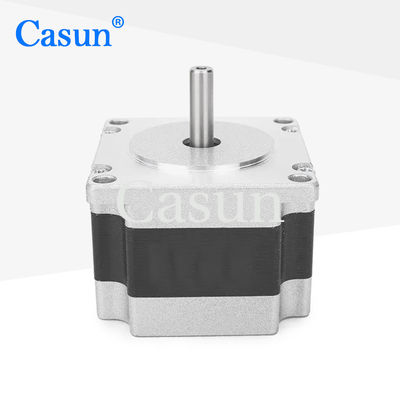

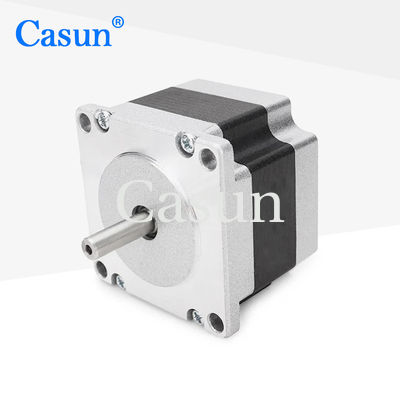

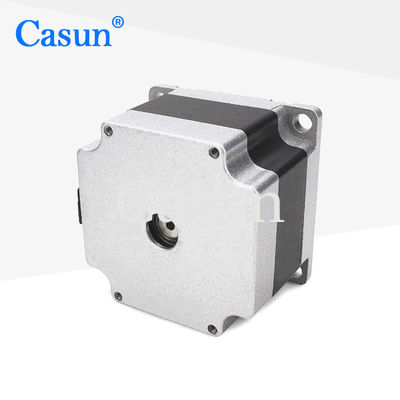

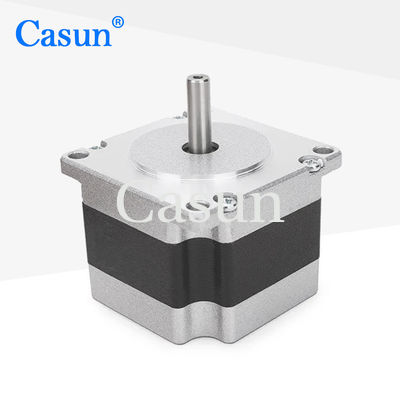

Nema 23 DC Stepper Motor Low Noise For Laser Marking Machine
Nema 23 DC Stepper Motor Low Noise For Laser Marking Machine
Nema 23 DC Stepper Motor Low Noise For Laser Marking Machine
Nema 23 DC Stepper Motor Low Noise For Laser Marking Machine
Nema 23 DC Stepper Motor Low Noise For Laser Marking Machine
Nema 23 DC Stepper Motor Low Noise For Laser Marking Machine
Nema 23 DC Stepper Motor Low Noise For Laser Marking Machine

Nema 23 DC Stepper Motor Low Noise For Laser Marking Machine

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 57SHD0036-21M

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $3.14-$5

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
High Light:

Nema 23 DC Stepper Motor

,

Low Noise DC Stepper Motor

Step Angel:
1.8°
Holding Torque:
0.4N.m
Current:
0.7A
Motor Length:
41mm
Shaft:
Round Shaft 21mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
0.4N.m
Current:
0.7A
Motor Length:
41mm
Shaft:
Round Shaft 21mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

High precision and speed enable it to quickly complete various complex machining operations.

Widely used in situations that require high-speed operation, such as automated production lines, assembly lines, etc.



Features:

  • High torque and high precision

  • Each stepper motor model is suitable for diverse scenarios

  • Focused on drivetrain solutions

  • Established in China for 12 years and has served more than 800 customers

  • High torque and high precision

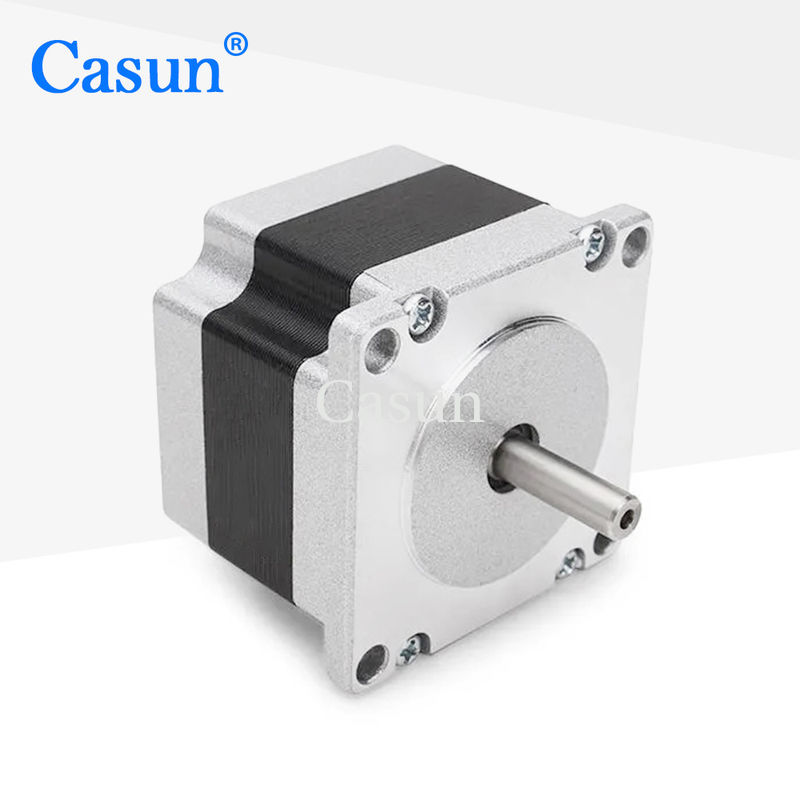

Appearance

Nema 23 DC Stepper Motor Low Noise For Laser Marking Machine 0

Dimensions

Nema 23 DC Stepper Motor Low Noise For Laser Marking Machine 1

Motor Specifications



Step Angel

1.8 °

Fram Size

57 mm

Number of Phase

2 Phase

Rated Current

0.7 A

Holding Torque

0.4 N.m

Resistance

8.0 ohm

Inductance

13.5 mH

Rotor Inertia

135 g-cm²

Motor weight

0.42 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A



Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
Nema 23 DC Stepper Motor Low Noise For Laser Marking Machine 2 Nema 23 DC Stepper Motor Low Noise For Laser Marking Machine 3 Nema 23 DC Stepper Motor Low Noise For Laser Marking Machine 4 Nema 23 DC Stepper Motor Low Noise For Laser Marking Machine 5



Please click the "Get a quote" button below to tell us your requirements.
