2 Phase 1.8° 57 NEMA 23 Stepper Motor 41MM Body 1.0A Engraving Machine

2 Phase 1.8° 57 NEMA 23 Stepper Motor 41MM Body 1.0A Engraving Machine

Brand Name:	Casun
Model Number:	57SHD0025-25M
MOQ:	1PC
Price:	$3.14-$5
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Step Angel:

1.8°

Holding Torque:

0.60N.m

Current:

1.0A

Motor Length:

41mm

Shaft:

Round Shaft 25mm Length

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

2 Phase NEMA 23 Stepper Motor

41MM Body NEMA 23 Stepper Motor

Product Description

2 Phase 1.8° 57 NEMA 23 Stepper Motor 41MM Body 1.0A Engraving Machine

The 57mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution. Choose a baseline version or request your own customized configuration.

Key Features

High torque and high precision
Wanted dealers!
Multiple international certifications
Established in China for 12 years with over 800 customers served

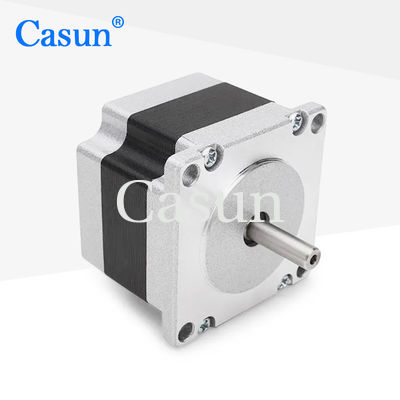

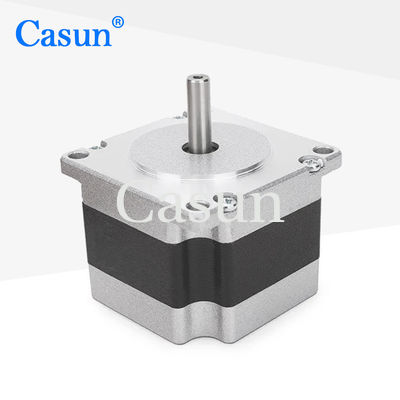

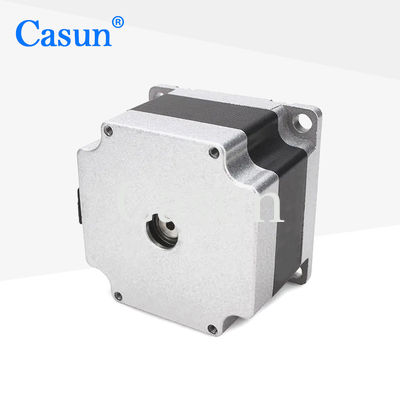

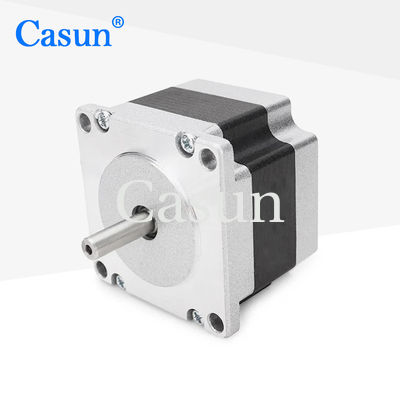

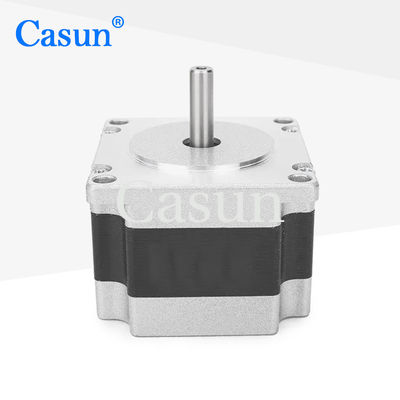

Appearance

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	57 mm
Number of Phase	2 Phase
Rated Current	1.0 A
Holding Torque	0.6 N.m
Resistance	5.8 ohm
Inductance	14 mH
Rotor Inertia	135 g-cm²
Motor Weight	0.42 kg
Number of Leads	4
Connection	Bipolar

Operating Specifications

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Available Models

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
57SHD4013-21B	0.6 N.m	1.8°	41 mm	D Shaft-21 mm	1.0 A
57SHD4415-21B	1.1 N.m	1.8°	54 mm	D Shaft-21 mm	3.0 A
57SHD4816-21B	2.0 N.m	1.8°	76 mm	D Shaft-21 mm	3.0 A
57SHD4913-21B	2.5 N.m	1.8°	83 mm	D Shaft-21 mm	3.0 A
57SHD4934-20B	3.0 N.m	1.8°	100 mm	D Shaft-20 mm	3.0 A

Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Encoder

Brake

Gearbox

Shaft

Please click the "Get a quote" button below to tell us your requirements.
