GUANGZHOU FUDE ELECTRONIC TECHNOLOGY CO.,LTD Company Profile
products
Home > products > Close Loop Stepper Motor > CNC Closed Loop Stepper Motor With Encoder 800mN.M NEMA 24 3 Phase 1.5A
CNC Closed Loop Stepper Motor With Encoder 800mN.M NEMA 24 3 Phase 1.5A
CNC Closed Loop Stepper Motor With Encoder 800mN.M NEMA 24 3 Phase 1.5A
CNC Closed Loop Stepper Motor With Encoder 800mN.M NEMA 24 3 Phase 1.5A
CNC Closed Loop Stepper Motor With Encoder 800mN.M NEMA 24 3 Phase 1.5A
CNC Closed Loop Stepper Motor With Encoder 800mN.M NEMA 24 3 Phase 1.5A
CNC Closed Loop Stepper Motor With Encoder 800mN.M NEMA 24 3 Phase 1.5A

CNC Closed Loop Stepper Motor With Encoder 800mN.M NEMA 24 3 Phase 1.5A

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 60SHF0504-24Q

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $3.14-$5

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
High Light:

CNC Closed Loop Stepper Motor

,

Closed Loop Stepper Motor With Encoder

,

Closed Loop Stepper Motor 1.5A

Step Angel:
1.2°
Holding Torque:
800mN.m
Current:
1.5A
Motor Length:
58mm
Shaft:
Round Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.2°
Holding Torque:
800mN.m
Current:
1.5A
Motor Length:
58mm
Shaft:
Round Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

Casun Stepper Motor with Encoder 800mN.m NEMA 24 3 Phase 1.5A Closed Loop Stepper Motor for CNC



NEMA 24 Steppper Motor with Magnetic Encoder 60*60*58mm 1.5A

The 60mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • High torque and high precision

  • For high-tech industry and electronic industry equipment

  • Available in single or double shaft versions

  • Established in China for 12 years and has served more than 800 customers.

  • Professional research and development manufacturing

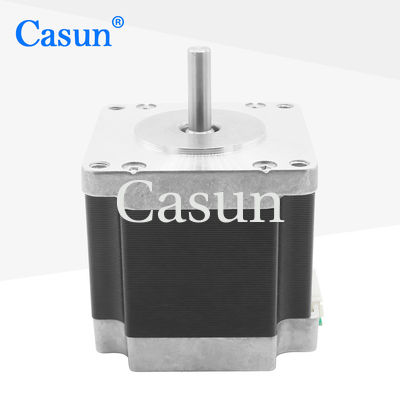

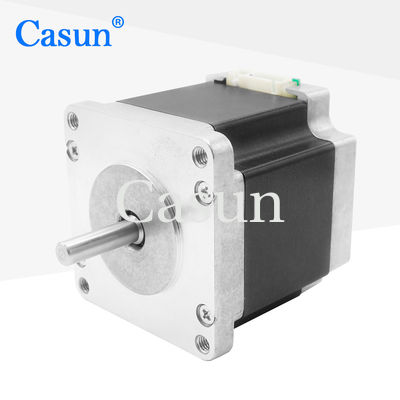

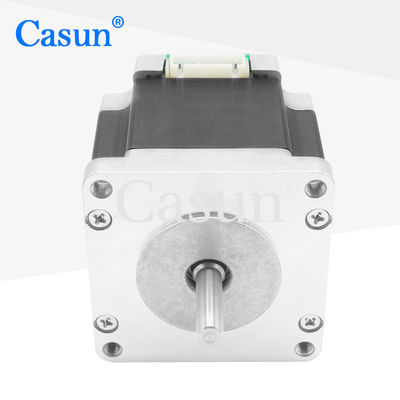

Appearance

CNC Closed Loop Stepper Motor With Encoder 800mN.M NEMA 24 3 Phase 1.5A 0

Dimensions

CNC Closed Loop Stepper Motor With Encoder 800mN.M NEMA 24 3 Phase 1.5A 1

Motor Specifications



Step Angel

1.2 °

Fram Size

60 mm

Number of Phase

3 Phase

Rated Current

1.5 A

Holding Torque

800 mN.m

Resistance

3.6 ohm

Inductance

7.0 mH

Rotor Inertia

260 g-cm²

Motor weight

0.6 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves









Submodels

Model Holding
Torque		 Rated
Current		 Resistance
per phase		 Inductance
per phase		 Detent
torque		 Rotor
inertia		 Lead
wire		 Motor
length
mN.m A Ω mH mN.m g.cm² No. mm
60SHD4201 650 0.6 15 20 50 280 4 45
60SHD4401 1500 2.8 1 3.3 70 450 4 56
60SHD4601 3200 4.2 0.75 3.7 120 580 4 86
60SHD6602 2500 3 1.55 3.7 120 580 4





















Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
CNC Closed Loop Stepper Motor With Encoder 800mN.M NEMA 24 3 Phase 1.5A 2 CNC Closed Loop Stepper Motor With Encoder 800mN.M NEMA 24 3 Phase 1.5A 3 CNC Closed Loop Stepper Motor With Encoder 800mN.M NEMA 24 3 Phase 1.5A 4 CNC Closed Loop Stepper Motor With Encoder 800mN.M NEMA 24 3 Phase 1.5A 5



Please click the "Get a quote" button below to tell us your requirements.
