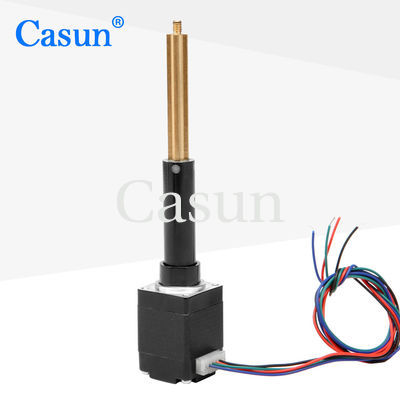

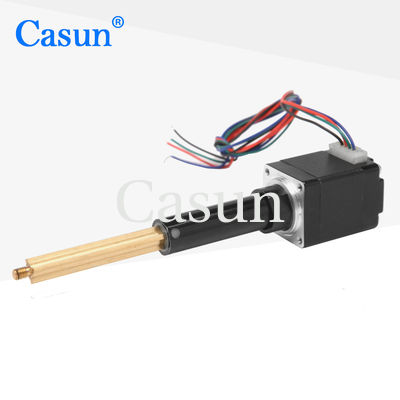

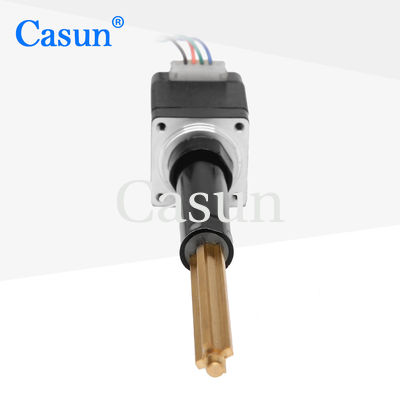

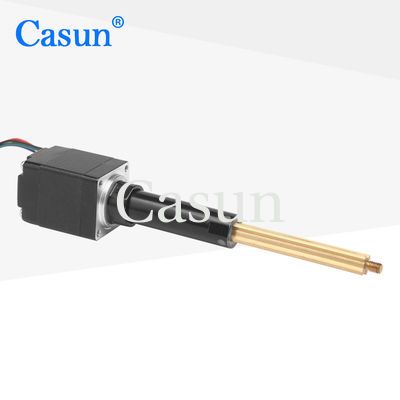

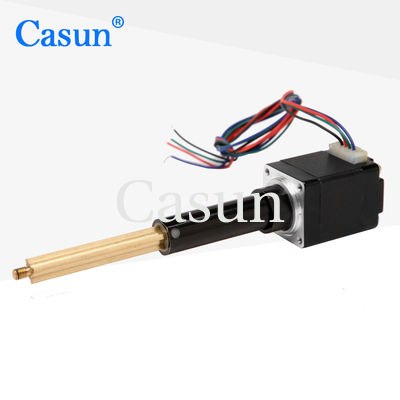

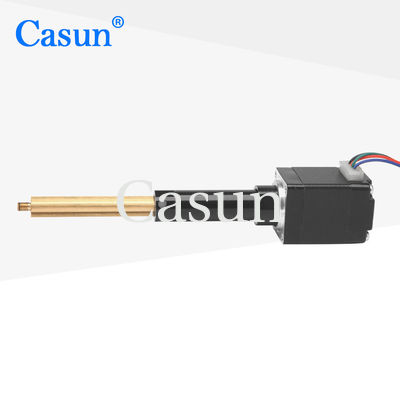

Black Lead Screw Stepper Motor Linear Actuator NEMA 11 Helical Pitch 38.1mm For Dispenser

Black Lead Screw Stepper Motor Linear Actuator NEMA 11 Helical Pitch 38.1mm For Dispenser

NEMA 11 Lead Screw Stepper Motor

38.1mm Pitch Lead Screw Stepper Motor

Place of Origin:

CHINA

Brand Name:

Casun

Certification:

CE,ROHS,ISO

Model Number:

B20SHD4353-C38L

Contact Us

Request A Quote
Product Details
Color:
Black
Current:
0.24Amp
Holding Torque:
0.5kg At 600pps
Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
$35.94 - 42.94
Packaging Details
Carton:38x29xc14m
Delivery Time
7-15 days
Payment Terms
D/A, T/T, L/C, D/P
Supply Ability
40000+PCS+Month
RELATED PRODUCTS
Contact Us
86-020-36907671
Contact Now
Product Description

Casun stepper motor linear actuator NEMA 11 helical pitch 38.1mm Stepper Motor With Lead Screw For Dispenser

Nema 11 Stepper motor linear actuator 5.28Vdc 0.24Amp 0.5kg at 600pps 0.1kg linear stepper motor for dispenser



NEMA17 Ball stepper motor with lead screw holding torque 280mN.m 0.2kg tr8*8 for CNC

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

Black Lead Screw Stepper Motor Linear Actuator NEMA 11 Helical Pitch 38.1mm For Dispenser 0







Motor Specifications



Step Angel



1.8 °

Fram Size



28mm

Number of Phase



2 Phase

Rated Current



0.24Amp

Holding Torque



0.5kg at 600pps

Resistance



22ohm

Inductance



6.0mH

Rotor Inertia



2g-cm²

Motor weight



0.1kg

Lead Screw



Tr3.5X4

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N







Torque Curves





Submodels



Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Body Length Diameter of Screw Pitch Length of Screw
20 mm

34 mm

40 mm

48 mm

60 mm


5 2 20-1000 mm
8
6.35 1.27
3.175
6.35
6.5 3
6.35
8 1
2
4
8
12



Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft
