Closed Loop Stepper HBS860H NEMA 34 Step Motor Driver For Stepper Motor With Encoder

Name: Closed Loop Stepper HBS860H NEMA 34 Step Motor Driver For Stepper Motor With Encoder
Brand: GUANGZHOU FUDE ELECTRONIC TECHNOLOGY CO.,LTD
SKU: HBS860H
Price: 4.00 USD
Availability: InStock

Brand Name:	Casun
Model Number:	HBS860H
MOQ:	1pc
Price:	$3-$6
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	5000pcs+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

38X29X18cm

Highlight:

NEMA 34 Step Motor Driver

HBS860H Step Motor Driver

Product Description

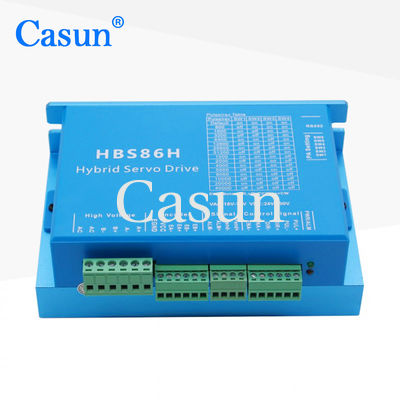

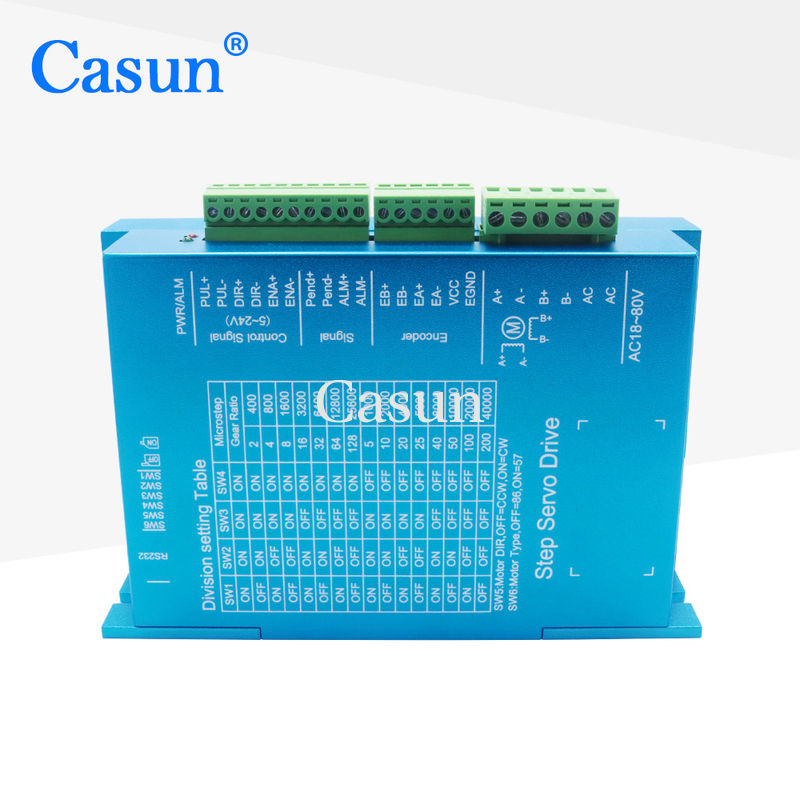

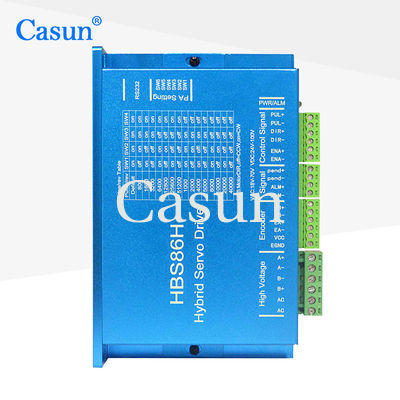

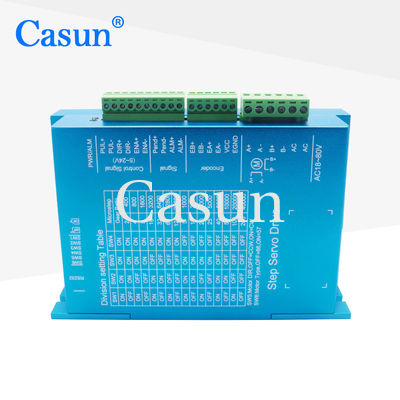

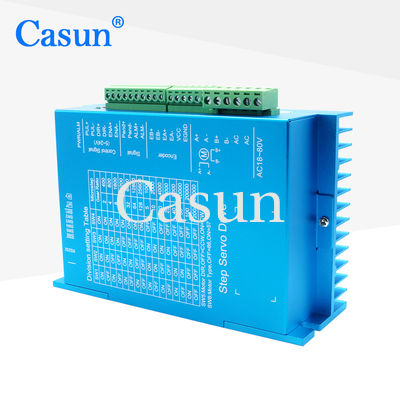

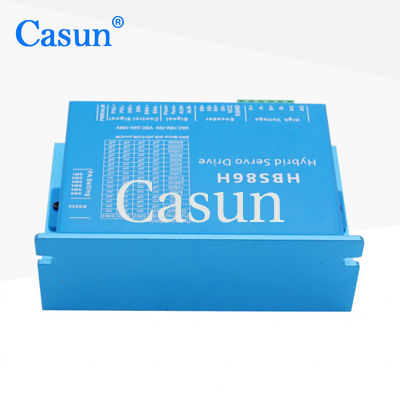

Closed Loop Stepper HBS860H NEMA 34 Step Motor Driver For Stepper Motor With Encoder

Casun Closed Loop Stepper HBS860H Driver NEMA 34 Step Motor Driver for stepper motor with encoder. HBS860H Hybrid Servo Driver 1000RPM 86 Series Closed Loop Stepper Motor Driver. 20-70V AC or 30-100V DC Smooth Running NEMA 34 Closed-Loop Servo & Stepper Motor Driver HBS860H.

Product Name	HBS860H
Size	151×97×105mm
Supply Voltage	18-70VDC / 24-100VDC
Output Current	0-8.2A
Subdivision Range	400-51200ppr
Pulse Frequency	0-200KHz
Encoder Current	50mA
Adapted Motor	NEMA 23/24/34 series 1000 line encoder two-phase closed loop stepper motor
Product Weight	570g

Specifications

Voltage: AC20-75V, DC 30-100V

Segments: Up to 256 Segments (Can be arbitrarily set)

Rated Speed: 1000 RPM

Compatible Encoder Line: 1000 Lines

Suitable For: 86 Series Closed Loop Stepper Motor

Features

Can drive 57-86 series two-phase closed-loop stepper motors
Using 32-bit motor control dedicated dual-core DSP chip
Vector current and closed loop control algorithm of speed and position are adopted
The ratio of quiescent current and dynamic current can be set arbitrarily
Subdivision 16 file settings (400-51200)
Optocoupler isolated differential signal input
Impulse response frequency up to 200KHz
Protection functions such as overcurrent, overvoltage, overspeed, tracking error, etc.
Support command control mode
Integrated RS232 communication function, support PC-side debugging parameters
