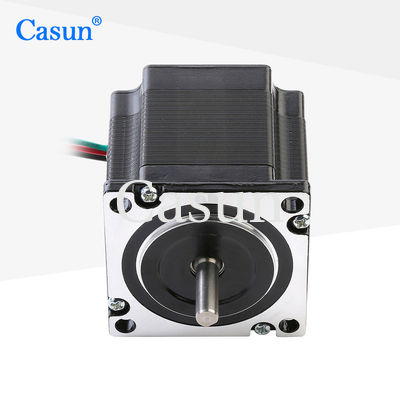

NEMA 23 Hybrid Stepper Motor 2 Phase High Torque 1.16N.m 1.8 Degree 23HS22-1504S

name

NEMA 23 Hybrid Stepper Motor 2 Phase High Torque 1.16N.m 1.8 Degree 23HS22-1504S

Brand Name: Casun
Model Number: 57SHD4449-21BH
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
1.16N.m
Current:
1.5A
Motor Length:
54mm
Shaft:
Milling Flat Shaft 21mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

NEMA 23 Hybrid Stepper Motor

,

High Torque 1.16N.m Hybrid Stepper Motor

Product Description

The 57mm stepper motor is a digital motor that can be controlled by controlling the frequency and width of current pulses.

Fast rotation and accurate speed control can be achieved through step-by-step control.



Features:

  • High torque and high precision

  • Professional drivetrain solution specialist

  • Our engineers will contact you within 48 hours to offer the optimal solution

  • Having operated in China for 12 years, we have served over 800 customers

  • Offer custom services



Motor Specifications



Step Angel

1.8 °

Fram Size

57 mm

Number of Phase

2 Phase

Rated Current

1.5 A

Holding Torque

1.16 N.m

Resistance

3.6 ohm

Inductance

13 mH

Rotor Inertia

260 g-cm²

Motor weight

0.6 kg

Number of leads

4

Connection

Bipolar

Appearance

NEMA 23 Hybrid Stepper Motor 2 Phase High Torque 1.16N.m 1.8 Degree 23HS22-1504S 0

Dimensions

NEMA 23 Hybrid Stepper Motor 2 Phase High Torque 1.16N.m 1.8 Degree 23HS22-1504S 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A



Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
NEMA 23 Hybrid Stepper Motor 2 Phase High Torque 1.16N.m 1.8 Degree 23HS22-1504S 2 NEMA 23 Hybrid Stepper Motor 2 Phase High Torque 1.16N.m 1.8 Degree 23HS22-1504S 3 NEMA 23 Hybrid Stepper Motor 2 Phase High Torque 1.16N.m 1.8 Degree 23HS22-1504S 4 NEMA 23 Hybrid Stepper Motor 2 Phase High Torque 1.16N.m 1.8 Degree 23HS22-1504S 5



Please click the "Get a quote" button below to tell us your requirements.



Tags:

2 Phase Bipolar Stepper Motor

Nema 6 Bipolar Stepper Motor

NEMA 23 Hybrid Stepper Motor
