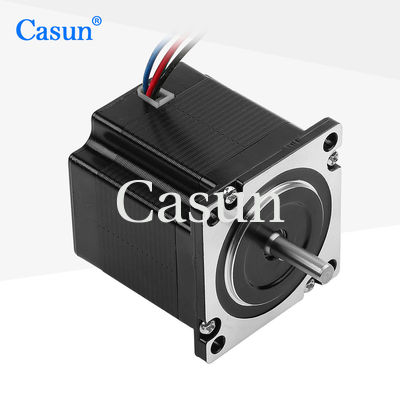

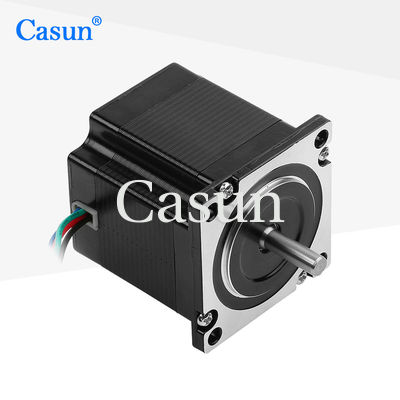

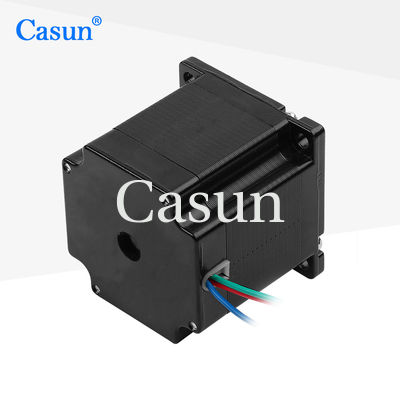

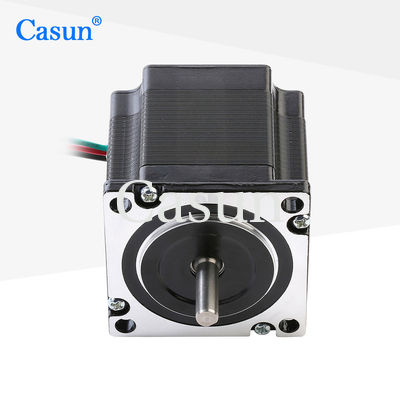

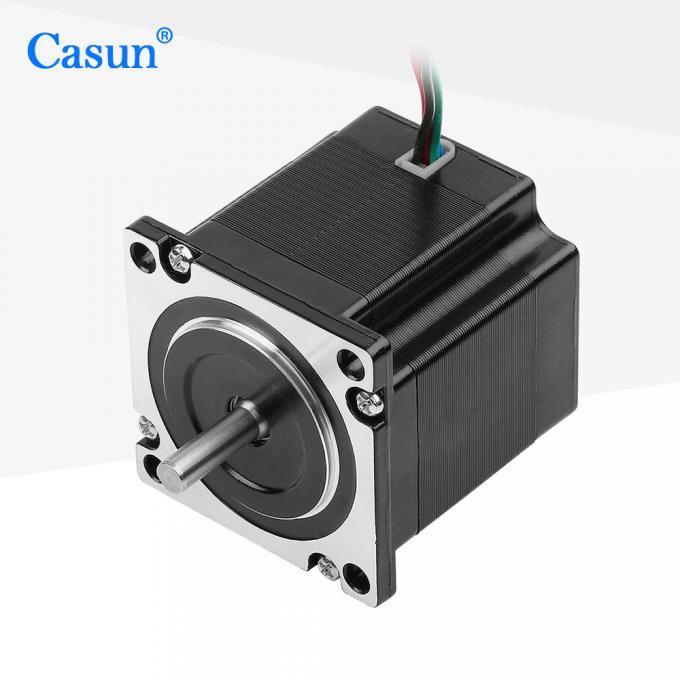

57*57*54mm Stepping Motor 2 Phase NEMA 23 2.3V 3.0A For 3 Axsis 4 Axsis CNC Kit

57*57*54mm Stepping Motor 2 Phase NEMA 23 2.3V 3.0A for 3 Axsis 4 Axsis CNC Kit

The 57mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.

Features:

• High torque and high precision

• Professional drivetrain solution specialist

• Our engineers will be in touch within 48 hours to provide the best solution

• We offer custom services and accept contract manufacturing

• High torque and high precision

Motor Specifications

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
