GUANGZHOU FUDE ELECTRONIC TECHNOLOGY CO.,LTD Company Profile
products
Home > products > Hybrid Stepper Motor > 1.8 Degree Nema 23 Stepper Motor 54m For Cnc Kit Wit Certification Equipment

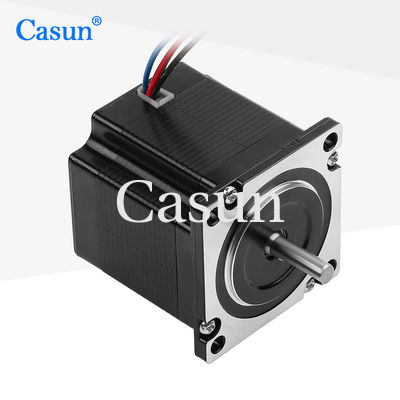

1.8 Degree Nema 23 Stepper Motor 54m For Cnc Kit Wit Certification Equipment
1.8 Degree Nema 23 Stepper Motor 54m For Cnc Kit Wit Certification Equipment
1.8 Degree Nema 23 Stepper Motor 54m For Cnc Kit Wit Certification Equipment
1.8 Degree Nema 23 Stepper Motor 54m For Cnc Kit Wit Certification Equipment
1.8 Degree Nema 23 Stepper Motor 54m For Cnc Kit Wit Certification Equipment
1.8 Degree Nema 23 Stepper Motor 54m For Cnc Kit Wit Certification Equipment

1.8 Degree Nema 23 Stepper Motor 54m For Cnc Kit Wit Certification Equipment

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 57SHD4411-21BH

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $3.14-$5

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
High Light:

1.8 Degree Nema 23 Stepper Motor

,

54mm Nema 23 Stepper Motor

Step Angel:
1.8°
Holding Torque:
1.0N.m
Current:
1.0A
Motor Length:
54mm
Shaft:
Milling Flat Shaft 21mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
1.0N.m
Current:
1.0A
Motor Length:
54mm
Shaft:
Milling Flat Shaft 21mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

Due to the lack of complex mechanical conversion components, maintenance is simple and the service life is long.

Suitable for various applications, such as automation equipment, precision positioning systems, robots, electronic devices, etc.



Features:

  • High torque and high precision

  • Professional drivetrain solution specialist

  • Our engineers will be in touch within 48 hours to provide the best solution

  • Every stepper motor model is adaptable to various applications

  • Provide bespoke services

Appearance

1.8 Degree Nema 23 Stepper Motor 54m For Cnc Kit Wit Certification Equipment 0

Dimensions

1.8 Degree Nema 23 Stepper Motor 54m For Cnc Kit Wit Certification Equipment 1

Motor Specifications



Step Angel

1.8 °

Fram Size

57 mm

Number of Phase

2 Phase

Rated Current

1.0 A

Holding Torque

1.0 N.m

Resistance

6.5 ohm

Inductance

20 mH

Rotor Inertia

260 g-cm²

Motor weight

0.65 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A



Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
1.8 Degree Nema 23 Stepper Motor 54m For Cnc Kit Wit Certification Equipment 2 1.8 Degree Nema 23 Stepper Motor 54m For Cnc Kit Wit Certification Equipment 3 1.8 Degree Nema 23 Stepper Motor 54m For Cnc Kit Wit Certification Equipment 4 1.8 Degree Nema 23 Stepper Motor 54m For Cnc Kit Wit Certification Equipment 5



Please click the "Get a quote" button below to tell us your requirements.
