Lead Screw Stepper Motor
Created with Pixso.

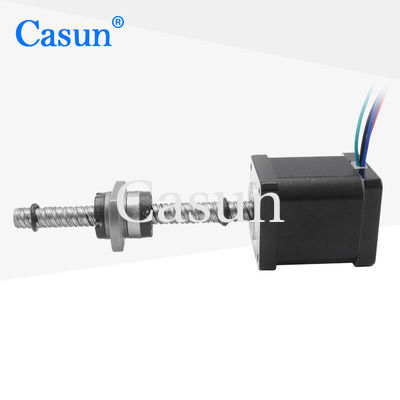

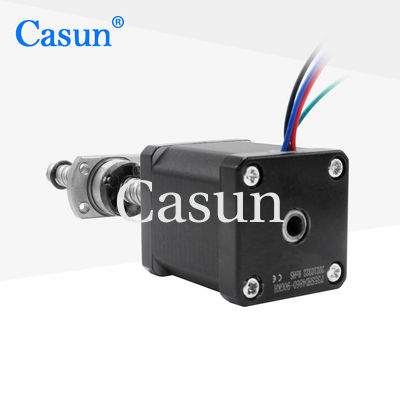

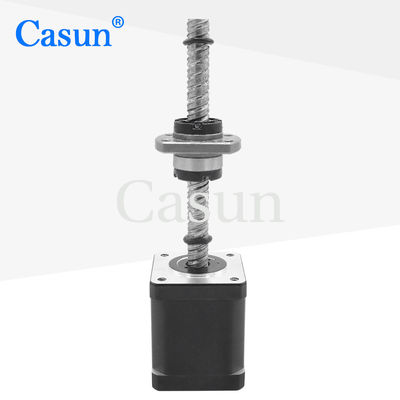

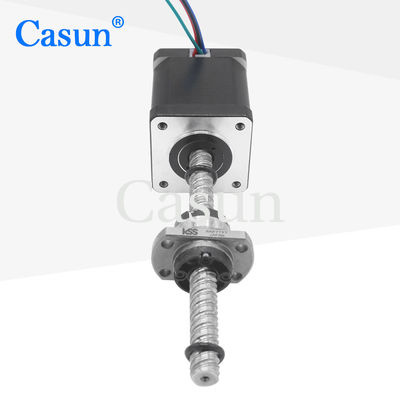

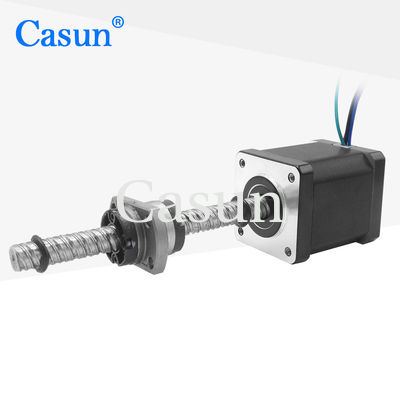

4.05V 1.5A 1.8 Degree 2 Phase NEMA 14 Linear Stepper Motor 35x35mm Ball Screw

4.05V 1.5A 1.8 Degree 2 Phase NEMA 14 Linear Stepper Motor 35x35mm Ball Screw

Brand Name: Casun
Model Number: P35SHD4860-90GKH
MOQ: 1PC
Price: $4.14-$6.98
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
360mN.m
Current:
1.5A
Motor Length:
46mm
Shaft:
Ball Screw Shaft 90mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

1.5A NEMA 14 Linear Stepper Motor

,

4.05V NEMA 14 Linear Stepper Motor

Product Description

The ball guiding structure can provide smooth motion and lower friction loss, thereby improving the stability and reliability of the system.

It can achieve high speed and is suitable for applications that require fast linear motion.



Features:

  • Specializing in tailor-made services is our expertise

  • Hybrid stepper construction

  • Having operated in China for 12 years, we have served over 800 customers

  • CE and RoHS approved

  • Your purchase comes with a ten-year warranty, ensuring confidence





Motor Specifications

Step Angel

1.8 °

Fram Size

35 mm

Number of Phase

2 Phase

Rated Current

1.5 A

Holding Torque

360 mN.m

Resistance

2.7 ohm

Inductance

3.2 mH

Rotor Inertia

35 g-cm²

Motor weight

0.35 kg

Number of leads

4

Connection

Bipolar



Appearance



4.05V 1.5A 1.8 Degree 2 Phase NEMA 14 Linear Stepper Motor 35x35mm Ball Screw 0

Dimensions

4.05V 1.5A 1.8 Degree 2 Phase NEMA 14 Linear Stepper Motor 35x35mm Ball Screw 1







Torque Curves

















4.05V 1.5A 1.8 Degree 2 Phase NEMA 14 Linear Stepper Motor 35x35mm Ball Screw 2



Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.
