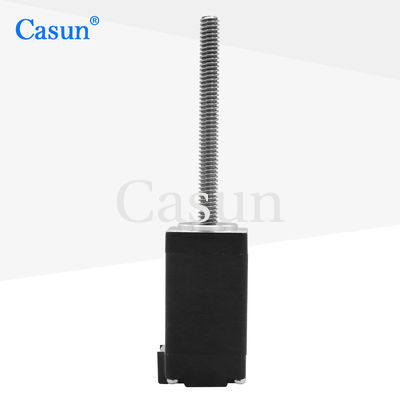

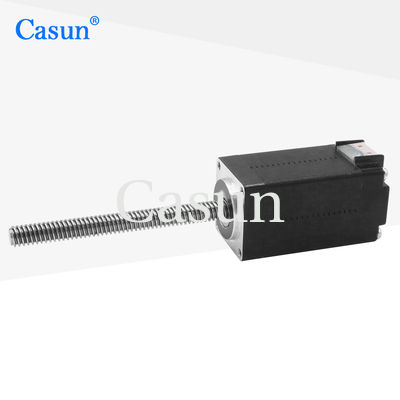

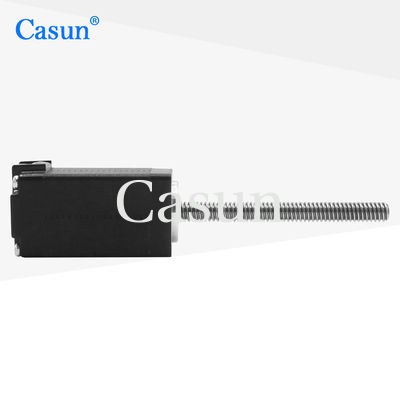

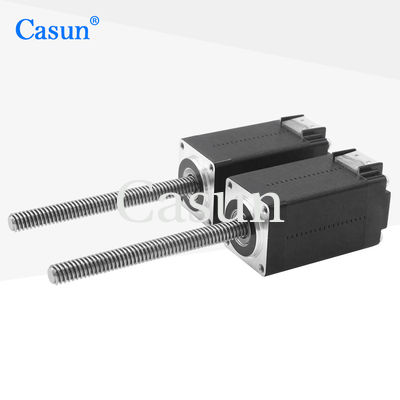

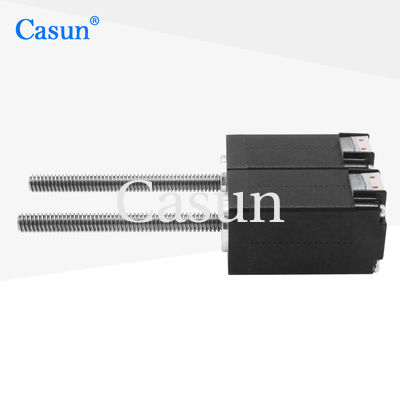

Casun Nema 8 Lead Screw Stepper Motor Tr5X2 P1 5.4V 38mm Body High Precision 32mN.m for Beauty Equipment

Brand Name:	Casun
Model Number:	20SHD0250-52NTV2
MOQ:	5PC
Price:	$17.59~$18.91
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	10000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Holding Torque:

32 MN.m

Voltage:

5.4V

Current:

0.6A

Body Length:

38mm

Weight:

0.08 Kg

Phase Resistance:

9 Ohm ±10% （At 20℃）

Shaft Length:

52 Mm

Phase:

Insulation Class:

Class B

Packaging Details:

Carton:38x29x18cm

Highlight:

38mm Body Nema 8 Stepper Motor

32mN.m Nema 8 Stepper Motor

Lead Screw Nema 8 Stepper Motor

Product Description

Casun Nema 8 Lead Screw Stepper Motor TR5×2 (P1)

5.4V, 38mm Body, High Precision 32mN.m for Beauty Equipment

The Casun Nema 8 Lead Screw Stepper Motor features an integrated TR5×2 (P1) threaded shaft, delivering precise linear motion in a remarkably compact 38mm body. Designed specifically for beauty and aesthetic equipment, this high-precision motor combines 32mN.m torque with smooth, reliable performance for delicate applications.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single- or double-shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	38 mm
Number of Phase	2 Phase
Rated Current	0.6 Amp
Holding Torque	32 mN.m
Resistance	9 ohm
Inductance	3.2 mH
Rotor Inertia	3.5 g.cm²
Motor Weight	0.08 kg
Connection	Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20°C to 50°C

Storage Temperature: -20°C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130°C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Encoder

Voltage: 5V

Output: A + A - B + B - Z + Z -

Submodels

Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements.

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Available Options

Encoder

Brake

Gearbox

Shaft
