Home > products > Brake Stepper Motor > 42*42mm 1.2A Casun Motor Nema 17 Stepper Motor With Brake Bipolar Connection

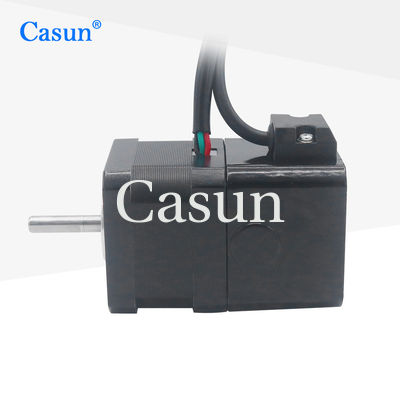

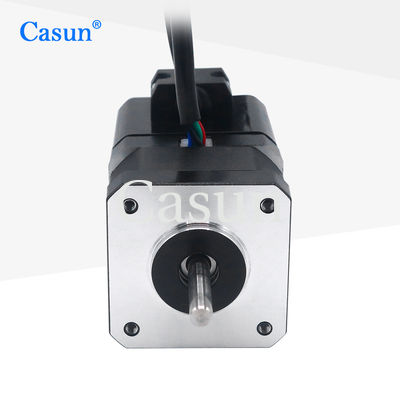

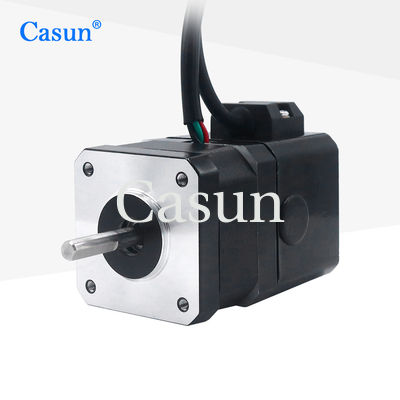

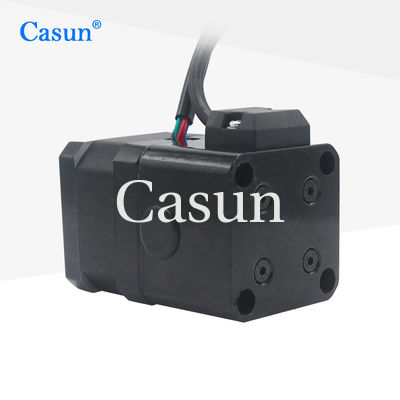

42*42mm 1.2A Casun Motor Nema 17 Stepper Motor With Brake Bipolar Connection
42*42mm 1.2A Casun Motor Nema 17 Stepper Motor With Brake Bipolar Connection
42*42mm 1.2A Casun Motor Nema 17 Stepper Motor With Brake Bipolar Connection
42*42mm 1.2A Casun Motor Nema 17 Stepper Motor With Brake Bipolar Connection
42*42mm 1.2A Casun Motor Nema 17 Stepper Motor With Brake Bipolar Connection
42*42mm 1.2A Casun Motor Nema 17 Stepper Motor With Brake Bipolar Connection

42*42mm 1.2A Casun Motor Nema 17 Stepper Motor With Brake Bipolar Connection

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 42SHD4034-24BH-HP42

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $37-$41

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
High Light:

1.2A Casun Motor

,

Casun Motor With Brake

,

Nema 17 Brake Stepper Motor

Brake Torque:
0.6N.m
Brake Voltage:
24V DC
Brake Response Time:
50ms
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Brake Torque:
0.6N.m
Brake Voltage:
24V DC
Brake Response Time:
50ms
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

The braking device can prevent reverse rotation when the motor is overloaded or accidentally stopped, thereby preventing motor damage and system failure.

A stepper motor with brakes can reduce mechanical vibration and shaking.



Features:

  • Bipolar or unipolar versions available

  • For high-tech industry and electronic industry equipment

  • Available in single or double shaft versions

  • Our products deliver exceptional torque and precision

  • Our services are tailored to meet your needs and we actively welcome contract manufacturing

Dimensions

42*42mm 1.2A Casun Motor Nema 17 Stepper Motor With Brake Bipolar Connection 0







Motor Specifications



Step Angel



1.8 °

Fram Size



42 mm

Number of Phase



2 Phase

Rated Current



1.2 A

Holding Torque



300mN.m

Resistance



5.0 om

Inductance



6.2 mH

Rotor Inertia



38 g-cm²

Motor weight



0.42 kg

Number of leads



4

Connection



Bipolar





Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min











Torque Curves









Submodels



Casun Model General Model Step Angle Motor Length Rated Current Holding Torque
0.9° Degree
42SHB4002-17 17HM08-1204S 0.9° 20mm 1.2 A 0.11 N.m
42SHB0303-22 _ 0.9° 34mm 0.5A 0.24 N.m
42SHB0509-24B 17HM15-0904S 0.9° 40mm 0.9 A 0.35 N.m
42SHB4608-24B1 17HM19-2004S 0.9° 48mm 2.0 A 0.46 N.m
1.8° Degree
42SHD4950-20B 17HS08-1004S 1.8° 20mm 1.0 A 0.13 N.m
45SHD0513-20B _ 1.8° 26mm 1.2A 0.26N.m
42SHD0008-24 17HS-0316S 1.8° 34mm 0.3 A 0.16 N.m
42SHD4003-20B 17HS13-0404S1 1.8° 34mm 0.4 A 0.26 N.m
42SHD4046-24 17HS13-1334S 1.8° 34mm 1.33 A 0.22 N.m
42SHD0217-24B 17HS4401 1.8° 40mm 1.5 A 0.5 N.m
42SHD0192-24B 17HS15-1504S1 1.8° 40mm 1.5 A 0.45 N.m
42SHD0134-22B 17HS15-1704S 1.8° 40mm 1.7 A 0.44 N.m
42SHD0285-24B 17HS15-0404S 1.8° 40mm 0.4 A 0.4 N.m
42SHD4425-24B 17HS19-2004S1 1.8° 48mm 2.0 A 0.59 N.m
42SHD4463-24B 42BYGHW811 1.8° 48mm 2.5 A 0.48 N.m
42SHD0450-20BH 17HS8401S 1.8° 48mm 1.8A 0.52N.m
42SHD4813-24B 17HS24-2104S 1.8° 60mm 2.1 A 0.8 N.m





Download





If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

42*42mm 1.2A Casun Motor Nema 17 Stepper Motor With Brake Bipolar Connection 1 42*42mm 1.2A Casun Motor Nema 17 Stepper Motor With Brake Bipolar Connection 2 42*42mm 1.2A Casun Motor Nema 17 Stepper Motor With Brake Bipolar Connection 3 42*42mm 1.2A Casun Motor Nema 17 Stepper Motor With Brake Bipolar Connection 4





Please click the "Get  a quote" button below to tell us your requirements.

42*42mm 1.2A Casun Motor Nema 17 Stepper Motor With Brake Bipolar Connection 5
