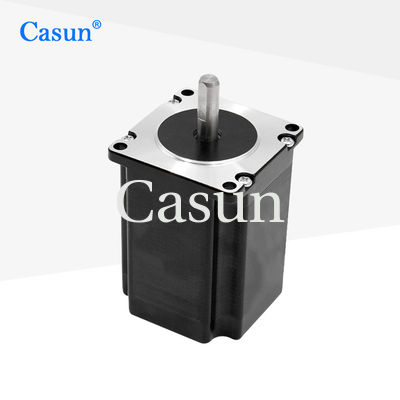

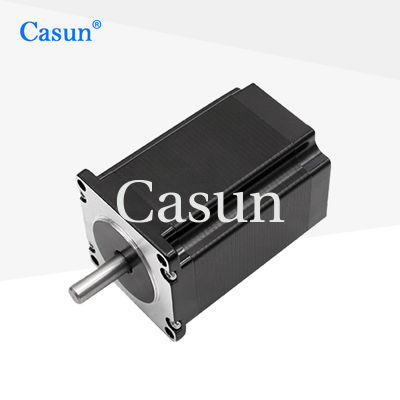

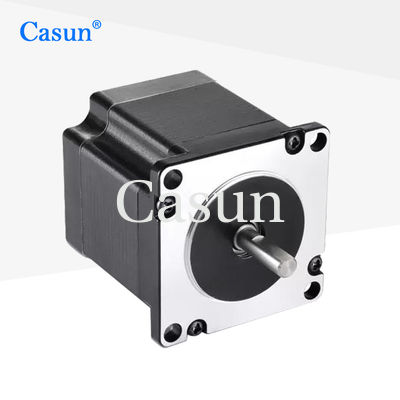

4.4Amp NEMA 23 Stepper Motor 2.3Nm 57X76mm For CNC Casun Stepper Motor

4.4Amp NEMA 23 Stepper Motor 2.3Nm 57X76mm For CNC Casun Stepper Motor

Brand Name:	Casun
Model Number:	57SHD4834-20BH
MOQ:	1PC
Price:	$10.00-$16
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Color:

Black

Current / Phase:

4.4Amp

Holding Torque:

2.3N.m

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29x18cm

Highlight:

4.4Amp NEMA 23 Stepper Motor

57X76mm NEMA 23 Stepper Motor

Product Description

4.4Amp NEMA 23 Stepper Motor 2.3Nm 57X76mm For CNC

The Casun NEMA 23 stepper motor (57X76mm) is a powerful and reliable hybrid open-loop stepper motor designed for CNC and SMT machine applications. While offering excellent performance, users should note that the open-loop design may be less precise than closed-loop alternatives for certain applications.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations available on request

Dimensions

Motor Specifications

Parameter	Value
Step Angle	1.8°
Frame Size	57 mm
Number of Phase	2 Phase
Rated Current	4.4 Amp
Holding Torque	2.3 N.m
Resistance	0.765 Ω
Inductance	2.5 mH
Rotor Inertia	460 g·cm²
Motor Weight	1 kg

Operating Specifications

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20°C to 50°C

Storage Temperature: -20°C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130°C

Insulation Resistance: 100M Ω at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Available Models

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
42SHD4950	0.13 N.m	1.8°	20 mm	D Shaft-20mm	1.0 A
42SHD4003	0.26 N.m	1.8°	34 mm	D Shaft-20mm	0.4 A
42SHD0261	0.45 N.m	1.8°	40 mm	D Shaft-20mm	1.68 A
42SHD4425	0.59 N.m	1.8°	48 mm	D Shaft-24mm	2.0 A
42SHD4813	0.8 N.m	1.8°	60 mm	D Shaft-24mm	2.1 A

We offer comprehensive customization capabilities for motor features including shafts, winding parameters, installation dimensions, lead wires, and connectors to ensure perfect integration with your application requirements, leading to improved efficiency, increased reliability, and reduced downtime.

Available Options

Encoder

Brake

Gearbox

Shaft

Get a Quote

Please click the button above to tell us your specific requirements and receive a customized quote.
