NEMA11 90mN.M 35x45mm Hybrid Stepper Motor For Medical Equipment

name

NEMA11 90mN.M 35x45mm Hybrid Stepper Motor For Medical Equipment

Brand Name: Casun
Model Number: 28SHD4401-20
MOQ: 1PC
Price: $6.9-$10
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROSH,ISO
Step Angel:
1.8°
Holding Torque:
90mN.m
Current:
0.67A
Motor Length:
32mm
Shaft:
Round Shaft 20mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

35x45mm Hybrid Stepper Motor

,

Hybrid Stepper Motor NEMA11

,

Hybrid Stepper Motor For Medical Equipment

Product Description
NEMA11 90mN.M 35x45mm Hybrid Stepper Motor For Medical Equipment
High-performance NEMA11 hybrid stepper motor delivering 90mN.m torque in a compact 35x45mm package. Specifically designed for medical equipment applications including ATM robot arms and medical beauty equipment.
Motor Specifications
Step Angle 1.8°
Frame Size 28 mm
Number of Phase 2 Phase
Rated Current 0.67A
Holding Torque 90mN.m
Motor Weight 0.16 kg
Number of Leads 4
Connection Bipolar

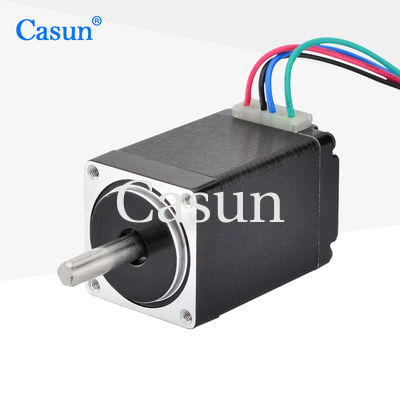

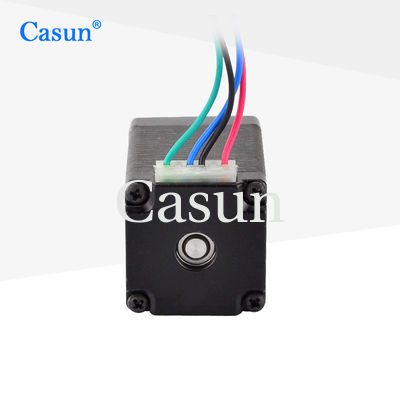

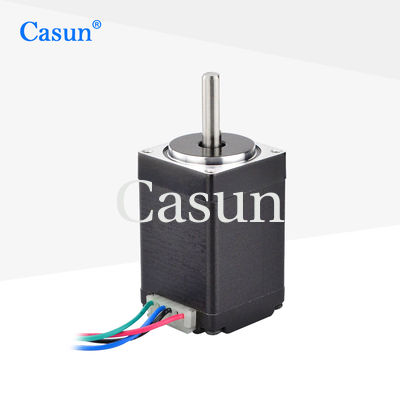

Appearance
NEMA11 90mN.M 35x45mm Hybrid Stepper Motor For Medical Equipment 0
Motor Exterior
Dimensions
NEMA11 90mN.M 35x45mm Hybrid Stepper Motor For Medical Equipment 1
Dimensional Drawing
Torque Curves
Detailed torque performance curves available upon request.
Download
Technical documentation and datasheets available for download.
Customization Available
If our standard motor cannot meet your requirements, we can customize the motor according to your specific needs.
Customized content includes but is not limited to:
  • Special shafts
  • Custom winding parameters
  • Modified installation dimensions
  • Special requirement lead wires
  • Connectors
Available Options
Encoder
Brake
Gearbox
Connector
