Home > products > Hybrid Stepper Motor > 30mm Length Micro Stepper Motor Nema 8 15mN.M Customizable Products
30mm Length Micro Stepper Motor Nema 8 15mN.M Customizable Products
30mm Length Micro Stepper Motor Nema 8 15mN.M Customizable Products
30mm Length Micro Stepper Motor Nema 8 15mN.M Customizable Products

30mm Length Micro Stepper Motor Nema 8 15mN.M Customizable Products

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROSH,ISO

Model Number: 20SHD0001-20

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $5-$10

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
High Light:

30mm Length Micro Stepper Motor

,

Nema 8 Micro Stepper Motor

Step Angel:
1.8°
Holding Torque:
15mN.m
Current:
0.6A
Motor Length:
30mm
Shaft:
Round Shaft 20mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
15mN.m
Current:
0.6A
Motor Length:
30mm
Shaft:
Round Shaft 20mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

Micro stepper motor Nema 8 15mN.m Customizable products with high quality





20x20x33mm 0.6A Casun Stepper Motor Nema 8 Mini Stepper Motor For Medical beauty equipment

Motor Specifications



Step Angel



1.8 °

Fram Size



20 mm

Number of Phase



2 Phase

Rated Current



0.65 A

Holding Torque



15 mN.m

Resistance



6.5 ohm

Inductance



1.7mH

Rotor Inertia



2g-cm²

Motor weight



0.08 kg

Number of leads



4

Connection



Bipolar

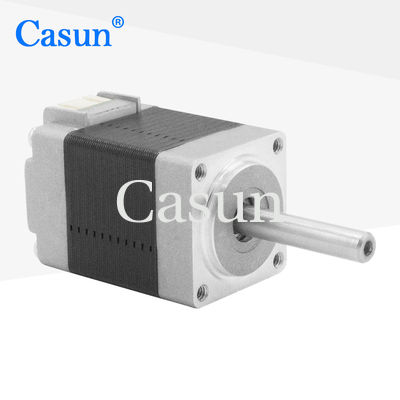

Appearance

30mm Length Micro Stepper Motor Nema 8 15mN.M Customizable Products 0

Dimensions

30mm Length Micro Stepper Motor Nema 8 15mN.M Customizable Products 1



Torque Curves



















Download









If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.
