NEMA 24 2300mN.M 60x60x67 Hybrid Stepping Motor For Automation Equipment

NEMA 24 2300mN.M 60x60x67 Hybrid Stepping Motor For Automation Equipment

Brand Name: Casun
Model Number: 60SHD4503-20
MOQ: 1PC
Price: $8.00-$16
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Color:
Black
Current / Phase:
3.5A
Holding Torque:
2300mN.m
Step Angle:
1.8°
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:38x29x18cm
Highlight:

NEMA 24 Hybrid Stepping Motor

,

Hybrid Stepping Motor For Automation Equipment

Product Description

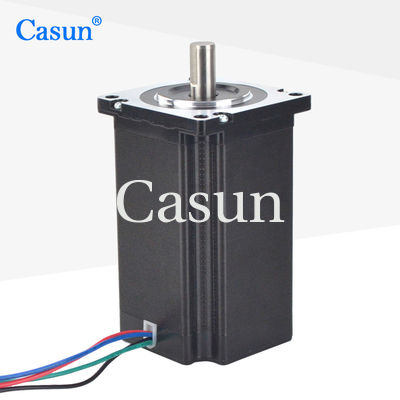

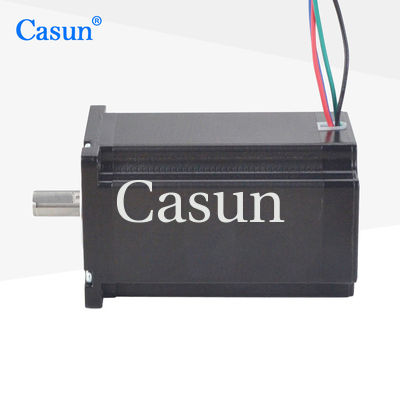

Step motor NEMA 24 2300mN.m 60x60x67 hybrid stepping motor for Automation equipment

The Nema24 60MMX60MM Hybrid Open Loop Stepper Motor is a type of stepper motor that is commonly used in CNC machines, 3D printers, and robotics applications. It is designed to provide high torque and precise positioning, making it suitable for a wide range of applications.

One of the key features of the Nema24 60MMX60MM Hybrid Open Loop Stepper Motor is its hybrid design, which combines the best features of both permanent magnet and variable reluctance stepper motors. This allows it to provide high torque and precise positioning, while also operating efficiently and reliably.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

NEMA 24 2300mN.M 60x60x67 Hybrid Stepping Motor For Automation Equipment 0







Motor Specifications



Step Angel



1.8 °

Fram Size



60 mm

Number of Phase



2 Phase

Rated Current



3.5 Amp

Holding Torque



2300mN.m

Resistance



-hm

Inductance



-mH

Rotor Inertia



-g-cm²

Motor weight



0.8kg















Operating Specifications



Motor



Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min















Torque Curves









Submodels

Model Holding Torque Step Angle Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A

Download





We have the ability to customize motor features such as shafts, winding parameters, installation dimensions, lead wires, and connectors can help to ensure that the motor is a perfect fit for the customer's application. This can lead to improved efficiency, increased reliability, and reduced downtime.



Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

NEMA 24 2300mN.M 60x60x67 Hybrid Stepping Motor For Automation Equipment 1 NEMA 24 2300mN.M 60x60x67 Hybrid Stepping Motor For Automation Equipment 2 NEMA 24 2300mN.M 60x60x67 Hybrid Stepping Motor For Automation Equipment 3 NEMA 24 2300mN.M 60x60x67 Hybrid Stepping Motor For Automation Equipment 4





Please click the "Get  a quote" button below to tell us your requirements.
