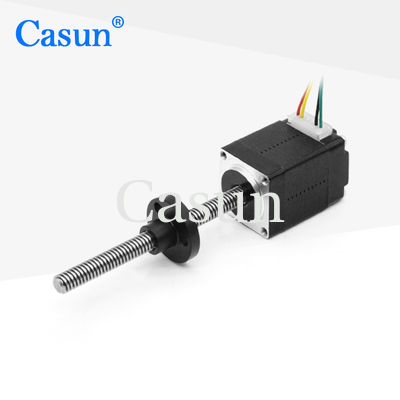

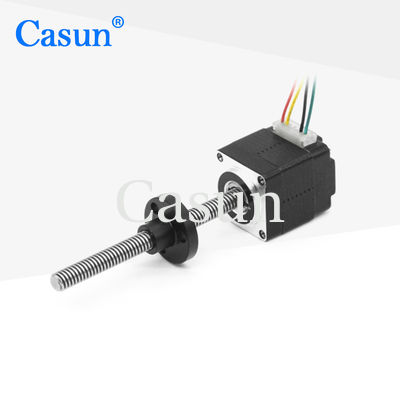

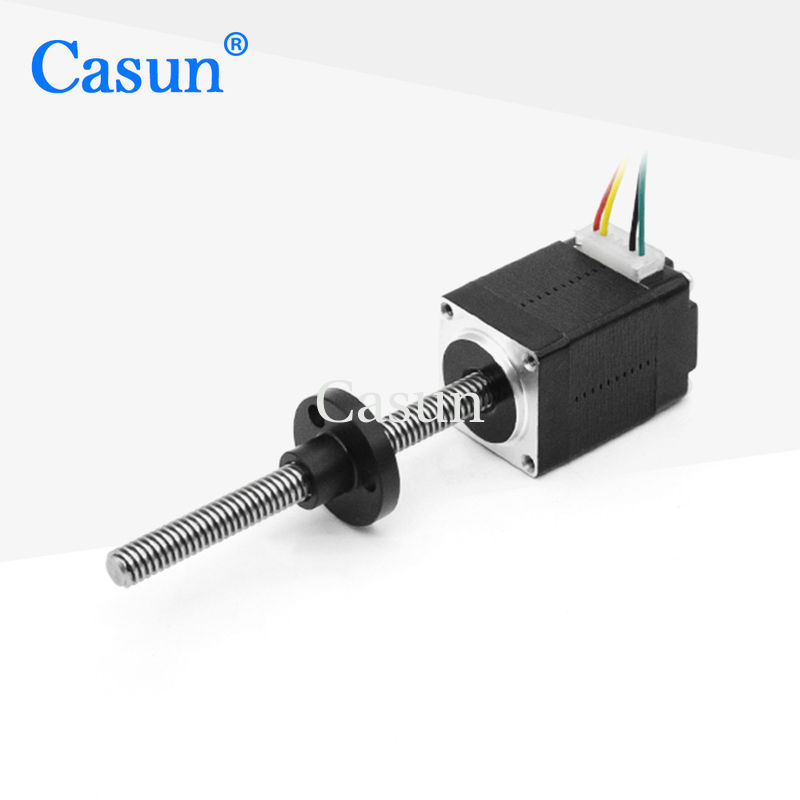

Casun Nema8 Hybrid Lead Screw Stepper Motor Tr4x2 Black Color

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 28SHD4303-105NT

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $8.99-$18

Packaging Details: Carton:38x29xc14m

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price
Product Details
Highlight:

Hybrid Lead Screw Stepper Motor

,

Casun Nema8 Lead Screw Stepper Motor

Color:
Black
Current:
0.24Amp
Holding Torque:
13mN.m
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Color:
Black
Current:
0.24Amp
Holding Torque:
13mN.m
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

Casun nema8 hybrid lead screw stepper motor tr4x2 Lead srew stepper motor

The Nema 8 stepper motor is a small-sized stepper motor that is commonly used in applications that require precise motion control in a compact space. It typically has a flange size of 20mm x 20mm and a low torque rating, making it suitable for applications that require low power and high precision.



The Nema 8 stepper motor can be used to provide precise linear motion, making it ideal for applications such as miniature linear actuators, precision positioning systems, and mini CNC machines. The lead screw is a type of threaded rod that is designed to convert rotary motion into linear motion, and when paired with a stepper motor, it can provide precise and repeatable linear motion.

Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

Casun Nema8 Hybrid Lead Screw Stepper Motor Tr4x2 Black Color 0







Motor Specifications



Step Angel



1.8 °

Fram Size



20 mm

Number of Phase



2 Phase

Rated Current



0.24Amp

Holding Torque



13mN.m

Resistance



-ohm

Inductance



-mH

Rotor Inertia



-g-cm²

Motor weight



0.06kg

Lead Screw



Tr4X2

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N







Torque Curves





Submodels



Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Body Length Diameter of Screw Pitch Length of Screw
20 mm

34 mm

40 mm

48 mm

60 mm


5 2 20-1000 mm
8
6.35 1.27
3.175
6.35
6.5 3
6.35
8 1
2
4
8
12



Download







If our standard motor options do not meet your specific requirements, we can offer customized solutions to meet your needs. Our customization options include, but are not limited to:

- Special shafts: We can customize the shaft diameter, length, shape, and material to meet your needs.

- Winding parameters: We can customize the winding parameters such as the number of poles, wire gauge, and winding pattern to meet your specific requirements.

- Installation dimensions: We can modify the motor's installation dimensions to fit your application's space constraints.

- Lead wires with special requirements: We can customize the length, type, and number of lead wires to meet your specific needs.

- Connectors: We can add or modify the connectors on the motor to match your application's requirements.

We have a team of experienced engineers who can work with you to develop a customized solution that meets your specific needs and requirements. Please feel free to contact us to discuss your customization needs.
