Home > products > Hybrid Stepper Motor > 0.28A Nema 16 Stepping Motor Casun 16*16mm Stepper Motor 120mN.M For Stage Light

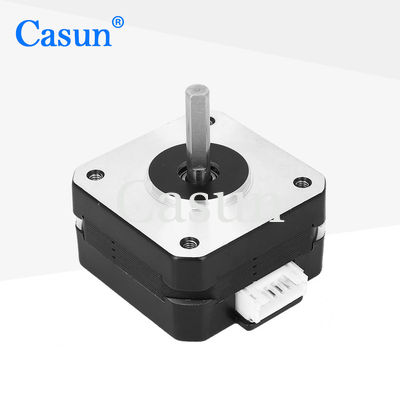

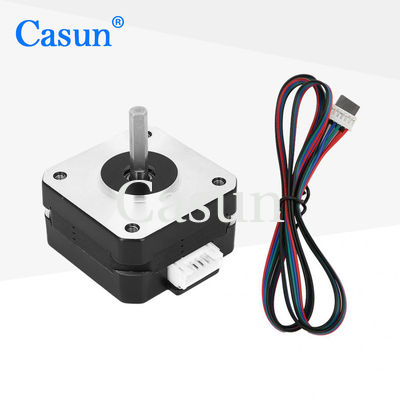

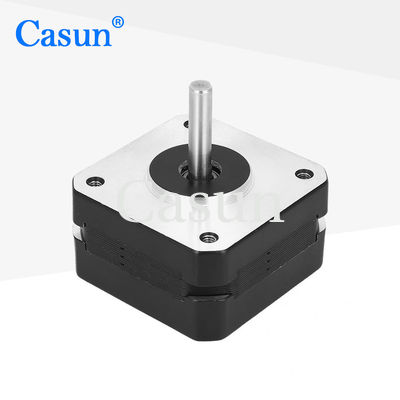

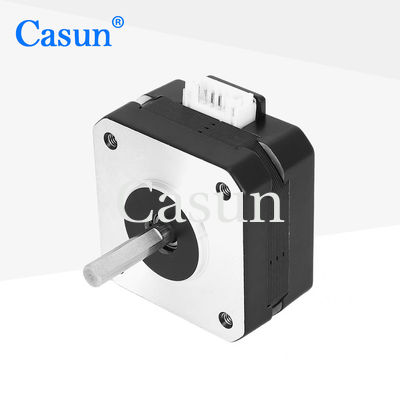

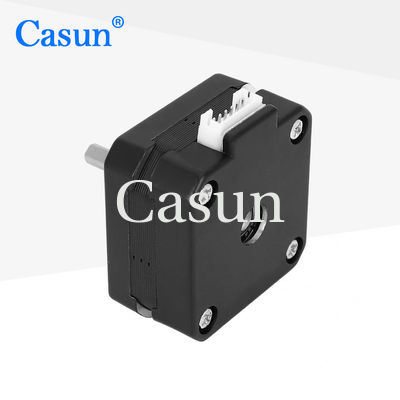

0.28A Nema 16 Stepping Motor Casun 16*16mm Stepper Motor 120mN.M For Stage Light
0.28A Nema 16 Stepping Motor Casun 16*16mm Stepper Motor 120mN.M For Stage Light
0.28A Nema 16 Stepping Motor Casun 16*16mm Stepper Motor 120mN.M For Stage Light
0.28A Nema 16 Stepping Motor Casun 16*16mm Stepper Motor 120mN.M For Stage Light
0.28A Nema 16 Stepping Motor Casun 16*16mm Stepper Motor 120mN.M For Stage Light
0.28A Nema 16 Stepping Motor Casun 16*16mm Stepper Motor 120mN.M For Stage Light

0.28A Nema 16 Stepping Motor Casun 16*16mm Stepper Motor 120mN.M For Stage Light

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROSH,ISO

Model Number: 39SHD0609-10H

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $3.56-$4.80

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
High Light:

0.28A Nema 16 Stepping Motor

,

120mN.M Nema 16 Stepping Motor

Step Angel:
1.8°
Holding Torque:
120mN.m
Current:
0.28A
Motor Length:
25mm
Shaft:
Round Shaft 10mm Length
Brand:
CASUN
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
120mN.m
Current:
0.28A
Motor Length:
25mm
Shaft:
Round Shaft 10mm Length
Brand:
CASUN
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

Motori per stadi 0.28A Nema 16 Stepping Motor Casun 16*16mm Stepper Motor 120mN.m for stage light



When compared to other motor types, the 39mm motor produces less noise, which can have a positive effect on both the environment and users.



In some low noise application circumstances, it is widely employed.



Features:

  • Bipolar or unipolar versions available

  • Over 800 clients have been handled over its twelve years of operation in China

  • Available in single or double shaft versions

  • Ten-year warranty and secure shopping

  • Customizations on request





Motor Specifications



Step Angel

1.8 °

Fram Size

39 mm

Number of Phase

2 Phase

Rated Current

0.28 A

Holding Torque

120 mN.m

Resistance

44 ohm

Inductance

20 mH

Rotor Inertia

15 g-cm²

Motor weight

0.17 kg

Number of leads

4

Connection

Bipolar

Appearance



0.28A Nema 16 Stepping Motor Casun 16*16mm Stepper Motor 120mN.M For Stage Light 0

Dimensions

0.28A Nema 16 Stepping Motor Casun 16*16mm Stepper Motor 120mN.M For Stage Light 1








Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min









Torque Curves









Submodels



Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
39SHD0001-20 100mN.m 1.8° 20mm Round Shaft
20mm		 0.48A
39SHD0504-20 100mN.m 1.8° 22mm Round Shaft
20mm		 0.4A
39SHD0611-20 200mN.m 1.8° 25mm Round Shaft
20mm		 0.4A
39SHD0302-20 220mN.m 1.8° 34mm Round Shaft
20mm		 0.4A
39SHD0401-24 220mN.m 1.8° 38mm Round Shaft
24mm		 0.4A
39SHD0801-24B 220mN.m 1.8° 48mm D Shaft
24mm		 0.4A





Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
0.28A Nema 16 Stepping Motor Casun 16*16mm Stepper Motor 120mN.M For Stage Light 2 0.28A Nema 16 Stepping Motor Casun 16*16mm Stepper Motor 120mN.M For Stage Light 3 0.28A Nema 16 Stepping Motor Casun 16*16mm Stepper Motor 120mN.M For Stage Light 4 0.28A Nema 16 Stepping Motor Casun 16*16mm Stepper Motor 120mN.M For Stage Light 5



Please click the "Get  a quote" button below to tell us your requirements.
