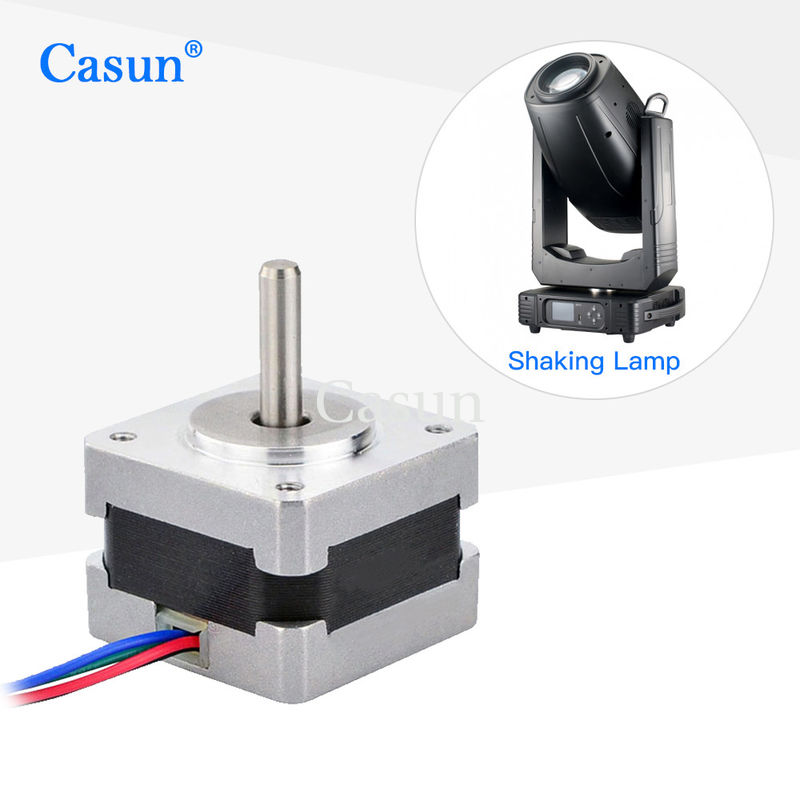

Nema16 Hybrid Stepper Motor 39x39x29mm 170mN.M Shaft 24mm Customize

Nema16 Hybrid Stepper Motor 39x39x29mm 170mN.M Shaft 24mm Customize

Brand Name:	Casun
Model Number:	39SHD0203-24
MOQ:	1PC
Price:	$3.38-$4.38
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROSH,ISO

Step Angel:

1.8°

Holding Torque:

170mN.m

Current:

0.4A

Motor Length:

29mm

Shaft:

Round Shaft 24mm Length

Voltage:

12v

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

Nema16 Hybrid Stepper Motor

24mm Shaft Hybrid Stepper Motor

Product Description

Nema16 Hybrid Stepper Motor 39x39x29mm 170mN.M Shaft 24mm Customize

The Nema16 hybrid stepper motor features a compact 39x39x29mm size with 170mN.m holding torque and 24mm shaft. This motor is ideal for applications requiring precise motion control in small-scale automation systems.

With a 1.8-degree step angle providing 200 steps per revolution, this motor delivers exceptional positioning accuracy. Commonly used in 3D printers, engraving machines, robotics, and other precision motion applications.

Motor Specifications

Step Angle	1.8°
Frame Size	39mm
Number of Phase	2 Phase
Rated Current	0.4A
Holding Torque	170mN.m
Resistance	30Ω
Inductance	45mH
Rotor Inertia	20 g·cm²
Motor Weight	0.12kg
Number of Leads	4
Connection	Bipolar

Appearance & Dimensions

Performance Characteristics

Torque curves and performance data available upon request. Contact our engineering team for detailed technical specifications and application support.

Customization Options

If our standard motor cannot meet your requirements, we can customize the motor according to your specific needs.

Encoder

Brake

Gearbox

Connector

Please click the button below to discuss your requirements with our engineering team.
