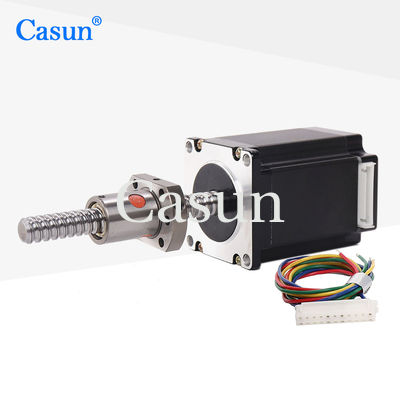

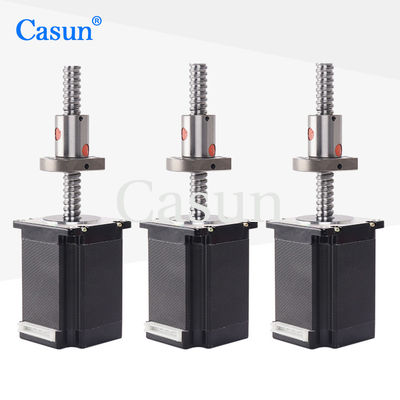

3A Ball Srew Linear Stepper Motor 2000mN.M 57x57x76mm

3A Ball Srew Linear Stepper Motor 2000mN.M 57x57x76mm

Brand Name:	Casun
Model Number:	57SHD4816-150GHH
MOQ:	1PC
Price:	$100-$102
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Color:

Black

Current:

Holding Torque:

2000mN.m

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29xc14m

Highlight:

3A Ball Srew Linear Stepper Motor

Ball Srew Linear Stepper Motor

2000mN.M Linear Stepper Motor

Product Description

3A Ball Screw Linear Stepper Motor 2000mN.M 57x57x76mm

Nema 23 External Ball Screw Linear Stepper Motor 2000mNm 3.0A 76mm 12mm Diameter Lead Length 150mm For 3D printing and CNC applications. The 57mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution. Choose a baseline version or request your own customized configuration.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	57mm
Number of Phase	2 Phase
Rated Current	3A
Holding Torque	2000 mN.m
Resistance	0.95 ohm
Inductance	3.6 mH
Rotor Inertia	460 g-cm²
Motor Weight	1.4 kg
Lead Screw	SPS01210-2.8
Connection	Bipolar

Operating Specifications

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min
Shaft Radial Play	0.02 Max. (450g-load)
Shaft Axial Play	0.08 Max. (450g-load)
Max. Radial Force	28N (20mm from the flange)
Max. Axial Force	10N

Available Models

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13 N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26 N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45 N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59 N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8 N.m	1.8°	60mm	D Shaft-24mm	2.1A

Custom Motor Solutions

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.

Available Options

Encoder

Brake

Gearbox

Shaft

Please click the "Get a quote" button below to tell us your requirements.
