Pancake 57x57x13mm Flat Stepper Motor Nema57 2.88V DC Bipolar Version

Pancake 57x57x13mm Flat Stepper Motor Nema57 2.88V DC Bipolar Version

Pancake Flat Stepper Motor

nema57 Flat Stepper Motor

Place of Origin:

CHINA

Brand Name:

Casun

Certification:

CE,ROHS,ISO

Model Number:

57SHY4301-6

Contact Us

Request A Quote
Product Details
Prouct:
Nema57
Holding Torque:
135mN.m
Rated Current:
1.2A
Voltage:
2.88V DC
Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
$12.3-$13.84
Packaging Details
Carton:36x29x14cm
Delivery Time
7-15 days
Payment Terms
D/A, T/T, L/C, D/P
Supply Ability
40000+PCS+Month
RELATED PRODUCTS
Contact Us
86-020-36907671
Contact Now
Product Description

Casun pancake steppper motor 57x57x13mm flat stepper motor with high stepper motor



NEMA23 Flat stepper motor 57mmx57mmx13mm pancake step motor for medical beauty equipment robotics

The  Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

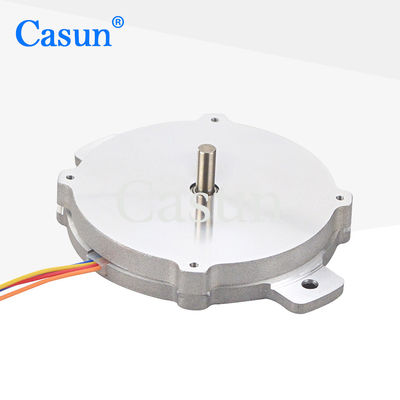

Pancake 57x57x13mm Flat Stepper Motor Nema57 2.88V DC Bipolar Version 0

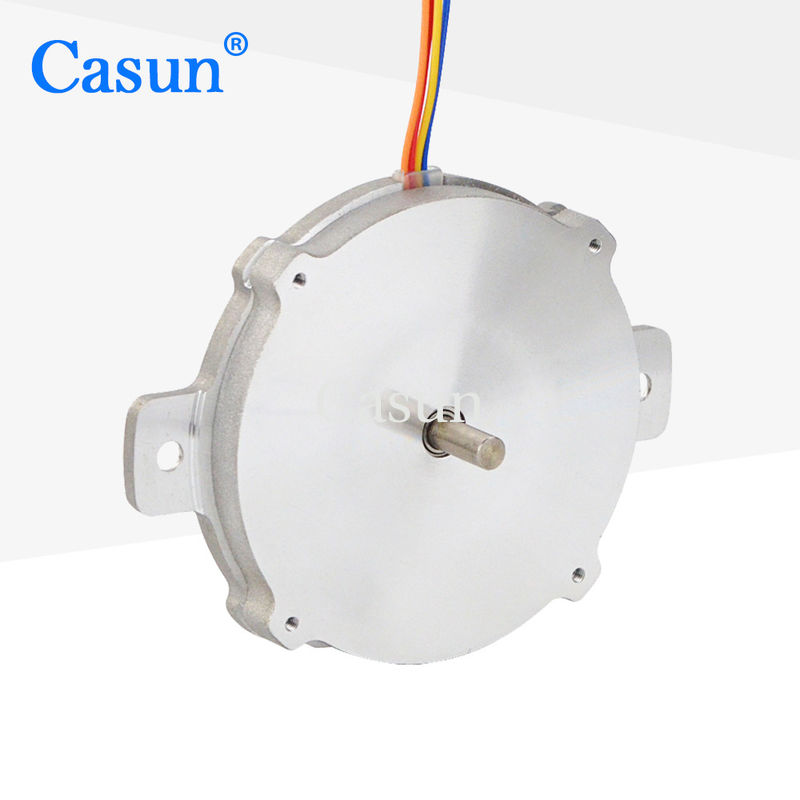

Pancake 57x57x13mm Flat Stepper Motor Nema57 2.88V DC Bipolar Version 1

Motor Specifications



Step Angel



1.8 °

Fram Size



57mm

Number of Phase



2 Phase

Rated Current



1.2A

Holding Torque



135mN.m

Resistance



3.5 om

Inductance



1.8mH

Rotor Inertia



15 g-cm²

Motor weight



75g

Number of leads



4

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min









Torque Curves





Submodels



Model Motor Length Current Holding Torque
P28SHD4611 9.5mm 0.5A 16mN.m
P28SHD4701 10.6mm 0.5A 20mN.m
P28SHD4750 13-15mm 0.5A 25mN.m
P28SHD4950 17.9mm 0.5A 35mN.m


Download





If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.
