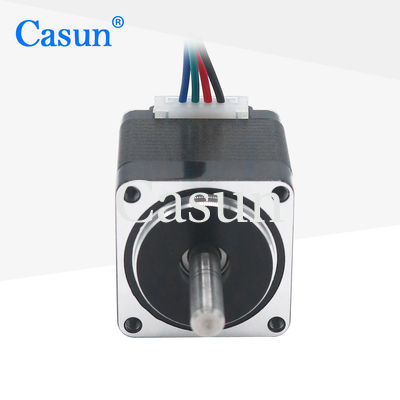

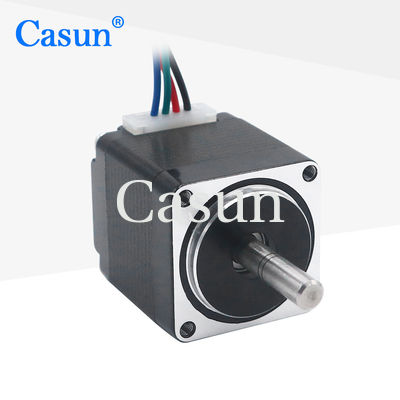

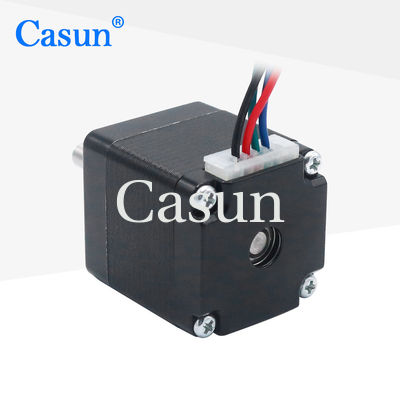

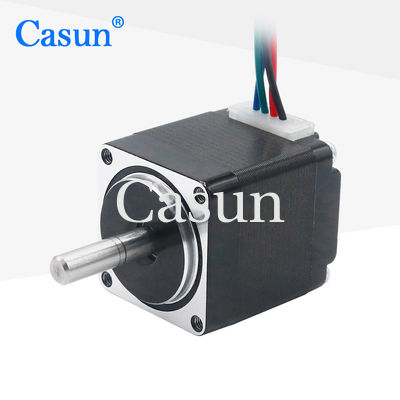

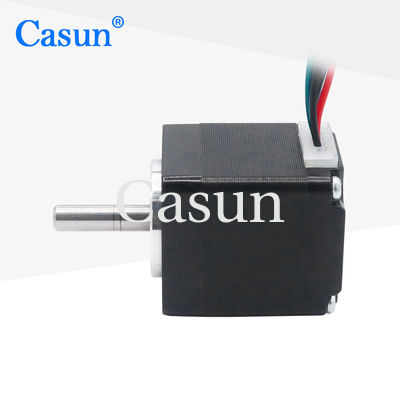

0.67A NEMA 11 Hybrid Stepper Motor 28*28*32mm 80mN.M 0.67A CE ROHS

name

0.67A NEMA 11 Hybrid Stepper Motor 28*28*32mm 80mN.M 0.67A CE ROHS

Brand Name: Casun
Model Number: 28SHD4207-20
MOQ: 1PC
Price: $5.94-$8.6
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
80mN.m
Current:
0.67A
Motor Length:
32mm
Shaft:
Round Shaft 20mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

NEMA 11 Hybrid Stepper Motor

,

Hybrid Stepper Motor 0.67A

Product Description

The 28mm stepper motor is very controllable and can accurately control the speed and direction of rotation by controlling the frequency and sequence of current and pulse signals.

Medical and scientific equipment, as well as household appliances, image scanners, and car navigation.



Features:

  • Bipolar or unipolar versions available

  • Manufacturing with expertise in research and developmen

  • High torque and high precision

  • Wanted dealers! !

  • Our engineers will be in touch within 48 hours to provide the best solution





Motor Specifications

Step Angel

1.8 °

Fram Size

28 mm

Number of Phase

2 Phase

Rated Current

0.67 A

Holding Torque

80 mN.m

Resistance

5.8 ohm

Inductance

4.1 mH

Rotor Inertia

9 g-cm²

Motor weight

0.12 kg

Number of leads

4

Connection

Bipolar





Appearance



0.67A NEMA 11 Hybrid Stepper Motor 28*28*32mm 80mN.M 0.67A CE ROHS 0Dimensions

0.67A NEMA 11 Hybrid Stepper Motor 28*28*32mm 80mN.M 0.67A CE ROHS 1



Torque Curves







Downoad







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.

0.67A NEMA 11 Hybrid Stepper Motor 28*28*32mm 80mN.M 0.67A CE ROHS 2
