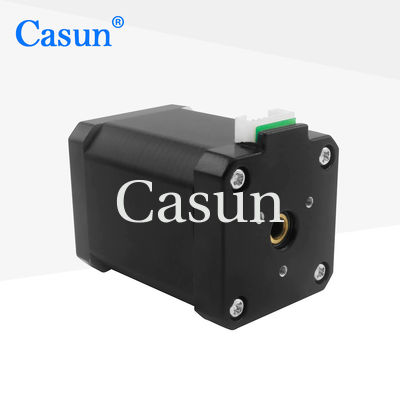

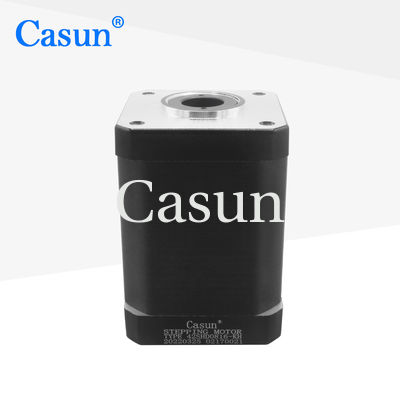

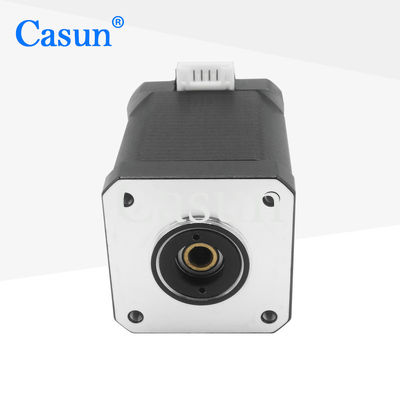

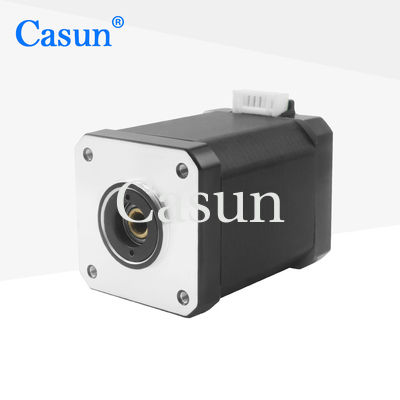

1.8 Degree Hollow Shaft NEMA 17 Micro Stepper Motor 3.0A 2 Phase For Robot

1.8 Degree Hollow Shaft NEMA 17 Micro Stepper Motor 3.0A 2 Phase For Robot

Brand Name:	Casun
Model Number:	42SHD0816-KH
MOQ:	1PC
Price:	$15-$18
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Color:

Black

Steper Angle:

1.8 Degree

Phase:

Rated Voltage:

5.2V

Current:

3.0A

Holding Torque:

800mN.m

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29xc14m

Highlight:

NEMA 17 Micro Stepper Motor

2 Phase Micro Stepper Motor

Micro Stepper Motor 3.0A

Product Description

1.8 Degree Hollow Shaft NEMA 17 Micro Stepper Motor 3.0A 2 Phase For Robot

2 Phase 1.8 Degree Hollow Shaft NEMA 17 42×42×60mm Micro Stepper Motor 3.0A for Robot

Compared to conventional stepper motors, this model provides greater torque output, reduces energy loss, and improves system efficiency. No need for traditional mechanical transmission components such as couplings or reducers.

Key Features

Professional drivetrain solution specialist
Hybrid stepper construction
Available in single or double shaft versions
Our engineers will be in touch within 48 hours to provide the best solution
Customizations on request

Dimensions

Motor Specifications

Specification	Value
Step Angle	1.8°
Frame Size	42 mm
Number of Phase	2 Phase
Rated Current	3.0A
Holding Torque	800 mN·m
Resistance	1.4 ohm
Inductance	2.8 mH
Rotor Inertia	102 g·cm²
Motor Weight	0.55 kg
Connection	Bipolar

Operating Specifications

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min
Shaft Radial Play	0.02 Max. (450g-load)
Shaft Axial Play	0.08 Max. (450g-load)
Max. Radial Force	28N (20mm from flange)
Max. Axial Force	10N

Available Models

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13 N·m	1.8°	20 mm	D Shaft-20mm	1.0A
42SHD4003	0.26 N·m	1.8°	34 mm	D Shaft-20mm	0.4A
42SHD0261	0.45 N·m	1.8°	40 mm	D Shaft-20mm	1.68A
42SHD4425	0.59 N·m	1.8°	48 mm	D Shaft-24mm	2.0A
42SHD4813	0.8 N·m	1.8°	60 mm	D Shaft-24mm	2.1A

Available Options

Encoder

Brake

Gearbox

Shaft

Custom Solutions Available

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Frequently Asked Questions

Who are we?

We are based in Guangdong, China, starting from 2011. We sell to Domestic Market (63.00%), Western Europe (12.00%), North America (9.00%), Eastern Asia (8.00%), Northern Europe (2.00%), and other global markets. There are about 51-100 people in our office.

How can we guarantee quality?

Always a pre-production sample before mass production; Always final inspection before shipment.

What can you buy from us?

Stepper Motor, BLDC Motor

Why should you buy from us instead of other suppliers?

We are specialized in producing and selling stepper motors for more than 11 years.

What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery; Accepted Payment Currency: USD, CNY; Accepted Payment Type: T/T, L/C, D/P D/A, PayPal; Languages Spoken: English, Chinese, Japanese
