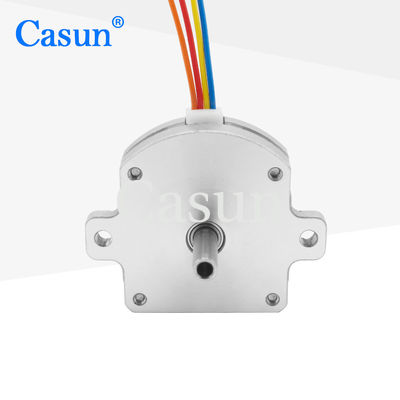

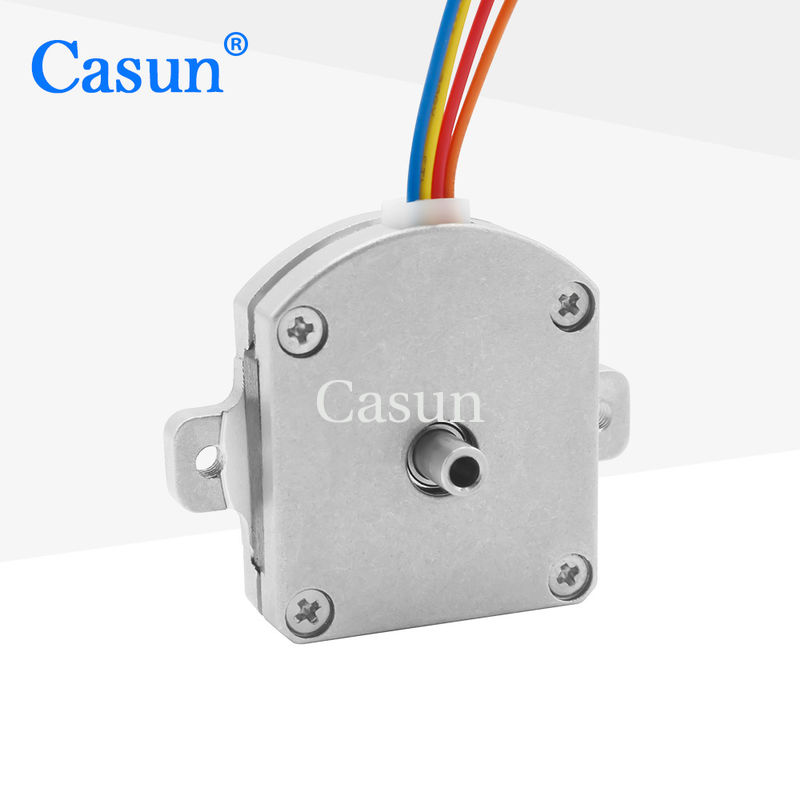

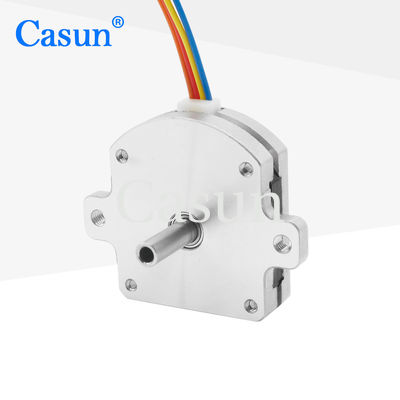

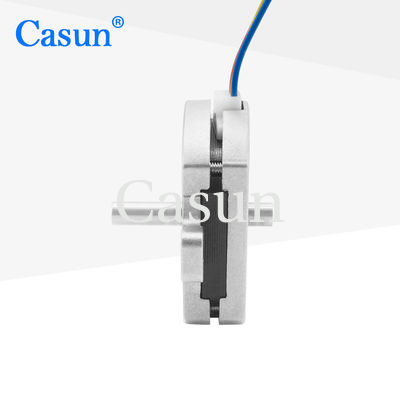

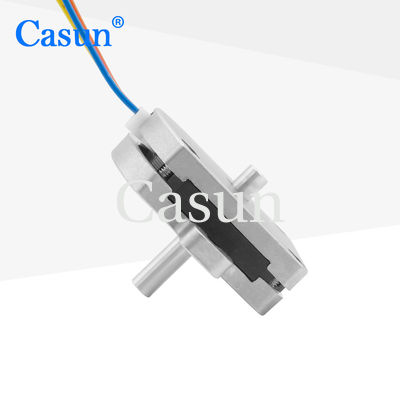

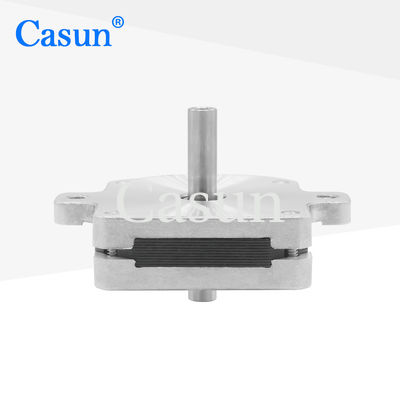

NEMA 11 Double Shaft Stepper Motor Ultra Flat 0.5A 28*28*9.5mm For SMT Feed

name

NEMA 11 Double Shaft Stepper Motor Ultra Flat 0.5A 28*28*9.5mm For SMT Feed

Brand Name: Casun
Model Number: P28SHD4611-12SK
MOQ: 1PC
Price: $9.68-13.46
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Body:
9.5mm
Step Angle:
1.8°
Holding Torque:
16mN.m
Mass:
30g
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

NEMA 11 Double Shaft Stepper Motor

,

0.5A Double Shaft Stepper Motor

Product Description

Double Shaft Stepper Motor NEMA 11 Ultra flat 0.5A 28*28*9.5mm for SMT Feed

In a range of sizes, the Hybrid Stepper Motor Series provides strong holding torque.

To lessen vibration and produce a greater step resolution, use with a microstepping driver.

Small in size, but with excellent power output density.



Features:

  • Versions in unipolar or bipolar are offered

  • Provide "multiple international certifications" for high-tech industry and electronic industry equipment

  • High torque and high precision

  • CE and RoHS compliance

  • Upon request, modifications

Dimensions

NEMA 11 Double Shaft Stepper Motor Ultra Flat 0.5A 28*28*9.5mm For SMT Feed 0







Motor Specifications





Step Angel



1.8 °



Fram Size



28 mm



Number of Phase



2 Phase



Rated Current



0.5A



Holding Torque



16 mN.m



Resistance



3.5 om



Inductance



0.90mH



Rotor Inertia



2 g-cm²



Motor weight



0.03 kg



Number of leads



4



Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min









Torque Curves





Submodels



Model Motor Length Current Holding Torque
P28SHD4611 9.5mm 0.5A 16mN.m
P28SHD4701 10.6mm 0.5A 20mN.m
P28SHD4750 13-15mm 0.5A 25mN.m
P28SHD4950 17.9mm 0.5A 35mN.m


Download





If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

NEMA 11 Double Shaft Stepper Motor Ultra Flat 0.5A 28*28*9.5mm For SMT Feed 1 NEMA 11 Double Shaft Stepper Motor Ultra Flat 0.5A 28*28*9.5mm For SMT Feed 2 NEMA 11 Double Shaft Stepper Motor Ultra Flat 0.5A 28*28*9.5mm For SMT Feed 3 NEMA 11 Double Shaft Stepper Motor Ultra Flat 0.5A 28*28*9.5mm For SMT Feed 4





Please click the "Get  a quote" button below to tell us your requirements.
