laser machine Kit 86x86x107mm 4.5N.M NEMA 34 Closed Loop Stepper Motor Kit Driver PSU Mach3

laser machine Kit 86x86x107mm 4.5N.M NEMA 34 Closed Loop Stepper Motor Kit Driver PSU Mach3

Brand Name:	Casun
Model Number:	86HSE4N+HBS860H
MOQ:	1PC
Price:	$100-$140
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Step Angel:

1.8°

Holding Torque:

4.5N.m

Current:

4.2A

Motor Length:

107mm

Shaft:

33mm Length

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

NEMA 34 Closed Loop Stepper Motor

4.5N.M Closed Loop Stepper Motor

Product Description

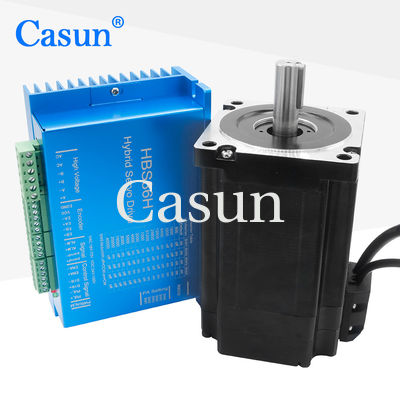

Laser Machine Kit 86x86x107mm 4.5N.M NEMA 34 Closed Loop Stepper Motor Kit Driver PSU Mach3

Product Overview

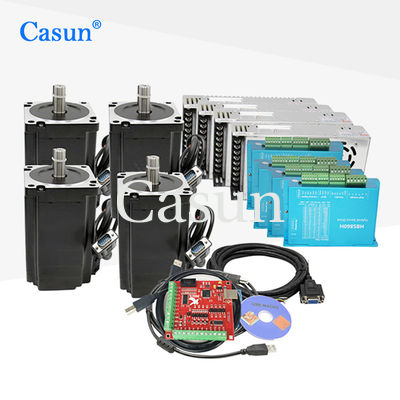

NEMA 34 4.5N.m Closed Loop Stepper Motor Kit includes stepper motor, driver, PSU, and Mach3 CNC kit. The 86mm Hybrid Stepper Motor Series offers powerful holding torque in various sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution.

High torque and high precision
Ideal for high-tech industry and electronic industry equipment
Available in single or double shaft versions
12 years of manufacturing experience serving over 800 customers
Professional research and development manufacturing

Product Images

Motor Specifications

Step Angle	1.8°
Frame Size	86mm
Number of Phase	2 Phase
Rated Current	4.2 A
Holding Torque	4.5N.m
Motor Weight	2.5 kg
Number of Leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20°C to 50°C

Storage Temperature: -20°C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130°C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Rated Current	Resistance per phase	Inductance per phase	Detent torque	Rotor inertia	Lead wire	Motor length
60SHD4201	650 mN.m	0.6 A	15 Ω	20 mH	50 mN.m	280 g.cm²	4	45 mm
60SHD4401	1500 mN.m	2.8 A	1 Ω	3.3 mH	70 mN.m	450 g.cm²	4	56 mm
60SHD4601	3200 mN.m	4.2 A	0.75 Ω	3.7 mH	120 mN.m	580 g.cm²	4	86 mm
60SHD6602	2500 mN.m	3 A	1.55 Ω	3.7 mH	120 mN.m	580 g.cm²	4	-

Applications & Options

Close-loop stepper motors are particularly useful in applications where precise positioning is critical, such as CNC machines, 3D printers, robotics, and automation systems. They offer improved performance, higher torque at high speeds, and reduced position errors compared to traditional open-loop stepper motors.

Encoder

Brake

Gearbox

Shaft
