Hot sale NEMA 34 8.5N.m 3 Axis Closed Loop Stepper Motor Kits With Magnetic Encoder For CNC Machines

Hot sale NEMA 34 8.5N.m 3 Axis Closed Loop Stepper Motor Kits With Magnetic Encoder For CNC Machines

Brand Name:	Casun
Model Number:	86HS8N+HB860H
MOQ:	1PC
Price:	$120-$450
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Step Angel:

1.8°

Holding Torque:

8.5N.m

Current:

4.5A

Motor Length:

112mm

Shaft:

33mm Length

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

3 Axis Closed Loop Stepper Motor

NEMA 34 Closed Loop Stepper Motor

Product Description

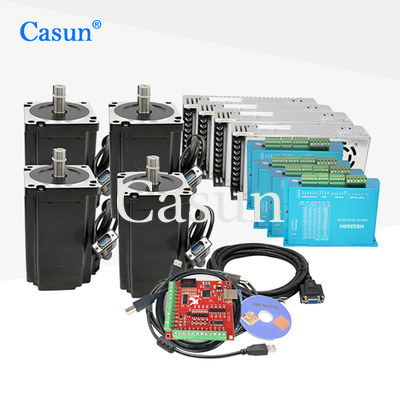

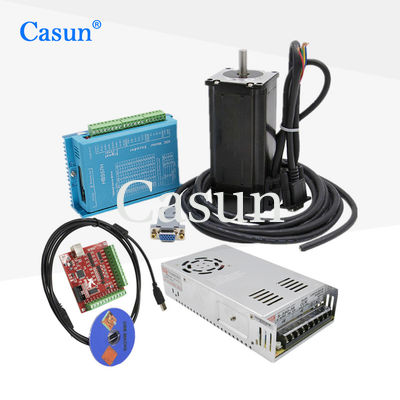

Hot Sale NEMA 34 8.5N.m 3 Axis Closed Loop Stepper Motor Kits With Magnetic Encoder For CNC Machines

NEMA 34 8.5N.m 3 axis closed loop stepper motor kits with magnetic encoder for CNC machines provide high-performance motion control solutions for precision manufacturing applications.

Product Overview

NEMA 34 refers to a standard size for stepper motors, with a mounting flange size of 3.4 inches (86 mm). The "8.5N.m" specification indicates the holding torque of the motor, which measures its ability to maintain position when subjected to external forces.

A 3-axis closed-loop stepper motor kit with a magnetic encoder is designed for CNC (Computer Numerical Control) machines. Closed-loop stepper systems incorporate feedback mechanisms, such as encoders, to monitor the position of the motor shaft and provide feedback to the control system. This allows for more accurate positioning and greater resistance to stalling or losing steps compared to open-loop stepper systems.

The magnetic encoder is a position sensor that uses magnets and Hall effect sensors to detect the position of the motor shaft. It provides precise feedback on the motor's position, allowing the control system to make real-time adjustments and ensure accurate movements.

Key Features

High torque and high precision performance
Ideal for high-tech industry and electronic industry equipment
Available in single or double shaft versions
12 years of manufacturing experience serving over 800 customers
Professional research and development capabilities

Appearance

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	86mm
Number of Phase	2 Phase
Rated Current	4.5 A
Holding Torque	8.5N.m
Resistance	1.1 ohm
Inductance	7.5 mH
Rotor Inertia	3600 g-cm²
Motor Weight	1.6 kg
Number of Leads	4
Connection	Bipolar

Operating Specifications

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Rated Current	Resistance per phase	Inductance per phase	Detent torque	Rotor inertia	Lead wire	Motor length
60SHD4201	650 mN.m	0.6 A	15 Ω	20 mH	50 mN.m	280 g.cm²	4 No.	45 mm
60SHD4401	1500 mN.m	2.8 A	1 Ω	3.3 mH	70 mN.m	450 g.cm²	4 No.	56 mm
60SHD4601	3200 mN.m	4.2 A	0.75 Ω	3.7 mH	120 mN.m	580 g.cm²	4 No.	86 mm
60SHD6602	2500 mN.m	3 A	1.55 Ω	3.7 mH	120 mN.m	580 g.cm²	4 No.

Customization Available

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.

Available Options

Encoder

Brake

Gearbox

Shaft

Get a Quote
