Product Details
Place of Origin: CHINA
Brand Name: Casun
Certification: CE,ROHS,ISO
Model Number: 46SHY4401-2A1
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: $9.68-13.46
Packaging Details: Carton:36x29x14cm
Delivery Time: 7-15 days
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Body: |
11.5mm |
Step Angle: |
1.8° |
Holding Torque: |
52mN.m |
Mass: |
100g |
Customized: |
The Motor Can Be Designed &manufactured With Customized Request. |
Body: |
11.5mm |
Step Angle: |
1.8° |
Holding Torque: |
52mN.m |
Mass: |
100g |
Customized: |
The Motor Can Be Designed &manufactured With Customized Request. |

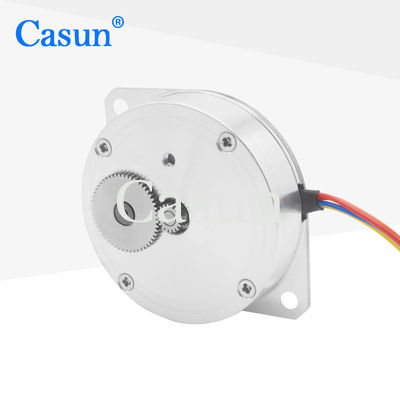

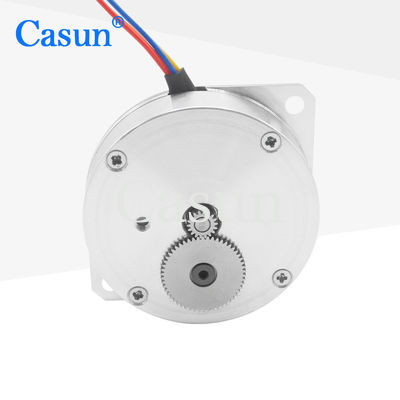

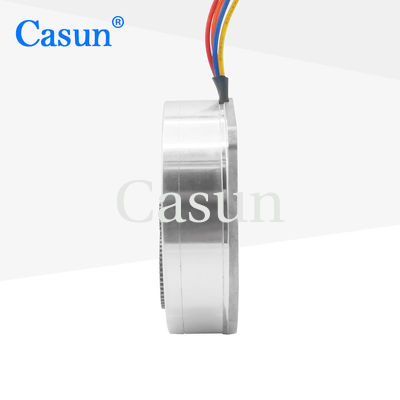

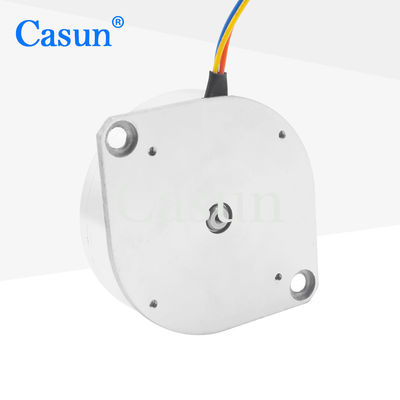

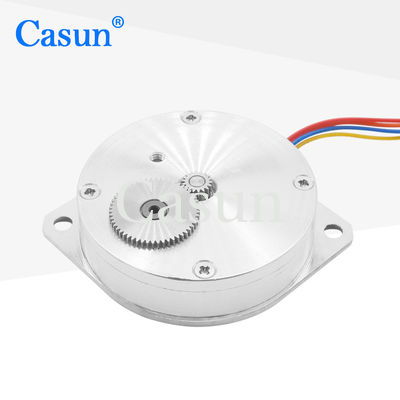

Bipolar Micro Flat Stepper Motor 15MN.M Nema 11 Stepper Motor Flat
The motion process of a 46mm flat stepper motor is usually very smooth, which helps to reduce vibration and noise
To lessen vibration and produce a greater step resolution, use with a microstepping driver.
Features:
Step Angel
|
1.8 ° |
Fram Size
|
46 mm |
Number of Phase
|
2 Phase |
Rated Current
|
1.0 A |
Holding Torque
|
52 mN.m |
Resistance
|
- |
Inductance
|
1.7 mH |
Rotor Inertia
|
7 g-cm² |
Motor weight
|
0.1 kg |
Number of leads
|
4 |
Connection
|
Bipolar |
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
Model | Motor Length | Current | Holding Torque | |
P28SHD4611 | 9.5mm | 0.5A | 16mN.m | |
P28SHD4701 | 10.6mm | 0.5A | 20mN.m | |
P28SHD4750 | 13-15mm | 0.5A | 25mN.m | |
P28SHD4950 | 17.9mm | 0.5A | 35mN.m | |
