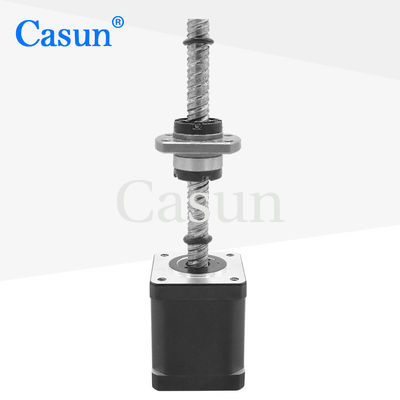

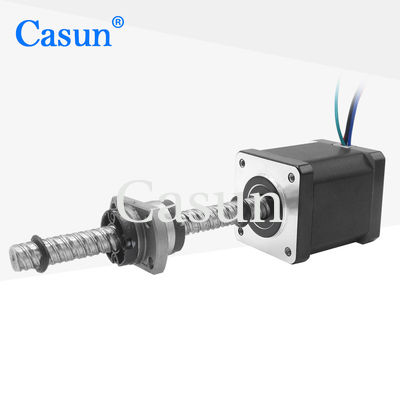

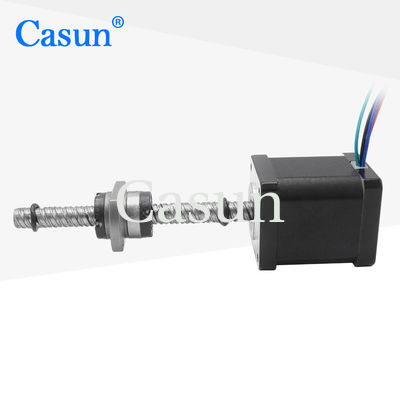

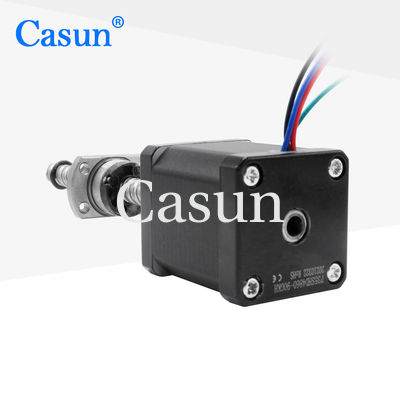

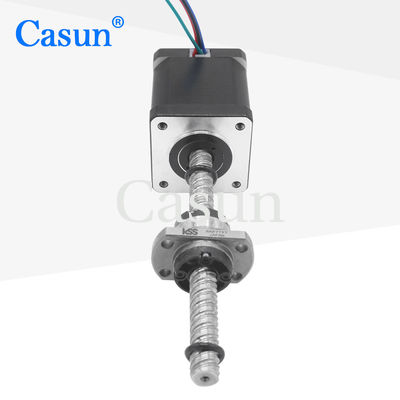

1.8° Angel NEMA 14 Stepper Motor With Lead Screw 0.36N.M Tr8*8

name

1.8° Angel NEMA 14 Stepper Motor With Lead Screw 0.36N.M Tr8*8

Brand Name: Casun
Model Number: P35SHD4860-90GKH
MOQ: 1PC
Price: $4.14-$6.98
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
360mN.m
Helical Pitch:
Tr8*8
Motor Length:
46mm
Shaft:
Ball Screw Shaft 90mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

1.8° Angel NEMA 14 Stepper Motor

,

Lead Screw NEMA 14 Stepper Motor

Product Description

The rigidity of the ball screw transmission mechanism is relatively high, which can reduce the mechanical clearance during the transmission process.

Small automation systems, water pumps, electric door locks, image scanners



Features:

  • Bipolar or unipolar versions available

  • Dealers are actively sought!

  • Our engineers will be in touch within 48 hours to provide the best solution

  • High-tech industry and electronic industry equipment necessitate multiple international certifications

  • We are dedicated to professional research and development and manufacturing





Motor Specifications

Step Angel

1.8 °

Fram Size

35 mm

Number of Phase

2 Phase

Rated Current

1.5 A

Holding Torque

360 mN.m

Resistance

2.7 ohm

Inductance

3.2 mH

Rotor Inertia

35 g-cm²

Motor weight

0.35 kg

Number of leads

4

Connection

Bipolar



Appearance



1.8° Angel NEMA 14 Stepper Motor With Lead Screw 0.36N.M Tr8*8 0

Dimensions

1.8° Angel NEMA 14 Stepper Motor With Lead Screw 0.36N.M Tr8*8 1





Torque Curves



















Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.
