2 Phase 1.8 Degree NEMA 11 Non Captive Stepper Motor Tr5X4 With CE ROHS

name

2 Phase 1.8 Degree NEMA 11 Non Captive Stepper Motor Tr5X4 With CE ROHS

Brand Name: Casun
Model Number: 28SHD0202-75TL
MOQ: 1PC
Price: $9.94-$12.8
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Body:
33mm
Current:
0.67Amp
Holding Torque:
50mN.m
Voltage:
3.75 VDC
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:38x29xc14m
Highlight:

NEMA 11 Non Captive Stepper Motor

,

2 Phase Non Captive Stepper Motor

Product Description

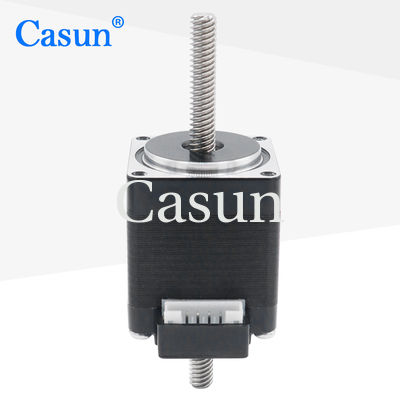

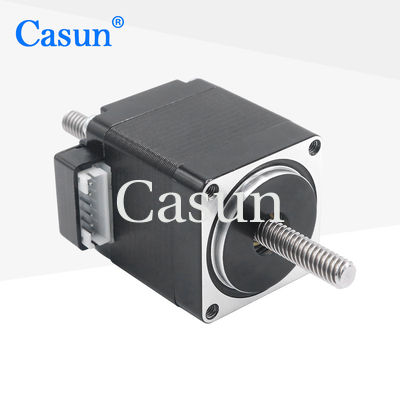

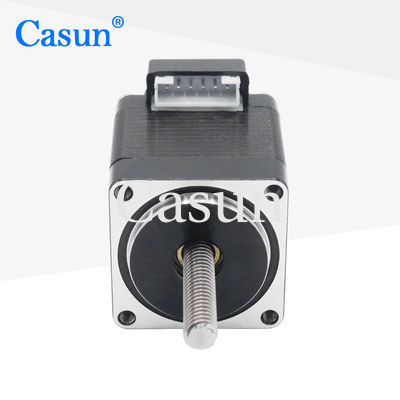

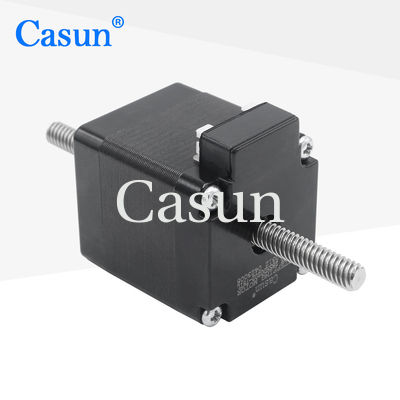

2 Phase 1.8 Degree NEMA 11 Non Captive Stepper Motor Tr5X4 With CE ROHS

The NEMA 11 through screw stepper motor can convert rotational motion into linear motion.

Combined with the screw drive device, precise linear displacement and positioning can be achieved.



Features:

  • Bipolar or unipolar versions available

  • Dealers are actively sought!

  • Our engineers will be in contact within 48 hours to provide the most optimal solution

  • Each model of our stepper motor is suitable for various applications

  • Customizations on request





Motor Specifications





Step Angel



 1.8 °

Fram Size



 28mm

Number of Phase



 2 Phase

Rated Current



 0.67Amp

Holding Torque



 50 mN.m

Resistance



 5.6 ohm

Inductance



 3.9mH

Rotor Inertia



 9g-cm²

Motor weight



 0.12kg

Lead Screw



 Tr5X4

Connection



Bipolar

Dimensions

2 Phase 1.8 Degree NEMA 11 Non Captive Stepper Motor Tr5X4 With CE ROHS 0


















Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N







Torque Curves





Submodels






Download





If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

2 Phase 1.8 Degree NEMA 11 Non Captive Stepper Motor Tr5X4 With CE ROHS 1 2 Phase 1.8 Degree NEMA 11 Non Captive Stepper Motor Tr5X4 With CE ROHS 2 2 Phase 1.8 Degree NEMA 11 Non Captive Stepper Motor Tr5X4 With CE ROHS 3 2 Phase 1.8 Degree NEMA 11 Non Captive Stepper Motor Tr5X4 With CE ROHS 4





Please click the "Get  a quote" button below to tell us your requirements.











Tags:

Nema11 Non Captive Stepper Motor

Through Screw Non Captive Stepper Motor

Casun stepper motor for milling machine
