Nema 17 Linear Actuator Stepper Motor For Mechanical Transportation

Nema 17 Linear Actuator Stepper Motor For Mechanical Transportation

Brand Name:	Casun
Model Number:	28SHD4207-188TT
MOQ:	1PC
Price:	$9.94-$15
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Color:

Black

Current:

0.8Amp

Holding Torque:

80mN.m

Lead Screw:

Tr5×2

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29xc14m

Highlight:

Linear Actuator Stepper Motor

Nema 17 Linear Actuator Stepper Motor

Product Description

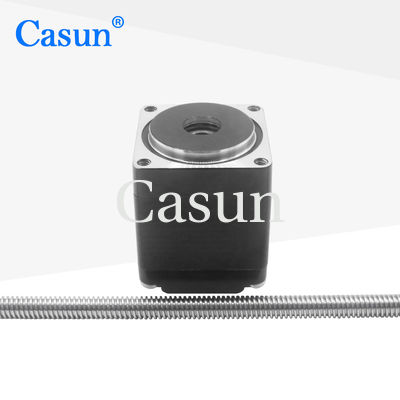

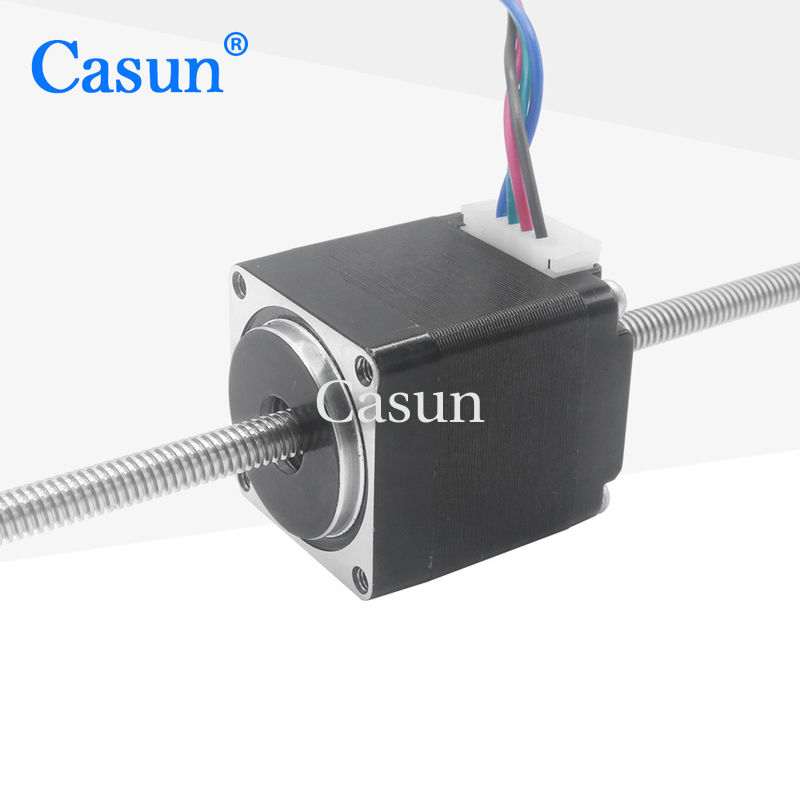

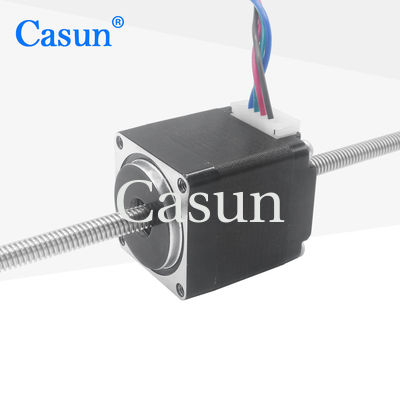

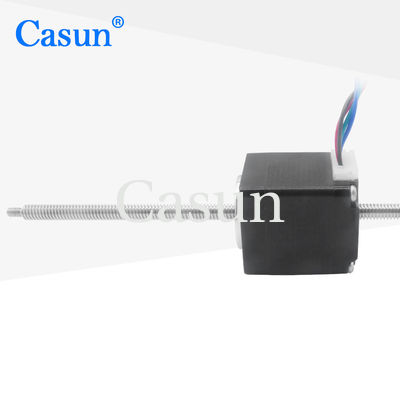

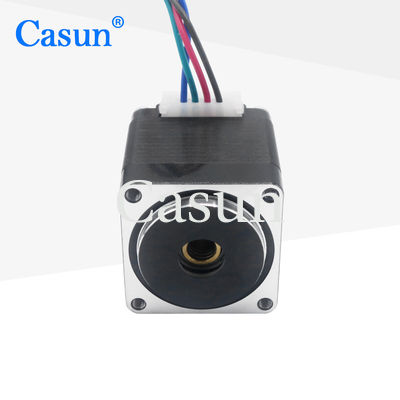

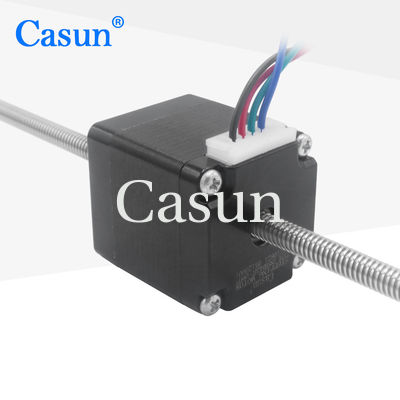

Nema 17 Linear Actuator Stepper Motor For Mechanical Transportation

The screw mechanical transmission can convert the rotational motion of the motor into linear motion, providing higher torque output.

The NEMA 17 through screw stepper motor can provide more stable and reliable performance.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Our engineers will reach out to you within 48 hours to offer the optimal solution
CE and RoHS approved
We provide customized services and are open to contract manufacturing

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	28mm
Number of Phase	2 Phase
Rated Current	0.8Amp
Holding Torque	80mN.m
Resistance	5.8ohm
Inductance	4.1mH
Rotor Inertia	9g-cm²
Motor weight	0.12kg
Lead Screw	Tr5X2
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Body Length	Diameter of Screw	Pitch	Length of Screw
20 mm 34 mm 40 mm 48 mm 60 mm	5	2	20-1000 mm
		8
	6.35	1.27
		3.175
		6.35
	6.5	3
		6.35
	8	1
		2
		4
		8
		12

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Nema 17 Linear Actuator Stepper Motor For Mechanical Transportation 1

Please click the "Get a quote" button below to tell us your requirements.

Tags:

Nema11 Non Captive Stepper Motor

Through Screw Non Captive Stepper Motor

Casun stepper motor for milling machine

1.8 Degree Lead Screw Motor Mini Hybrid NEMA 11 Non Captive Stepper Motor Tr5×4

Get Best Price

20mmx20mm Nema 8 Non Captive Stepper Motor For STM CNC Milling Machine

Get Best Price

Casun SMT Nema11 Non Captive Stepper Motor For CNC Milling Machine

Get Best Price

Nema 8 1.8 Degree Non Captive DC Stepper Motor 27mm Body 0.5A For Beauty Equipment

Get Best Price

NEMA 8 Non Captive Stepping Motor For 15mN.m Educational Robots

Get Best Price

DC Linear NEMA 23 Hollow Shaft Stepper Motor 100mm Body 4.5A Nc Machine

Get Best Price

80mN.M Nema11 Non Captive Stepper Motor Through Screw Lead 8mm 0.8A 4.64V

Get Best Price

2 Phase 1.8 Degree NEMA 11 Non Captive Stepper Motor Tr5X4 With CE ROHS

Get Best Price
