41mm Length Mini Step Motor Nema14 35x35x41mm 180mN.M For Medical Machine

41mm Length Mini Step Motor Nema14 35x35x41mm 180mN.M For Medical Machine

Brand Name:	Casun
Model Number:	P35SHD4807-16B
MOQ:	1PC
Price:	$4-$7
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROSH,ISO

Step Angel:

1.8°

Holding Torque:

180mN.m

Current:

0.5A

Motor Length:

41mm

Shaft:

16mm Length

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

41mm Length Mini Step Motor

Mini Step Motor Nema14

180mN.M Mini Step Motor

Product Description

41mm Length Mini Step Motor Nema14 35x35x41mm 180mN.M For Medical Machine

Casun Mini Step Motor Nema14 35x35x41mm 180mN.M Stepper Motor For Medical Machine

35x35x41mm 0.5A Casun Stepper Motor Nema 14 Mini Stepper Motor For Medical beauty equipment. Nema 14 Casun Stepper Motor 2 Phase 180mN.m 0.5A 35x35x41mm Stepping Motor for Medical machine.

Motor Specifications

Specification	Value
Step Angle	1.8°
Frame Size	35 mm
Number of Phase	2 Phase
Rated Current	0.5A
Holding Torque	180 mN.m
Resistance	100 ohm
Inductance	5.8 mH
Rotor Inertia	35 g-cm²
Motor Weight	0.15 kg
Number of Leads	0
Connection	Bipolar

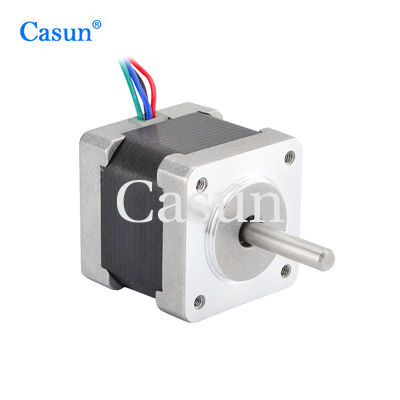

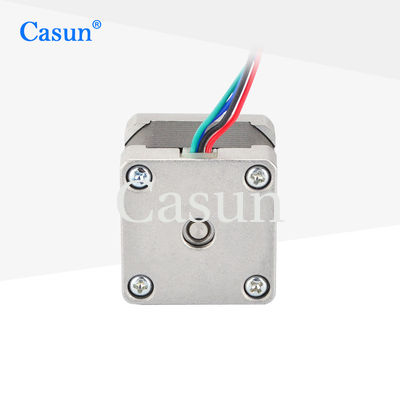

Appearance

Dimensions

The Nema 14 Casun stepper motor you mentioned is a specific model of stepper motor manufactured by Casun. Here are the specifications you provided:

Motor Type: 2-phase stepper motor
Torque: 180mN.m (millinewton-meter)
Current: 0.5A (Amperes)
Dimensions: 35x35x41mm (width x depth x height)

This particular stepper motor is designed for use in medical machines, which suggests it may be used in applications where precise and controlled movements are required. Stepper motors are commonly used in various industries and applications, including robotics, automation, 3D printers, and CNC machines.

Download

Custom Motor Solutions

If our standard motor cannot meet your needs, we can customize the motor according to your requirements.

Customized content includes but is not limited to:

Special shafts
Winding parameters
Installation dimensions
Lead wires with special requirements
Connectors

Available Options:

Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.

Get a Quote
