Small Size 0.6A hybrid Stepping Motor Nema 8 Stepper Motor 40mN.M For Beauty Machine

Small Size 0.6A hybrid Stepping Motor Nema 8 Stepper Motor 40mN.M For Beauty Machine

0.6A Hybrid Stepping Motor

Nema 8 Hybrid Stepping Motor

Small Nema 8 Stepper Motor

Place of Origin:

China

Brand Name:

CASUN

Certification:

CE,ROHS,ISO

Model Number:

20SHD0255-15B2

Contact Us

Request A Quote
Product Details
Current Per Phase:
0.6A
Holding Torque:
40mN.m
Inductance:
5.5mH
Insulation Class:
B
Length:
38mm
Motor Type:
NEMA 8 Stepper Motor
Resistance:
12.5Ω
Rotor Inertia:
3.8g.cm²
Shaft Diameter:
4mm
Shaft Length:
15mm
Step Angle:
1.8°
Voltage:
7.5V
Payment & Shipping Terms
Minimum Order Quantity
1pcs-10pcs
Price
US $7.00 - 11.50/ Piece
Packaging Details
Carton:38x29xc14m
Delivery Time
7-15 workdays
Payment Terms
L/C, D/A, T/T
Supply Ability
100000pcs / month
RELATED PRODUCTS
Contact Us
86-020-36907671
Contact Now
Product Description

Hot Sale Small Size 0.6A Stepping Motor Nema 8 Stepper Motor 40mN.M For Beauty Machine

Micro 20*38mm 0.6A Bipolar Nema 8 Stepper Motor 2 Phase 7.5V Stepper Motor for Video conference machine



2 Phase-7.5V Nema 8 Bipolar 1.8 degree Stepping Motor 20x20x38mm 40mN.m 0.6A for Video conference machine

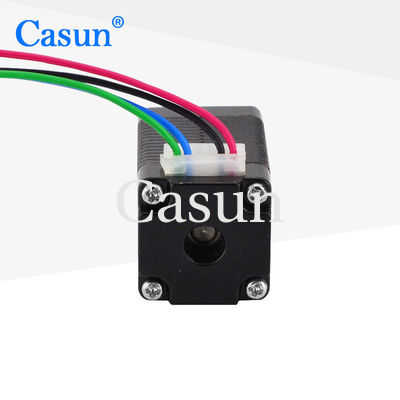

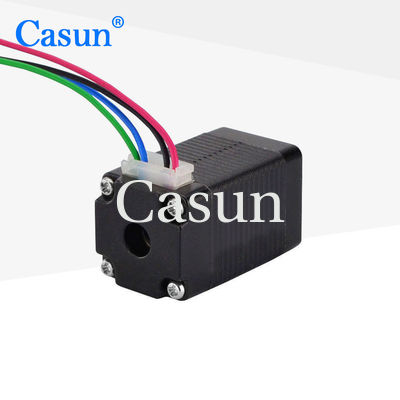

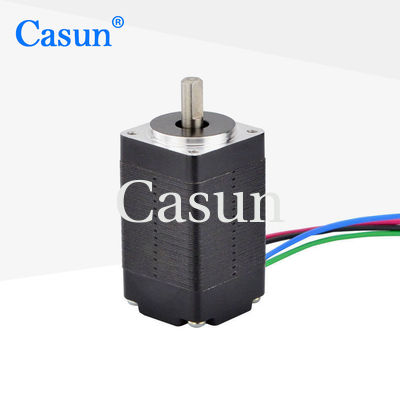

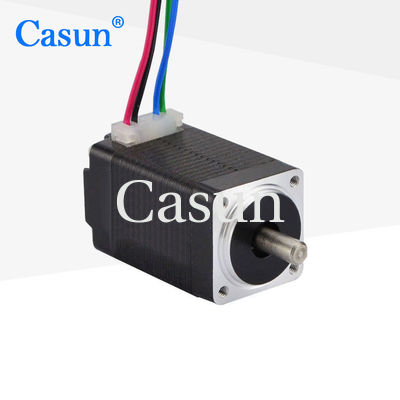

Appearance



Small Size 0.6A hybrid Stepping Motor Nema 8 Stepper Motor 40mN.M For Beauty Machine 0

Dimensions

Small Size 0.6A hybrid Stepping Motor Nema 8 Stepper Motor 40mN.M For Beauty Machine 1





Motor Specifications

Step Angel

1.8 °

Fram Size

20 mm

Number of Phase

2 Phase

Rated Current

0.6 A

Holding Torque

40 mN.m

Resistance

12.5 ohm

Inductance

5.5 mH

Rotor Inertia

3.8 g-cm²

Motor weight

0.08 kg

Number of leads

4

Connection

Bipolar









Torque Curves



















Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

FAQ

1. who are we?

We are based in Guangdong, China, start from 2011,sell to Domestic Market(63.00%),Western Europe(12.00%),North America(9.00%),Eastern Asia(8.00%),Northern Europe(2.00%),Eastern Europe(00.00%),Southeast Asia(00.00%),Oceania(00.00%),Mid East(00.00%),Southern Europe(00.00%),South Asia(00.00%). There are total about 51-100 people in our office.



2. how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;



3.what can you buy from us?

Stepper Motor,BLDC Motor



4. why should you buy from us not from other suppliers?

We are specialized in producing and selling stepper motors for more than 11 years.



5. what services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;

Accepted Payment Currency:USD,CNY;

Accepted Payment Type: T/T,L/C,D/P D/A,,PayPal;

Language Spoken:English,Chinese,Japanese

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
