4 Wiring 16mm Shaft Length Nema 8 Step Motor For Precision Instruments

4 Wiring 16mm Shaft Length Nema 8 Step Motor For Precision Instruments

Brand Name:	CASUN
Model Number:	20SHD4253-16
MOQ:	1pcs-10pcs
Price:	US $6.94 - 11.00/ Piece
Payment Terms:	L/C, D/A, T/T
Supply Ability:	100000pcs / month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Connector Type:

4 Wiring

Current:

0.5A

Holding Torque:

38mN.m

Inductance:

4.5mH

Length:

38mm

Name:

NEMA 8 Stepper Motor

Resistance:

11.5Ω

Shaft Diameter:

4mm

Shaft Length:

16mm

Step Angle:

1.8°

Voltage:

5.75V

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29xc14m

Highlight:

16mm Shaft Nema 8 Step Motor

4 Wiring Nema 8 Step Motor

Product Description

4 Wiring 16mm Shaft Length Nema 8 Step Motor For Precision Instruments

Compact Nema 8 stepper motor designed for precision instruments and robotics applications. Features 4-wire bipolar configuration with 16mm shaft length and high torque output in a miniature form factor.

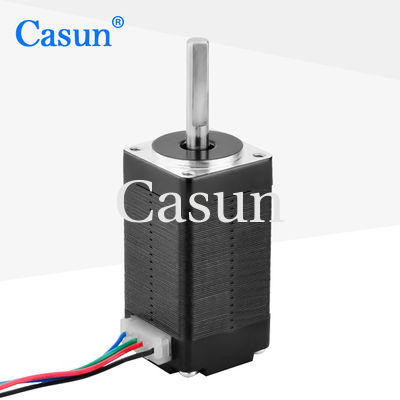

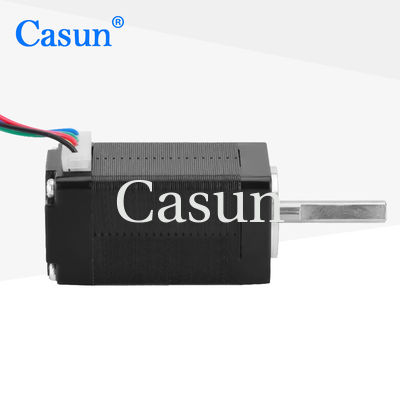

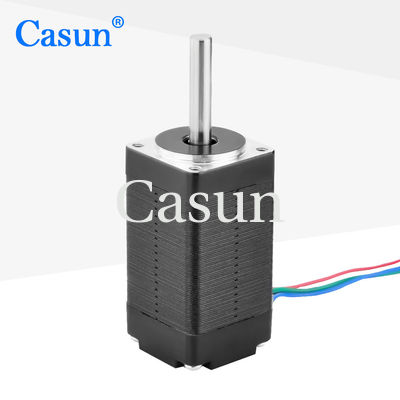

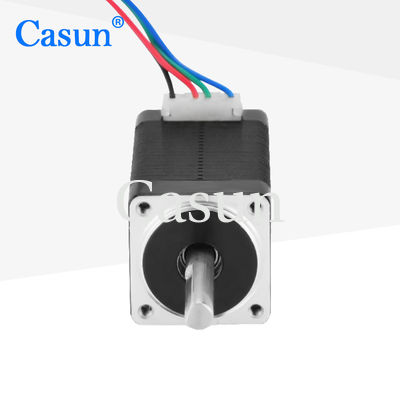

Product Appearance

Motor Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	20 mm
Number of Phase	2 Phase
Rated Current	0.6 A
Holding Torque	38 mN.m
Resistance	11.5 ohm
Inductance	4.5 mH
Rotor Inertia	3.8 g-cm²
Motor Weight	0.08 kg
Number of Leads	4
Connection	Leading

Key Features

Compact Size

20×20×38mm dimensions

High Precision

1.8° step angle

Reliable Performance

38 mN.m holding torque

Easy Integration

4-wire bipolar configuration

Applications

Precision instruments
Robotics and automation
Medical devices
Optical equipment
Small-scale CNC systems

Customization Options Available

Encoder

Brake

Gearbox

Connector

We can customize motors with special shafts, winding parameters, installation dimensions, lead wires, and connectors to meet your specific requirements.

Get a Quote

Quality Assurance

Pre-production samples provided before mass production
Final inspection conducted before shipment
11+ years of stepper motor manufacturing expertise
