7.5V Cut Shaft 15mm Nema 8 Stepper Motor 40mN.M For Office Automation

7.5V Cut Shaft 15mm Nema 8 Stepper Motor 40mN.M For Office Automation

Brand Name:	CASUN
Model Number:	20SHD0255-15B2
MOQ:	1pcs-10pcs
Price:	US $6.94 - 11.00/ Piece
Payment Terms:	L/C, D/A, T/T
Supply Ability:	100000pcs / month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Connector Type:

4 Wiring

Current:

0.6A

Holding Torque:

40mN.m

Inductance:

5.5mH

Length:

38mm

Name:

NEMA 8 Stepper Motor

Resistance:

12.5Ω

Shaft Diameter:

4mm

Shaft Length:

15mm

Step Angle:

1.8°

Voltage:

7.5V

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29xc14m

Highlight:

7.5V Nema 8 Stepper Motor

15mm Shaft Nema 8 Stepper Motor

Product Description

7.5V Cut Shaft 15mm Nema 8 Stepper Motor 40mN.M For Office Automation

7.5V Motor Paso A Paso D Cut Shaft 15mm Nema 8 Stepper Motor 40mN.M For Office Automation. Micro 5.4V 2 Phase 0.6A Bipolar Nema 8 Stepper Motor for Robotics, 20*20*38mm.

Robotic Stepper Motor, 20x20x38mm, 32mN.m. Nema 8 2-phase, 4-wiring, 5.4-volt.

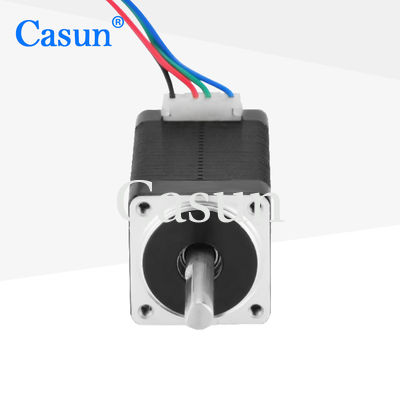

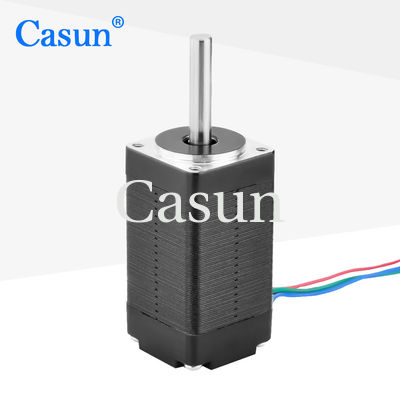

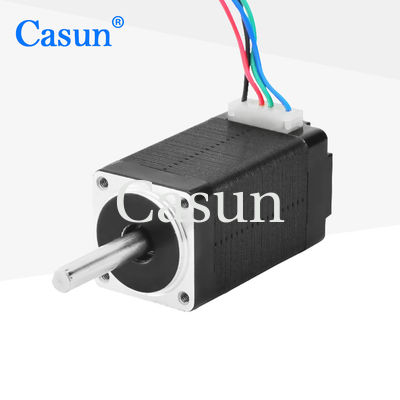

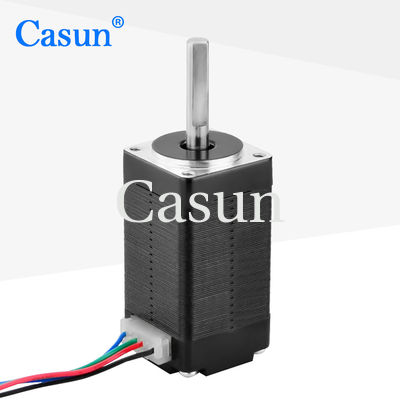

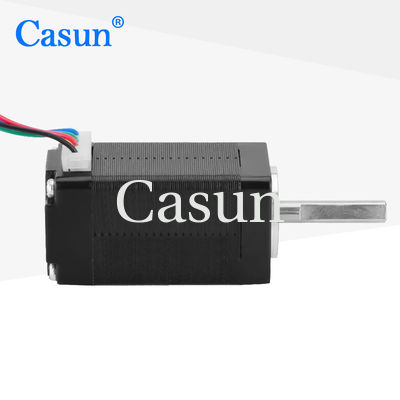

Appearance

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	20 mm
Number of Phase	2 Phase
Rated Current	0.6 A
Holding Torque	40 mN.m
Resistance	12.5 ohm
Inductance	5.5 mH
Rotor Inertia	3.8 g-cm²
Motor Weight	0.08 kg
Number of Leads	4
Connection	Leading

Torque Curves

Torque curve data available upon request.

Customization Options

If your needs can't be met by our regular motor, we may modify the motor to meet your demands.

Special shafts, winding parameters, installation measurements, lead wires with unique specifications, connections, etc. are only a few examples of customized content.

Available Options

Encoder

Brake

Gearbox

Connector

Get a quote

Frequently Asked Questions

Who are we? We are based in Guangdong, China, starting from 2011. We sell to Domestic Market (63.00%), Western Europe (12.00%), North America (9.00%), Eastern Asia (8.00%), and other global markets. Our office has 51-100 people.
How can we guarantee quality? Always a pre-production sample before mass production; Always final inspection before shipment.
What can you buy from us? Stepper Motor, BLDC Motor.
Why should you buy from us? We are specialized in producing and selling stepper motors for more than 11 years.
What services can we provide? Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery; Accepted Payment Currency: USD, CNY; Accepted Payment Type: T/T, L/C, D/P D/A, PayPal; Languages Spoken: English, Chinese, Japanese.
