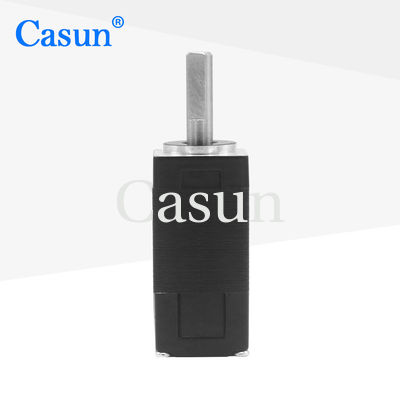

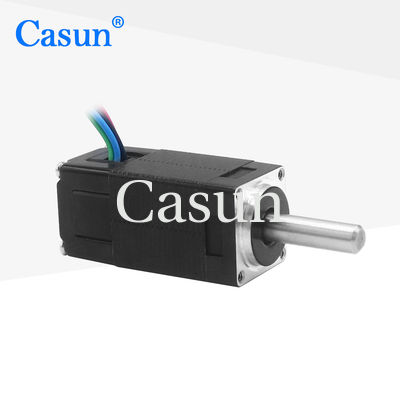

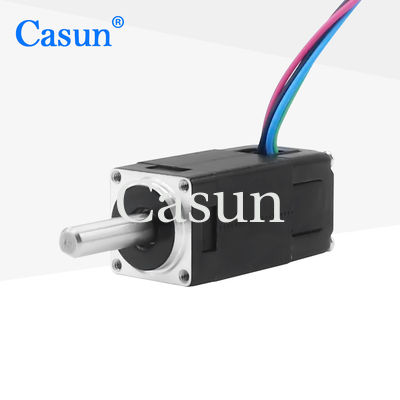

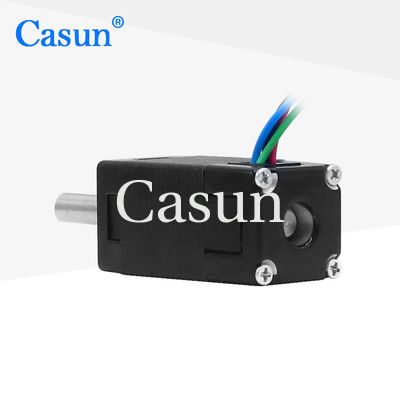

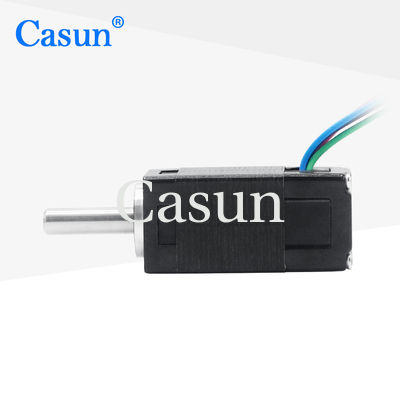

14*14mm 2 Phase Nema 6 Bipolar Stepper Motor For Teleconferencing Equipment

name

14*14mm 2 Phase Nema 6 Bipolar Stepper Motor For Teleconferencing Equipment

Brand Name: CASUN
Model Number: 14SHD4001-15B
MOQ: 1pcs-10pcs
Price: US $17.00 - 20.00/ Piece
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 100000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angle:
1.8degree
Phase:
2
Rated Voltage:
6.6V
Rate Current:
0.3A
Holding Torque:
5.8mN.m
Weight:
0.03kg
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:38x29xc14m
Highlight:

2 Phase Bipolar Stepper Motor

,

Nema 6 Bipolar Stepper Motor

Product Description
14×14mm 2 Phase Nema 6 Bipolar Stepper Motor For Teleconferencing Equipment
Product Overview

Compact 14×14mm Nema 6 stepper motor specifically designed for teleconferencing equipment applications. This bipolar 2-phase motor features a black finish and CE certification, delivering reliable performance in space-constrained environments.

Appearance

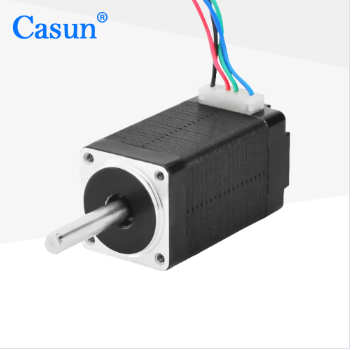

14×14mm Nema 6 Stepper Motor - Front View
Dimensions
14×14mm Nema 6 Stepper Motor - Dimensional Drawing
Motor Specifications
Parameter Value
Step Angle 1.8°
Frame Size 14 mm
Number of Phase 2 Phase
Rated Current 0.3 A
Holding Torque 5.8 mN.m
Resistance 22 ohm
Inductance 4 mH
Rotor Inertia 5.8 g-cm²
Motor Weight 0.03 kg
Number of Leads 4
Connection Bipolar
Available Options
Encoder
Brake
Gearbox
Connector
Customization Services

If our standard motor cannot meet your requirements, we offer comprehensive customization services including:

  • Special shaft configurations
  • Custom winding parameters
  • Modified installation dimensions
  • Specialized lead wires and connectors
Company Information
  • Location: Guangdong, China
  • Established: 2011
  • Markets: Domestic (63%), Western Europe (12%), North America (9%), Eastern Asia (8%)
  • Employees: 51-100 people
Quality Assurance
  • Pre-production samples before mass production
  • Final inspection before shipment
Payment & Delivery
  • Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery
  • Payment Methods: T/T, L/C, D/P D/A, PayPal
  • Accepted Currency: USD, CNY
  • Languages: English, Chinese, Japanese
Please click the "Get a quote" button below to tell us your requirements
