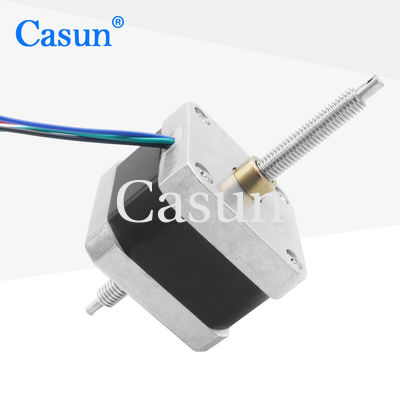

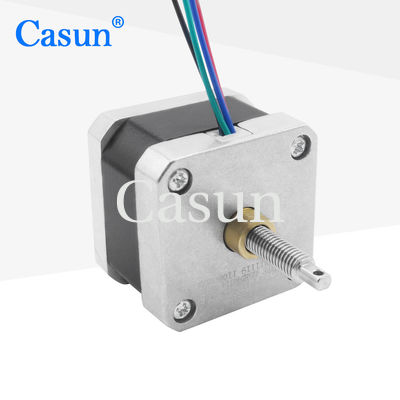

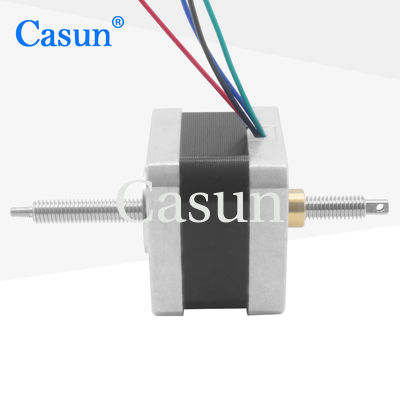

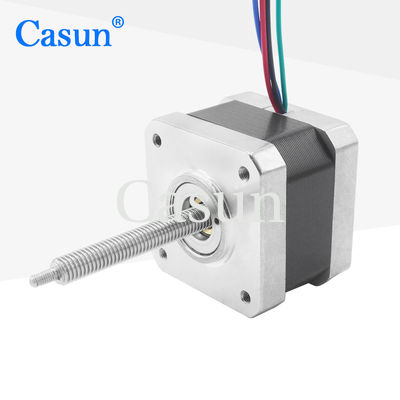

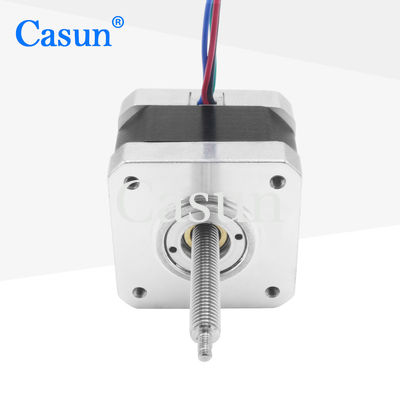

NEMA 17 Non Captive Stepper Motor 1.8 Degree 1.5A 0.26N.M For 3D Printer Automation

NEMA 17 Non Captive Stepper Motor 1.8 Degree 1.5A 0.26N.M For 3D Printer Automation

Brand Name:	Casun
Model Number:	42SHD40114-96TP1
MOQ:	1PC
Price:	$15-$18
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Steper Angle:

1.8 Degree

Phase:

Rated Voltage:

3.0V

Current:

1.2A

Holding Torque:

260mN.m

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29xc14m

Highlight:

NEMA 17 Non Captive Stepper Motor

1.5A Non Captive Stepper Motor

0.26N.M Non Captive Stepper Motor

Product Description

NEMA 17 Non Captive Stepper Motor

1.8 Degree, 1.5A, 0.26N.M for 3D Printer and Automation Applications

Product Overview

This NEMA 17 stepper motor features high resolution with 1.8° step angles for precise position control. Designed specifically for 3D printers and automation systems, it delivers reliable performance in various industrial applications.

Key Features

Professional drivetrain solution specialist
Numerous international certifications available
Models designed for different application scenarios
Engineering support within 48 hours
Customizations available upon request

Dimensions

Motor Specifications

Parameter	Value
Step Angle	1.8°
Frame Size	42 mm
Number of Phase	2 Phase
Rated Current	1.2A
Holding Torque	260 mN.m
Resistance	2.5 ohm
Inductance	3.3 mH
Rotor Inertia	38 g·cm²
Motor Weight	0.2 kg
Connection	Bipolar

Operating Specifications

Parameter	Value
Maximum Temperature	80°C
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min
Shaft Radial Play	0.02 Max. (450g-load)
Shaft Axial Play	0.08 Max. (450g-load)
Max. Radial Force	28N (20mm from flange)
Max. Axial Force	10N

Available Models

Model	Holding Torque	Step Angle	Motor Length	Shaft Type	Rated Current
42SHD4950	0.13 N.m	1.8°	20 mm	D Shaft-20mm	1.0 A
42SHD4003	0.26 N.m	1.8°	34 mm	D Shaft-20mm	0.4 A
42SHD0261	0.45 N.m	1.8°	40 mm	D Shaft-20mm	1.68 A
42SHD4425	0.59 N.m	1.8°	48 mm	D Shaft-24mm	2.0 A
42SHD4813	0.8 N.m	1.8°	60 mm	D Shaft-24mm	2.1 A

Customization Options

If our standard motors cannot meet your requirements, we can customize motors according to your specific needs including special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.

Encoder

Brake

Gearbox

Shaft

Frequently Asked Questions

Who are we?

Based in Guangdong, China since 2011. We employ 51-100 people and serve markets worldwide including Domestic Market (63%), Western Europe (12%), North America (9%), and Eastern Asia (8%).

How do we guarantee quality?

Pre-production samples before mass production and final inspection before shipment ensure consistent quality.

What products do we offer?

Stepper Motors and BLDC Motors.

Why choose us?

Specialized in stepper motor production for over 11 years with extensive industry expertise.

What services do we provide?

Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery. Payment: USD, CNY via T/T, L/C, D/P D/A, PayPal. Languages: English, Chinese, Japanese.
