Small NEMA 6 Stepper Motor 5.8mN.M 14*14*30mm With Video Conferencing Machine

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 14SHD4001-15B

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $3.14-$5

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price
Product Details
Highlight:

Small NEMA 6 Stepper Motor

,

5.8mN.M NEMA 6 Stepper Motor

Step Angel:
1.8°
Holding Torque:
5.8mN.m
Current:
0.3A
Motor Length:
30mm
Shaft:
Milling Flat Shaft 15mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
5.8mN.m
Current:
0.3A
Motor Length:
30mm
Shaft:
Milling Flat Shaft 15mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

NEMA 6 Stepper Motor Small 5.8mN.M 14*14*30mm With Video Conferencing Machine

NEMA 6 stepper motor with small size, high torque density, fast response, and high accuracy.

Through reasonable design and manufacturing processes, they can achieve precise positioning and reliable motion control.



Features:

  • We provide specialised services and welcome contract manufacturing

  • We have been operating in China for 12 years and have served over 800 customers

  • Available in single or double shaft versions

  • Each model of stepper motor is suitable for different scenarios

  • Our products come with a ten-year warranty, ensuring a confident purchase





Motor Specifications



Step Angel

1.8 °

Fram Size

14 mm

Number of Phase

2 Phase

Rated Current

1.2 A

Holding Torque

5.8 mN.m

Resistance

22 ohm

Inductance

4.0 mH

Rotor Inertia

5.8 g-cm²

Motor weight

0.03 kg

Number of leads

4

Connection

Bipolar

Appearance

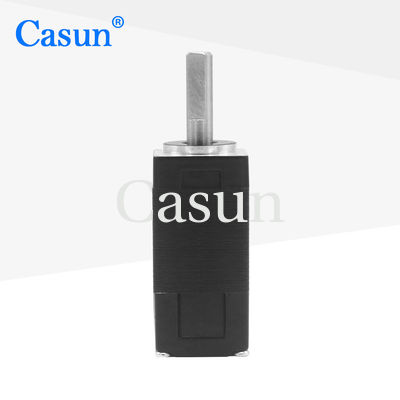

Small NEMA 6 Stepper Motor 5.8mN.M 14*14*30mm With Video Conferencing Machine 0

Dimensions

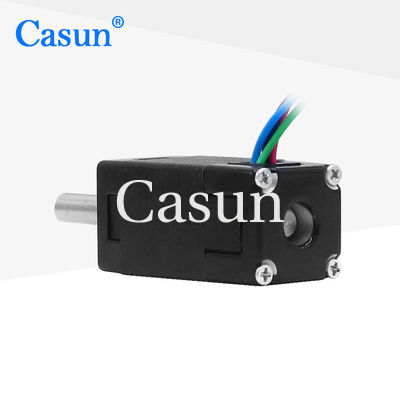

Small NEMA 6 Stepper Motor 5.8mN.M 14*14*30mm With Video Conferencing Machine 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves











Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft

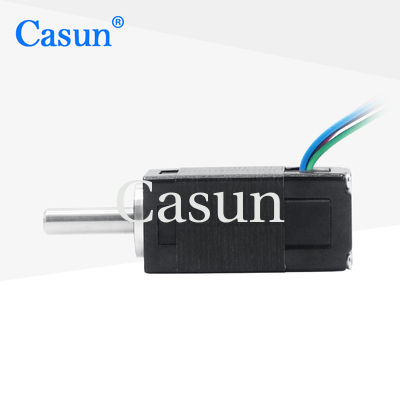

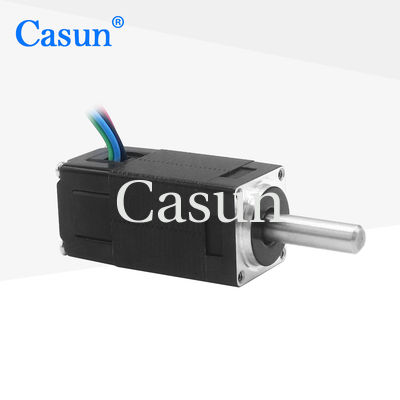

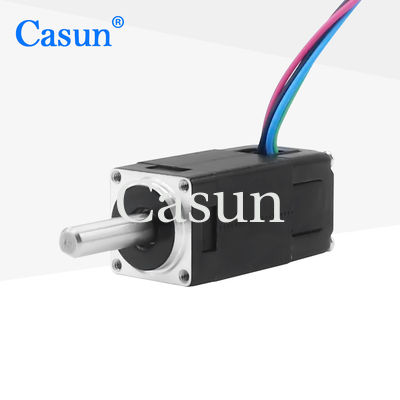

Small NEMA 6 Stepper Motor 5.8mN.M 14*14*30mm With Video Conferencing Machine 2 Small NEMA 6 Stepper Motor 5.8mN.M 14*14*30mm With Video Conferencing Machine 3 Small NEMA 6 Stepper Motor 5.8mN.M 14*14*30mm With Video Conferencing Machine 4 Small NEMA 6 Stepper Motor 5.8mN.M 14*14*30mm With Video Conferencing Machine 5



Please click the "Get a quote" button below to tell us your requirements.
