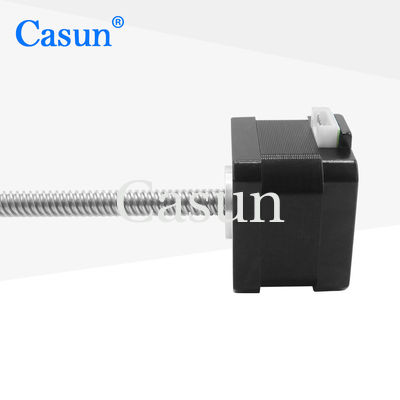

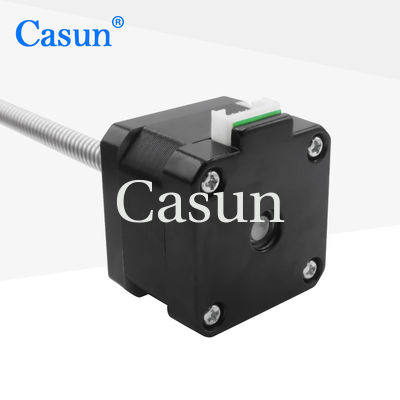

Nema 17 Tr8*8 200mm Lead Screw Electrical Linear Motor Actuator Thread 12V 28N.Cm

name

Nema 17 Tr8*8 200mm Lead Screw Electrical Linear Motor Actuator Thread 12V 28N.Cm

Brand Name: Casun
Model Number: 42SHD0003-200NKH
MOQ: 1PC
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Steper Angle:
1.8 Degree
Current:
0.4Amp
Holding Torque:
280mN.m
Screw Length:
200mm
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:38x29xc14m
Highlight:

Lead Screw Electrical Linear Motor Actuator

,

28N.Cm Linear Motor Actuator

Product Description
Nema 17 Tr8*8 200mm Lead Screw Electrical Linear Motor Actuator Thread 12V 28N.Cm
This Nema 17 linear motor actuator features a TR8×8 lead screw with 200mm length, operating at 12V with 28N.cm torque. When the external screw rod stepper motor stops rotating, it maintains a stable position and exhibits self-locking properties. Key advantages include accurate control, high torque output, self-locking characteristics, compact design, and low noise operation.
Key Features
  • Bipolar or unipolar versions available
  • Specializing in tailor-made services
  • Available in single or double shaft versions
  • Multiple international certifications for high-tech and electronic industry equipment
  • 12 years of operation in China with over 800 customers served
Dimensions
Nema 17 Tr8*8 200mm Lead Screw Electrical Linear Motor Actuator Thread 12V 28N.Cm 0
Motor Specifications
Parameter Value
Step Angle 1.8°
Frame Size 42mm
Number of Phase 2 Phase
Rated Current 0.4Amp
Holding Torque 280 mN.m
Resistance 30ohm
Inductance 37mH
Rotor Inertia 38g-cm²
Motor Weight 0.2kg
Lead Screw Tr8×8
Connection Bipolar
Operating Specifications
Parameter Specification
Step Angle 1.8°
Maximum Temperature 80°C maximum
Ambient Temperature -20°C to 50°C
Storage Temperature -20°C to 100°C
Humidity Range 85% or less, non-condensing
Magnet Wire Insulation Class B 130°C
Insulation Resistance 100M Ohm at 500 VDC
Dielectric Strength 500 VDC for 1 min
Shaft Radial Play 0.02Max. (450g-load)
Shaft Axial Play 0.08Max. (450g-load)
Max. Radial Force 28N (20mm from the flange)
Max. Axial Force 10N
Available Models
Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A
If our standard motor cannot meet your needs, we can customize the motor according to your requirements.
Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.
Customization Options
Encoder Nema 17 Tr8*8 200mm Lead Screw Electrical Linear Motor Actuator Thread 12V 28N.Cm 1
Brake Nema 17 Tr8*8 200mm Lead Screw Electrical Linear Motor Actuator Thread 12V 28N.Cm 2
Gearbox Nema 17 Tr8*8 200mm Lead Screw Electrical Linear Motor Actuator Thread 12V 28N.Cm 3
Shaft Nema 17 Tr8*8 200mm Lead Screw Electrical Linear Motor Actuator Thread 12V 28N.Cm 4
Please click the "Get a quote" button below to tell us your requirements.
