NEMA 17 Ball Screw Stepper Motor 320mN.M Linear Stepping Motor For Automation

NEMA 17 Ball Screw Stepper Motor 320mN.M Linear Stepping Motor For Automation

Brand Name:	Casun
Model Number:	42SHD00101-45GTH
MOQ:	1PC
Price:	$29.98-$34.98
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Color:

Black

Current:

1.68Amp

Weight:

0.25kg

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29xc14m

Highlight:

NEMA 17 Ball Screw Stepper Motor

Ball Screw Stepper Motor 320mN.M

Product Description

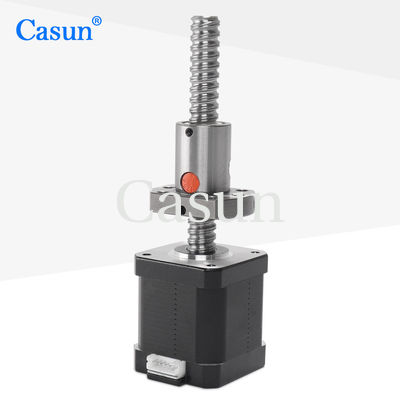

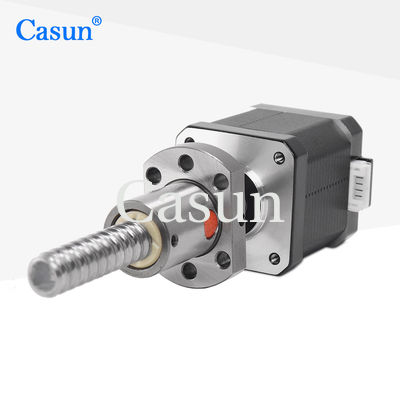

NEMA 17 Ball Screw Stepper Motor 320mN.M Linear Stepping Motor For Automation

NEMA17 Ball Screw Stepper Motor 320mN.M Linear Stepping Motor For Automation. The ball screw mechanism consists of a threaded screw shaft and a nut with ball bearings that roll between the screw and the nut. As the screw rotates, the nut moves along the screw, resulting in linear motion.

Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	42mm
Number of Phase	2 Phase
Rated Current	1.68Amp
Holding Torque	320mN.m
Resistance	1.50ohm
Inductance	2.5mH
Rotor Inertia	38g-cm²
Motor Weight	0.2kg
Lead Screw	45mm
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°
Maximum Temperature: 80°C maximum
Ambient Temperature: -20°C to 50°C
Storage Temperature: -20°C to 100°C
Humidity Range: 85% or less, non-condensing
Magnet Wire Insulation: Class B 130 deg C
Insulation Resistance: 100M Ohm at 500 VDC
Dielectric Strength: 500 VDC for 1 min
Shaft Radial Play: 0.02Max. (450g-load)
Shaft Axial Play: 0.08Max. (450g-load)
Max. radial force: 28N (20mm from the flange)
Max. axial force: 10N

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Custom Motor Solutions

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Customization Options

Get a Quote
