Ball Screw Stepper Motor
Created with Pixso.

NEMA 17 Ball Lead Screw Stepper Motor 570mN.M Stepping Motor For Automation Industry

NEMA 17 Ball Lead Screw Stepper Motor 570mN.M Stepping Motor For Automation Industry

Brand Name: Casun
Model Number: 42SHD00101-45GTH
MOQ: 1PC
Price: $29.98-$34.98
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Color:
Black
Current:
1.68Amp
Weight:
0.25kg
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:38x29xc14m
Highlight:

Ball Lead Screw Stepper Motor

,

NEMA 17 Lead Screw Stepper Motor

,

570mN.M Stepping Motor

Product Description

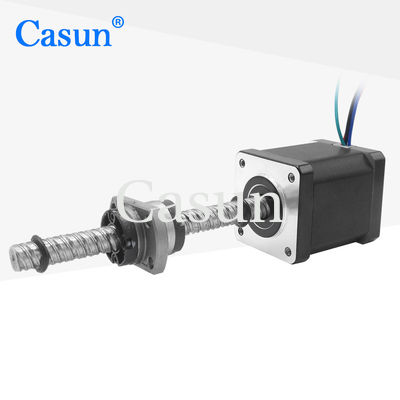

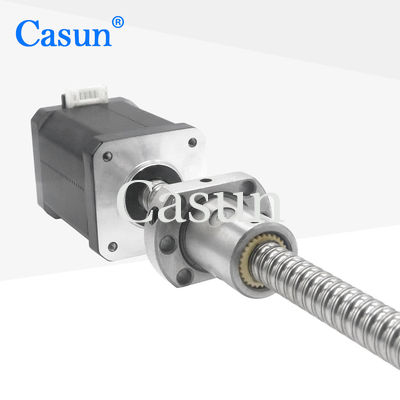

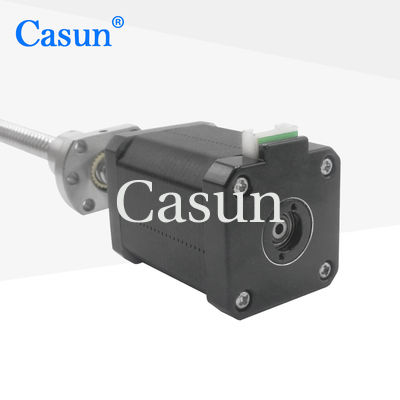

Ball Lead Screw Stepper Motor NEMA17 570mN.M Stepping Motor For Automation Industry

The torque rating of 570mN.m indicates the motor's ability to exert rotational force. This higher torque can be suitable for applications such as robotics, CNC machines, 3D printers, and other systems that require precise positioning and handling of heavier loads.

Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

NEMA 17 Ball Lead Screw Stepper Motor 570mN.M Stepping Motor For Automation Industry 0







Motor Specifications



Step Angel



1.8 °

Fram Size



42mm

Number of Phase



2 Phase

Rated Current



2Amp

Holding Torque



570mN.m

Resistance



1.50ohm

Inductance



2.5mH

Rotor Inertia



38g-cm²

Motor weight



0.67kg

Lead Screw



300mm

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N







Torque Curves





Submodels



Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Body Length Diameter of Screw Pitch Length of Screw
20 mm

34 mm

40 mm

48 mm

60 mm


5 2 20-1000 mm
8
6.35 1.27
3.175
6.35
6.5 3
6.35
8 1
2
4
8
12



Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

NEMA 17 Ball Lead Screw Stepper Motor 570mN.M Stepping Motor For Automation Industry 1 NEMA 17 Ball Lead Screw Stepper Motor 570mN.M Stepping Motor For Automation Industry 2 NEMA 17 Ball Lead Screw Stepper Motor 570mN.M Stepping Motor For Automation Industry 3 NEMA 17 Ball Lead Screw Stepper Motor 570mN.M Stepping Motor For Automation Industry 4





Please click the "Get  a quote" button below to tell us your requirements.
