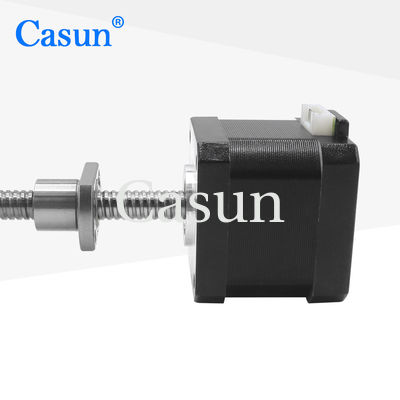

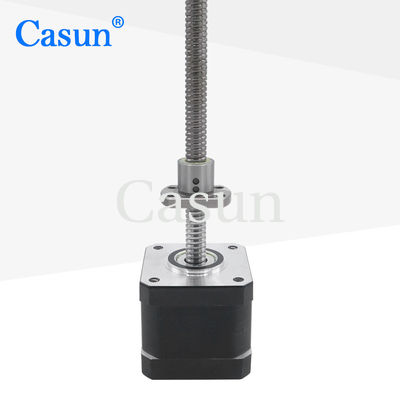

Nema 17 Ball Screw Linear Stepper Motor 450mN.M SFK0802 Step Motor For CNC

Name: Nema 17 Ball Screw Linear Stepper Motor 450mN.M SFK0802 Step Motor For CNC
Brand: Casun
SKU: 42SHD0261-200GTH
Price: 29.98 USD
Availability: InStock
Rating: 4.8 (103 reviews)

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 42SHD0261-200GTH

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $29.98-$34.98

Packaging Details: Carton:38x29xc14m

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                Nema 17 Ball Screw Linear Stepper Motor, SFK0802 Ball Screw Linear Stepper Motor, 450mN.M Ball Screw Step Motor


Color:	Black	Current:	1.68Amp
Weight:	0.3kg	Customized:	The Motor Can Be Designed &manufactured With Customized Request.

Color:	Black
Current:	1.68Amp
Weight:	0.3kg
Customized:	The Motor Can Be Designed &manufactured With Customized Request.

Product Description

Nema17 Ball Screw Linear Stepper Motor 450mN.M SFK0802 Step Motor For CNC

A NEMA 17 stepper motor with a torque rating of 450mN.m (millinewton meters) and a ball screw mechanism is a suitable choice for various applications that require moderate torque and precise linear motion control.

A torque rating of 450mN.m indicates the motor's ability to provide rotational force. This level of torque can handle moderate loads and is commonly used in applications such as small CNC machines, 3D printers, automation equipment, and other systems that require accurate positioning and controlled linear motion.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	42mm
Number of Phase	2 Phase
Rated Current	1.68Amp
Holding Torque	450mN.m
Resistance	0ohm
Inductance	mH
Rotor Inertia	g-cm²
Motor weight	0.32kg
Lead Screw	200mm
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Body Length	Diameter of Screw	Pitch	Length of Screw
20 mm 34 mm 40 mm 48 mm 60 mm	5	2	20-1000 mm
		8
	6.35	1.27
		3.175
		6.35
	6.5	3
		6.35
	8	1
		2
		4
		8
		12

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Nema 17 Ball Screw Linear Stepper Motor 450mN.M SFK0802 Step Motor For CNC 1

Please click the "Get a quote" button below to tell us your requirements.
