products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Captive Stepper Motor
Created with Pixso.

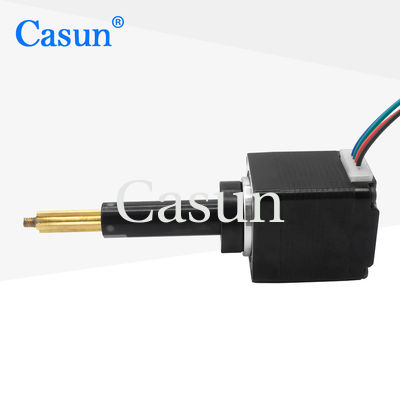

0.01mm / Step 0.42A NEMA 11 Captive Stepper Motor For Medical Equipment

name

0.01mm / Step 0.42A NEMA 11 Captive Stepper Motor For Medical Equipment

Brand Name: Casun
Model Number: 28SHD4201-C38T
MOQ: 1PC
Price: $26-$31
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Minimal Thrust:
1kg At 300pps
Current:
0.42A
Motor Length:
32mm
Travel:
22mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:38x29xc14m
Highlight:

NEMA 11 Captive Stepper Motor

,

0.42A Captive Stepper Motor

Product Description

Captive Stepper Motor 0.01mm/Step 0.42A NEMA 11 For Medical Equipment

The NEMA 11 linear pushrod stepper motor achieves linear displacement through the pushrod transmission mechanism, which can accurately control the position.

It has a smaller overall size and is suitable for applications with limited space.



Features:

  • Bipolar or unipolar versions available

  • Dealers wanted!

  • Specializing in tailor-made services is our expertise

  • We are fully committed to professional research, development, and manufacturing

  • Customizations on request



Appearance



0.01mm / Step 0.42A NEMA 11 Captive Stepper Motor For Medical Equipment 0

Dimensions

0.01mm / Step 0.42A NEMA 11 Captive Stepper Motor For Medical Equipment 1



Motor Specifications

Step Angel

1.8 °

Fram Size

28 mm

Number of Phase

2 Phase

Rated Current

0.42 A

minimal thrust

1kg at 300pps

Resistance

9.2 ohm

Inductance

5.7 mH

Rotor Inertia

9 g.cm²

Motor weight

0.2 kg

Number of leads

4

Connection

Bipolar









Torque Curves











Submodels

Body Length Diameter of Screw Pitch Length of Screw
27 mm

30 mm

38 mm

42 mm

47 mm		 3.5 0.6096 20-1000 mm
1.2192
2.44
4
4 2
4.76 5.08
5 2
4
8
5.08
5.56 4.8768





0.01mm / Step 0.42A NEMA 11 Captive Stepper Motor For Medical Equipment 2

Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.
