Home > products > Ball Screw Stepper Motor > Nema 11 Ball Screw Stepper Motor 320mN.M Ball Srew Linear Stepper Motor For CNC

Nema 11 Ball Screw Stepper Motor 320mN.M Ball Srew Linear Stepper Motor For CNC

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 28SHD4507-109GTH

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $9.98-$13.98

Packaging Details: Carton:38x29xc14m

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price
Product Details
Highlight:

Nema 11 Ball Screw Stepper Motor

,

320mN.M Ball Screw Stepper Motor

,

Ball Screw Stepper Motor For CNC

Color:
Black
Current:
1.7Amp
Weight:
0.23kg
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Color:
Black
Current:
1.7Amp
Weight:
0.23kg
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

Nema11 ball screw stepper motors nema11 320mN.m ball srew linear stepper motor for CNC



Ball screw stepper motors offer several advantages, including:

  1. High precision: The ball screw mechanism reduces backlash and provides accurate positioning, making them suitable for applications that require precise movements.

  2. High efficiency: The ball screw design minimizes friction, resulting in efficient power transmission and reduced energy consumption.

  3. Compact size: NEMA 11 motors are small and lightweight, making them ideal for applications with limited space.

  4. Cost-effective: Ball screw stepper motors offer a good balance between performance and cost, making them a popular choice for various applications.


Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

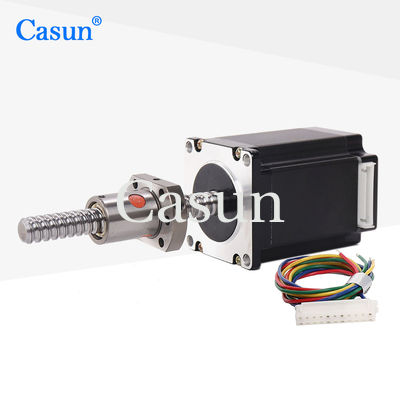

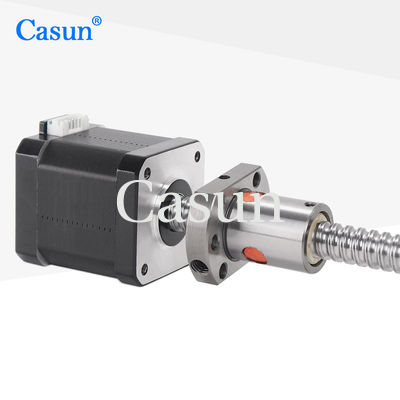

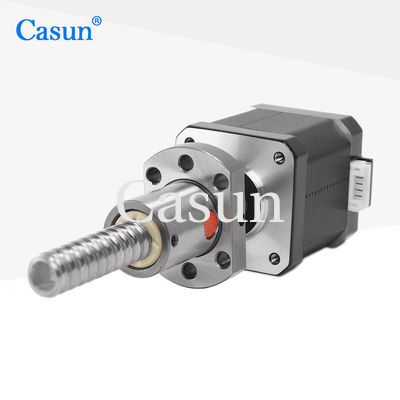

Nema 11 Ball Screw Stepper Motor 320mN.M Ball Srew Linear Stepper Motor For CNC 0







Motor Specifications

More information please contact with the customer service.

Step Angel



1.8 °

Fram Size



28mm

Number of Phase



2 Phase

Rated Current



1.7Amp

Holding Torque



120mN.m

Resistance



0ohm

Inductance



mH

Rotor Inertia



g-cm²

Motor weight



0.26kg

Lead Screw



109mm

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N







Torque Curves





Submodels



Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Body Length Diameter of Screw Pitch Length of Screw
20 mm

34 mm

40 mm

48 mm

60 mm


5 2 20-1000 mm
8
6.35 1.27
3.175
6.35
6.5 3
6.35
8 1
2
4
8
12



Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

Nema 11 Ball Screw Stepper Motor 320mN.M Ball Srew Linear Stepper Motor For CNC 1 Nema 11 Ball Screw Stepper Motor 320mN.M Ball Srew Linear Stepper Motor For CNC 2 Nema 11 Ball Screw Stepper Motor 320mN.M Ball Srew Linear Stepper Motor For CNC 3 Nema 11 Ball Screw Stepper Motor 320mN.M Ball Srew Linear Stepper Motor For CNC 4





Please click the "Get  a quote" button below to tell us your requirements.
