1.8 Degree 2 Phase Stepper Motor For Engraving Machinery 17.5N.M Hybrid NEMA 23

1.8 Degree 2 Phase Stepper Motor For Engraving Machinery 17.5N.M Hybrid NEMA 23

Brand Name:	Casun
Model Number:	57SHD0801-20BH
MOQ:	1PC
Price:	$3.14-$5
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Step Angel:

1.8°

Holding Torque:

1750mN.m

Current:

0.8A

Motor Length:

76mm

Shaft:

Milling Flat Shaft 20mm Length

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

NEMA 23 2 Phase Stepper Motor

17.5N.M 2 Phase Stepper Motor

Product Description

1.8 Degree 2 Phase Stepper Motor Suitable For Engraving Machinery 17.5N.M Hybrid NEMA 23

The control of NEMA 23 stepper motors is relatively simple, and precise rotation can be achieved by providing specific pulse signals.

3D printers, CNC machine tools and utomated production lines.

Features:

High torque and high precision
For high-tech industry and electronic industry equipment
Dealers are actively sought after!
Each of our stepper motor models is suitable for a wide range of applications
Having operated in China for 12 years, we have served over 800 customers

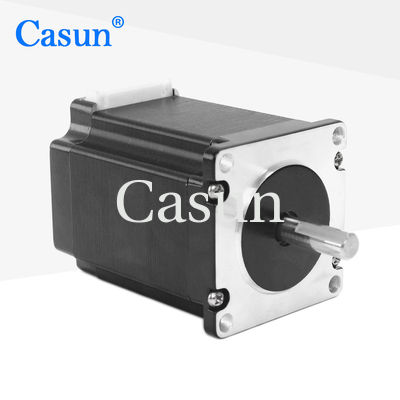

Appearance

1.8 Degree 2 Phase Stepper Motor For Engraving Machinery 17.5N.M Hybrid NEMA 23 0

Dimensions

1.8 Degree 2 Phase Stepper Motor For Engraving Machinery 17.5N.M Hybrid NEMA 23 1

Motor Specifications

Step Angel	1.8 °
Fram Size	57 mm
Number of Phase	2 Phase
Rated Current	0.8 A
Holding Torque	1750 mN.m
Resistance	12 ohm
Inductance	48 mH
Rotor Inertia	460 g-cm²
Motor weight	1 kg
Number of leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
57SHD4013-21B	0.6N.m	1.8°	41mm	D Shaft-21mm	1.0A
57SHD4415-21B	1.1N.m	1.8°	54mm	D Shaft-21mm	3.0A
57SHD4816-21B	2.0N.m	1.8°	76mm	D Shaft-21mm	3.0A
57SHD4913-21B	2.5N.m	1.8°	83mm	D Shaft-21mm	3.0A
57SHD4934-20B	3.0N.m	1.8°	100mm	D Shaft-20mm	3.0A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
