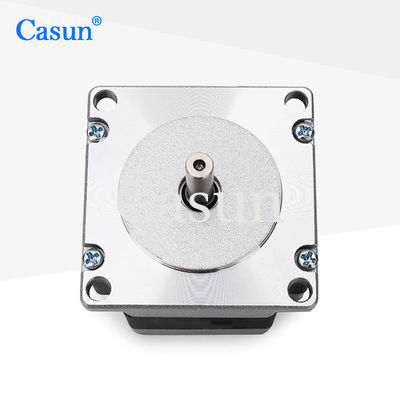

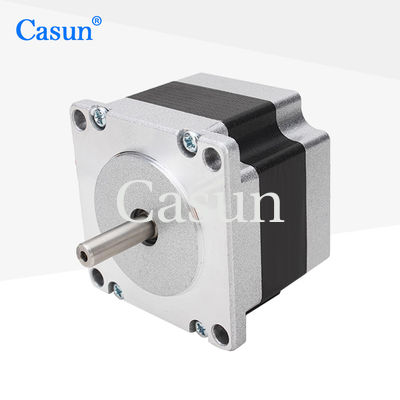

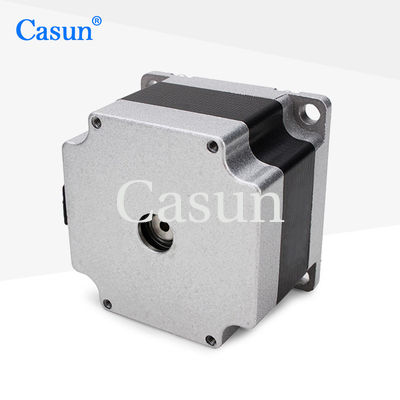

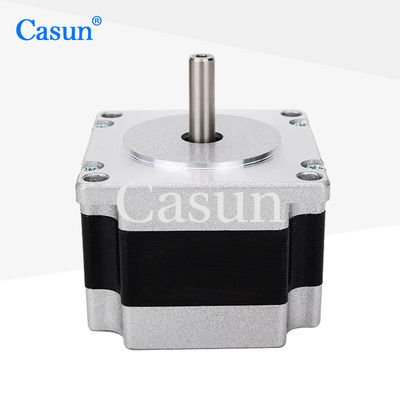

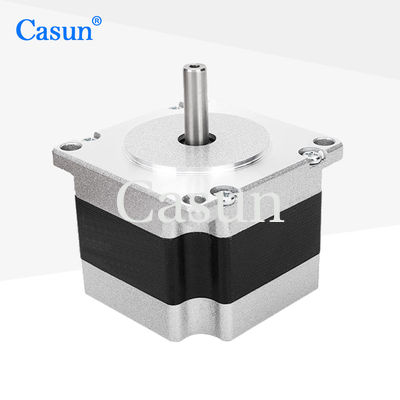

Nema 23 4 Wires Stepper Motor Bipolar 0.35Nm 0.4A 7.2V 57x57x41mm

name

Nema 23 4 Wires Stepper Motor Bipolar 0.35Nm 0.4A 7.2V 57x57x41mm

Brand Name: Casun
Model Number: 57SHD0002-25M
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
0.35N.m
Current:
0.4A
Motor Length:
41mm
Shaft:
Round Shaft 25mm Length
Shaft Diameter:
6.35
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

4 Wires Stepper Motor Bipolar

,

0.35Nm 4 Wires Stepper Motor

Product Description

Nema 23 Bipolar 0.35Nm 0.4A 7.2V 57x57x41mm 4 Wires Stepper Motor



The NEMA 23 stepper motor has high positioning accuracy, typically reaching the level of several micrometers.

NEMA 23 stepper motors have a wide range of applicability and can be used in many different application fields.



Features:

  • High torque and high precision

  • Offer custom services

  • We are experts in drivetrain solutions

  • We provide a ten-year warranty to ensure confident purchases

  • Our engineers will contact you within 48 hours to offer the optimal solution





Motor Specifications



Step Angel

1.8 °

Fram Size

57 mm

Number of Phase

2 Phase

Rated Current

0.4 A

Holding Torque

0.35 N.m

Resistance

18 ohm

Inductance

35 mH

Rotor Inertia

135 g-cm²

Motor weight

0.42 kg

Number of leads

4

Connection

Bipolar

Appearance

Nema 23 4 Wires Stepper Motor Bipolar 0.35Nm 0.4A 7.2V 57x57x41mm 0

Dimensions

Nema 23 4 Wires Stepper Motor Bipolar 0.35Nm 0.4A 7.2V 57x57x41mm 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A



Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
Nema 23 4 Wires Stepper Motor Bipolar 0.35Nm 0.4A 7.2V 57x57x41mm 2 Nema 23 4 Wires Stepper Motor Bipolar 0.35Nm 0.4A 7.2V 57x57x41mm 3 Nema 23 4 Wires Stepper Motor Bipolar 0.35Nm 0.4A 7.2V 57x57x41mm 4 Nema 23 4 Wires Stepper Motor Bipolar 0.35Nm 0.4A 7.2V 57x57x41mm 5



Please click the "Get a quote" button below to tell us your requirements.
