76mm NEMA 23 Stepper Motor With Certification Power Supplies Electrical Dc Motor

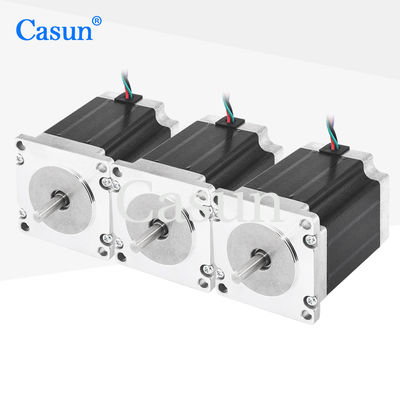

  • 76mm NEMA 23 Stepper Motor With Certification Power Supplies Electrical Dc Motor

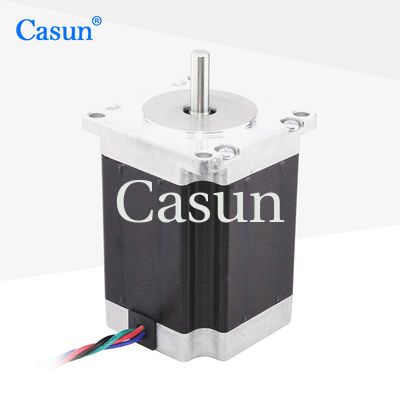

  • 76mm NEMA 23 Stepper Motor With Certification Power Supplies Electrical Dc Motor

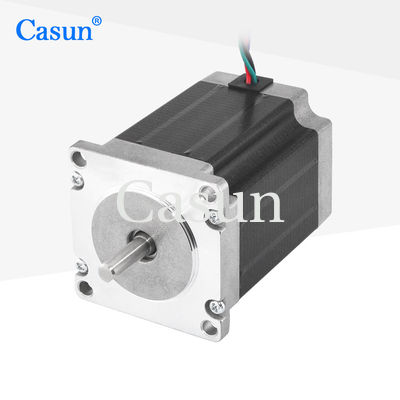

  • 76mm NEMA 23 Stepper Motor With Certification Power Supplies Electrical Dc Motor

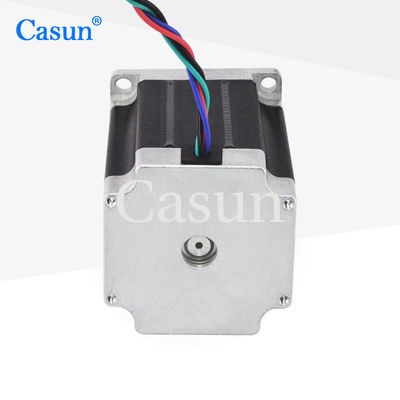

  • 76mm NEMA 23 Stepper Motor With Certification Power Supplies Electrical Dc Motor
  • 76mm NEMA 23 Stepper Motor With Certification Power Supplies Electrical Dc Motor
  • 76mm NEMA 23 Stepper Motor With Certification Power Supplies Electrical Dc Motor

76mm NEMA 23 Stepper Motor With Certification Power Supplies Electrical Dc Motor

Place of Origin CHINA
Brand Name Casun
Certification CE,ROHS,ISO
Model Number 57SHD4809-20B
Product Details
Step Angel:
1.8°
Holding Torque:
2.3N.m
Current:
3.1A
Motor Length:
76mm
Shaft:
Milling Flat Shaft 20mm Length
Shaft Diameter:
6.35mm
High Light:

76mm NEMA 23 Stepper Motor

,

Electrical NEMA 23 Stepper Motor

Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
$3.14-$5
Packaging Details
Carton:36x29x14cm
Delivery Time
7-15 days
Payment Terms
D/A, T/T, L/C, D/P
Supply Ability
40000+PCS+Month
Product Description

NEMA 23 Stepper Motor With Certification Power Supplies Electrical Dc Motor

Capable of withstanding high loads, high temperature environments, and significant vibrations, suitable for many industrial and commercial applications.

The stepper motor has a fast response speed and can achieve stable operation in a short period of time.



Features:

  • High torque and high precision

  • Each model of our stepper motor is suitable for various applications

  • Our services are customizable and we welcome contract manufacturing

  • We actively pursue dealers!

  • Your purchase includes a ten-year warranty, ensuring confidence





Motor Specifications



Step Angel

1.8 °

Fram Size

57 mm

Number of Phase

2 Phase

Rated Current

3.1 A

Holding Torque

2.3 N.m

Resistance

1.4 ohm

Inductance

5.0 mH

Rotor Inertia

460 g-cm²

Motor weight1

1 kg

Number of leads

4

Connection

Bipolar

Appearance

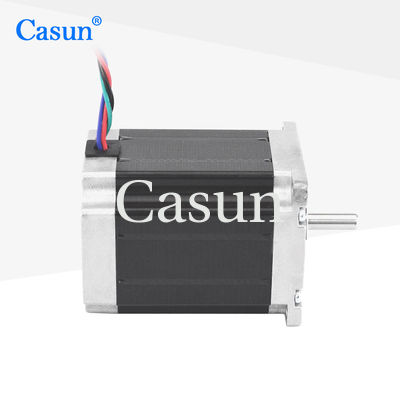

76mm NEMA 23 Stepper Motor With Certification Power Supplies Electrical Dc Motor 0

Dimensions

76mm NEMA 23 Stepper Motor With Certification Power Supplies Electrical Dc Motor 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A



Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
