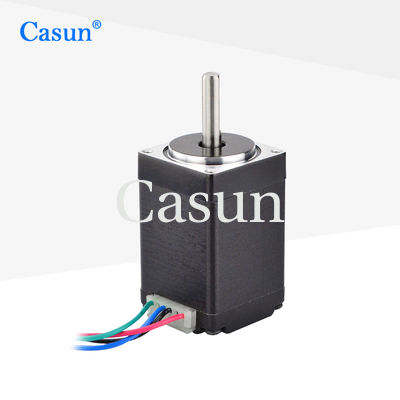

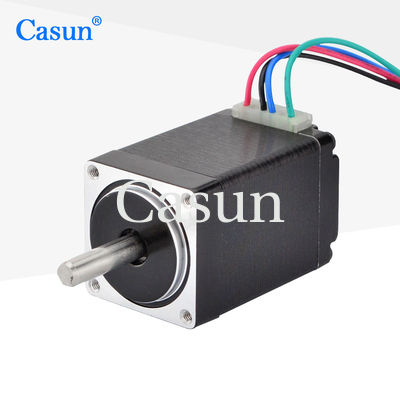

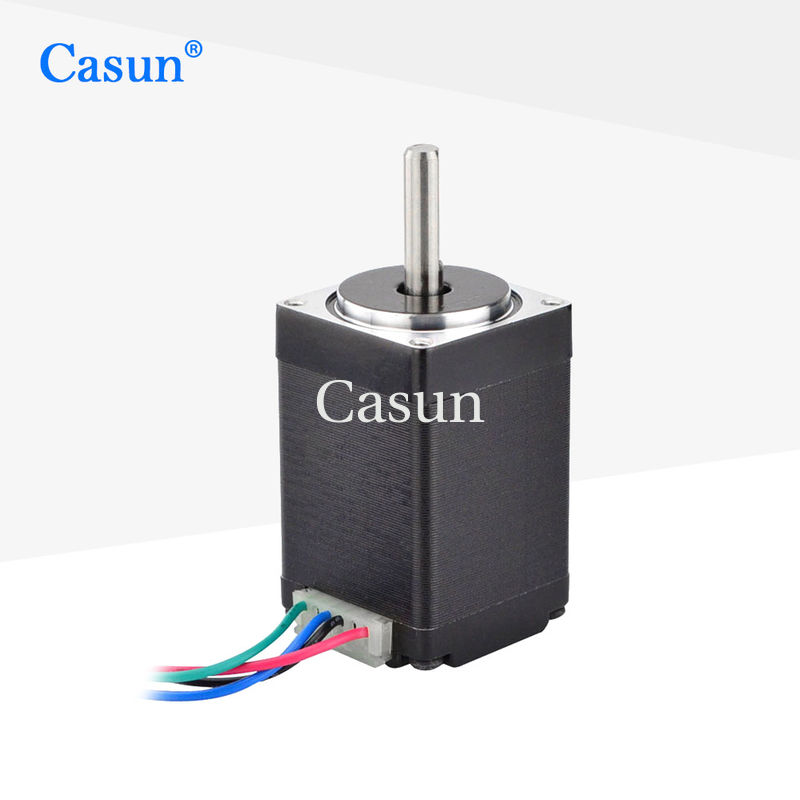

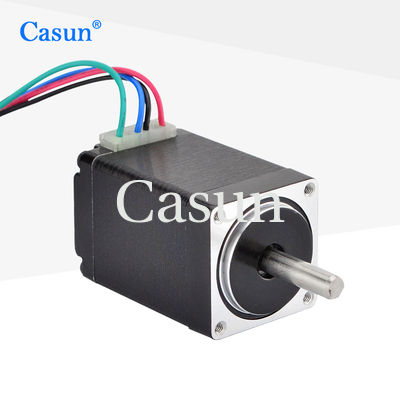

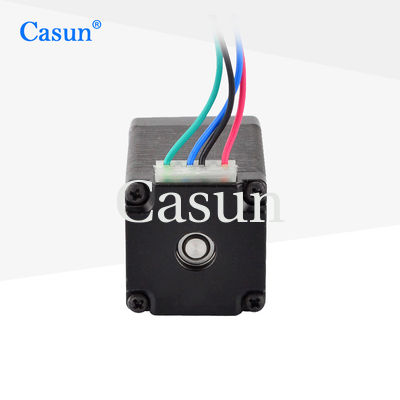

Micro NEMA 11 Stepper Motor 0.67A 2 Phase Wiring For Revolving Light

Micro NEMA 11 Stepper Motor 0.67A 2 Phase Wiring For Revolving Light

Brand Name:	Casun
Model Number:	28SHD4401-20B
MOQ:	1PC
Price:	$6.49-$9.5
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROSH,ISO

Step Angel:

1.8°

Holding Torque:

95mN.m

Current:

0.67A

Motor Length:

44.6mm

Shaft:

D Shaft 20mm Length

Color:

Silver

Voltage:

5.56V

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

Micro NEMA 11 Stepper Motor

2 Phase NEMA 11 Stepper Motor

Product Description

Micro NEMA 11 Stepper Motor 0.67A 2 Phase Wiring For Revolving Light

Hot Sale Micro NEMA 11 Stepper Motor 0.67A Stepping Motors 2 Phase Wiring For Revolving Light

28×28×44mm 0.67A 4.56V 2 Phase Wiring 1.8 Degree Stepper Motor Nema 11 Micro Stepping Motor

The 28mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution. Choose a baseline version or request your own customized configuration.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Appearance

Dimensions

Motor Specifications

Parameter	Value
Step Angle	1.8°
Frame Size	28 mm
Number of Phase	2 Phase
Rated Current	0.67A
Holding Torque	95 mN.m
Resistance	6.8 ohm
Inductance	4.9 mH
Rotor Inertia	9 g·cm²
Motor Weight	0.16 kg
Number of Leads	4
Connection	Bipolar

Torque Curves

Custom Motor Solutions

If our standard motor cannot meet your needs, we can customize the motor according to your requirements.

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Available Options

Encoder Brake Gearbox Connector
