0.3A High Accurate 55mN.M Nema 11 Stepper Motor For Coordinate Measuring Instrument

0.3A High Accurate 55mN.M Nema 11 Stepper Motor For Coordinate Measuring Instrument

Brand Name:	Casun
Model Number:	28SHD4217-15B
MOQ:	1PC
Price:	$7-$14
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Step Angel:

1.8°

Holding Torque:

55mN.m

Current:

0.42A

Motor Length:

32mm

Shaft:

Milling Flat Shaft 20mm Length

Voltage:

Weight:

0.12KG

Certifications:

CE ISO ROHS

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

High Accurate Nema 11 Stepper Motor

9V Nema 11 Stepper Motor

Product Description

0.3A High Accurate 55mN.M Nema 11 Stepper Motor For Coordinate Measuring Instrument

0.3A Highly Accurate 55mN.M Casun Nema 11 Stepper Motor 9V Micro Stepping Motor designed specifically for coordinate measuring instruments. This 2 Phase 1.8 Degree NEMA 11 Micro Stepper Motor measures 28×28×32mm and delivers reliable performance for precision applications.

The 28mm 9V Hybrid Stepper Motor Series offers powerful holding torque in a compact size. When used with a microstepping driver, it reduces vibration and achieves higher step resolution. Available in baseline versions or customized configurations to meet specific requirements.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations available on request

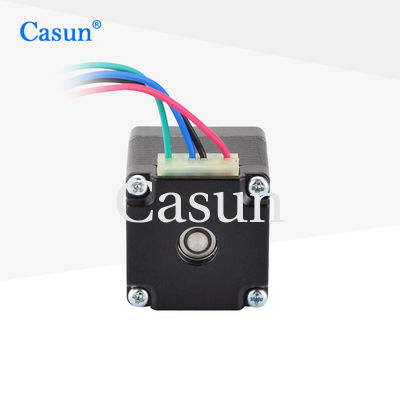

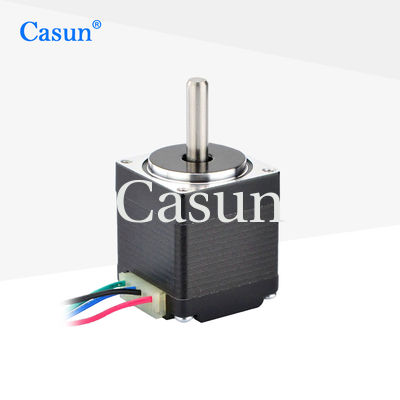

Product Appearance

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	28 mm
Number of Phase	2 Phase
Rated Current	3 A
Holding Torque	55 mN.m
Resistance	30 ohm
Inductance	20 mH
Rotor Inertia	9 g-cm²
Motor Weight	0.12 kg
Number of Leads	4
Connection	Bipolar

Customization Options

If our standard motor cannot meet your requirements, we can customize the motor according to your specific needs. Customized content includes but is not limited to:

Encoder

Brake

Gearbox

Connector

Additional customization options include special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.

Frequently Asked Questions

Who are we?

We are based in Guangdong, China, established in 2011. Our market distribution includes Domestic Market (63.00%), Western Europe (12.00%), North America (9.00%), Eastern Asia (8.00%), Northern Europe (2.00%), and other global markets. Our team consists of 51-100 professionals.

How can we guarantee quality?

We always provide pre-production samples before mass production and conduct final inspection before shipment to ensure product quality.

What can you buy from us?

Stepper Motor, BLDC Motor

Why should you buy from us instead of other suppliers?

We specialize in producing and selling stepper motors for more than 11 years, bringing extensive expertise and reliability to our products.

What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery
Accepted Payment Currency: USD, CNY
Accepted Payment Type: T/T, L/C, D/P D/A, PayPal
Languages Spoken: English, Chinese, Japanese

Please click the "Get a quote" button below to tell us your requirements.
