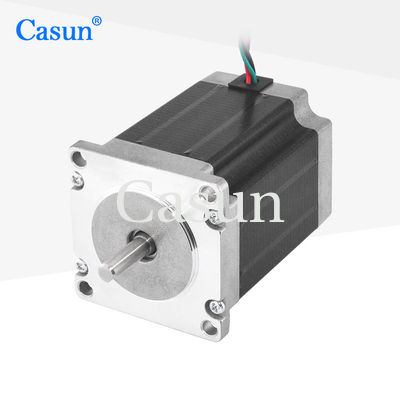

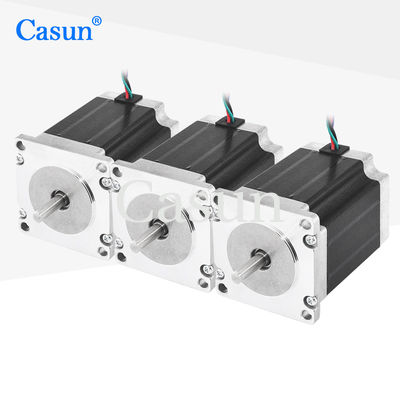

1.32N.M NEMA 23 Steper Motor 57x57x76mm 1.0A For Knitting Machine

name

1.32N.M NEMA 23 Steper Motor 57x57x76mm 1.0A For Knitting Machine

Brand Name: Casun
Model Number: 57SHD4824-20B
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
1.32N.m
Current:
1.0A
Motor Length:
76mm
Shaft:
Milling Flat Shaft 20mm Length
Shaft Diameter:
6.35mm
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

1.32N.M NEMA 23 Steper Motor

,

NEMA 23 Steper Motor 1.0A

,

Hybrid Steper Motor For Knitting Machine

Product Description

1.32N.M NEMA 23 Steper Motors 57x57x76mm Special Offer 1.0A For Knitting Machine

The NEMA23 stepper motor can drive equipment such as looms and spinning machines, effectively controlling their speed and load.
By controlling the current and motion plan, production efficiency and quality can be improved.



Features:

  • High torque and high precision

  • We are actively seeking dealers

  • We provide customized services and are open to contract manufacturing

  • With 12 years of operation in China, we have served over 800 customers

  • Our engineers will contact you within 48 hours to offer the best solution





Motor Specifications



Step Angel

1.8 °

Fram Size

57 mm

Number of Phase

2 Phase

Rated Current

1.0 A

Holding Torque

1.32 N.m

Resistance

6.5 ohm

Inductance

20 mH

Rotor Inertia

460 g-cm²

Motor weight1

1 kg

Number of leads

4

Connection

Bipolar

Appearance

1.32N.M NEMA 23 Steper Motor 57x57x76mm 1.0A For Knitting Machine 0

Dimensions

1.32N.M NEMA 23 Steper Motor 57x57x76mm 1.0A For Knitting Machine 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A



Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
1.32N.M NEMA 23 Steper Motor 57x57x76mm 1.0A For Knitting Machine 2 1.32N.M NEMA 23 Steper Motor 57x57x76mm 1.0A For Knitting Machine 3 1.32N.M NEMA 23 Steper Motor 57x57x76mm 1.0A For Knitting Machine 4 1.32N.M NEMA 23 Steper Motor 57x57x76mm 1.0A For Knitting Machine 5



Please click the "Get a quote" button below to tell us your requirements.
