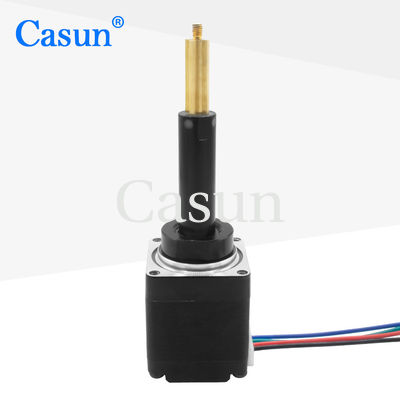

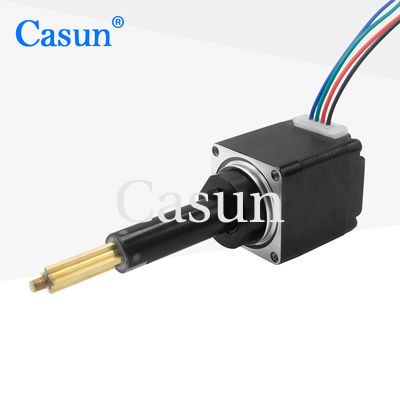

0.24Amp Micro Stepper Motor Lead Screw Linear Actuator Tr3.5x4 For Beauty Equipment

0.24Amp Micro Stepper Motor Lead Screw Linear Actuator Tr3.5x4 For Beauty Equipment

Brand Name:	Casun
Model Number:	B20SHD4353-C32L
MOQ:	1PC
Price:	$22.94 - 32.94
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Color:

Black

Current:

0.24Amp

Holding Torque:

0.5kg At 600pps

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29xc14m

Highlight:

0.24Amp Micro Stepper Motor

Micro Stepper Motor For Beauty Equipment

Product Description

0.24Amp Micro Stepper Motor Lead Screw Linear Actuator Tr3.5x4 For Beauty Equipment

A micro stepper motor with a lead screw is often used to create a linear actuator. It provides precise and controlled linear motion by converting the rotary motion of the stepper motor into linear motion through the lead screw mechanism.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Specification	Value
Step Angle	1.8°
Frame Size	20mm
Number of Phase	2 Phase
Rated Current	0.24Amp
Holding Torque	0.5kg at 600pps
Resistance	11.5ohm
Inductance	3.50mH
Rotor Inertia	6g-cm²
Motor Weight	0.2kg
Lead	35mm
Connection	Bipolar

Operating Specifications

Parameter	Specification
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min
Shaft Radial Play	0.02Max. (450g-load)
Shaft Axial Play	0.08Max. (450g-load)
Max. Radial Force	28N (20mm from the flange)
Max. Axial Force	10N

Available Models

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Custom Solutions Available

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Available Options

Encoder

Brake

Gearbox

Shaft
